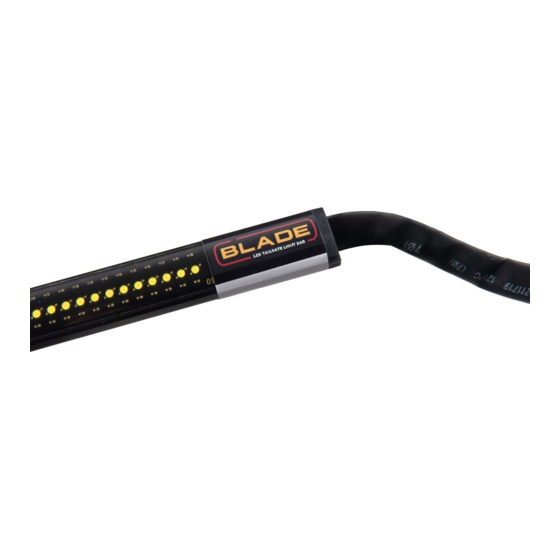

Supplementary Blade Wiring Instructions

2019 Silverado LTZ Package with LED Tail Lamps

Congratulations on your purchase of a high quality PUTCO product. Should you need any application

or technical assistance, feel free to call us at: 1-800-247-3974

Monday-Friday 8:00 a.m. - 5:00 p.m. (Central Standard Time)

1. Remove tail gate to make mounting Blade easier

2. Light bar brackets need to be 1/4" to 5/16" above metal "ridge"

to allow enough clearance between tail gate and lightbar

•

Use light bar bracket to achieve proper gap between

ridge and light bar (Figure 1).

Blade lightbar

1/4" to 5/16"

gap

PT — 11/15/18

−

"Ridge"

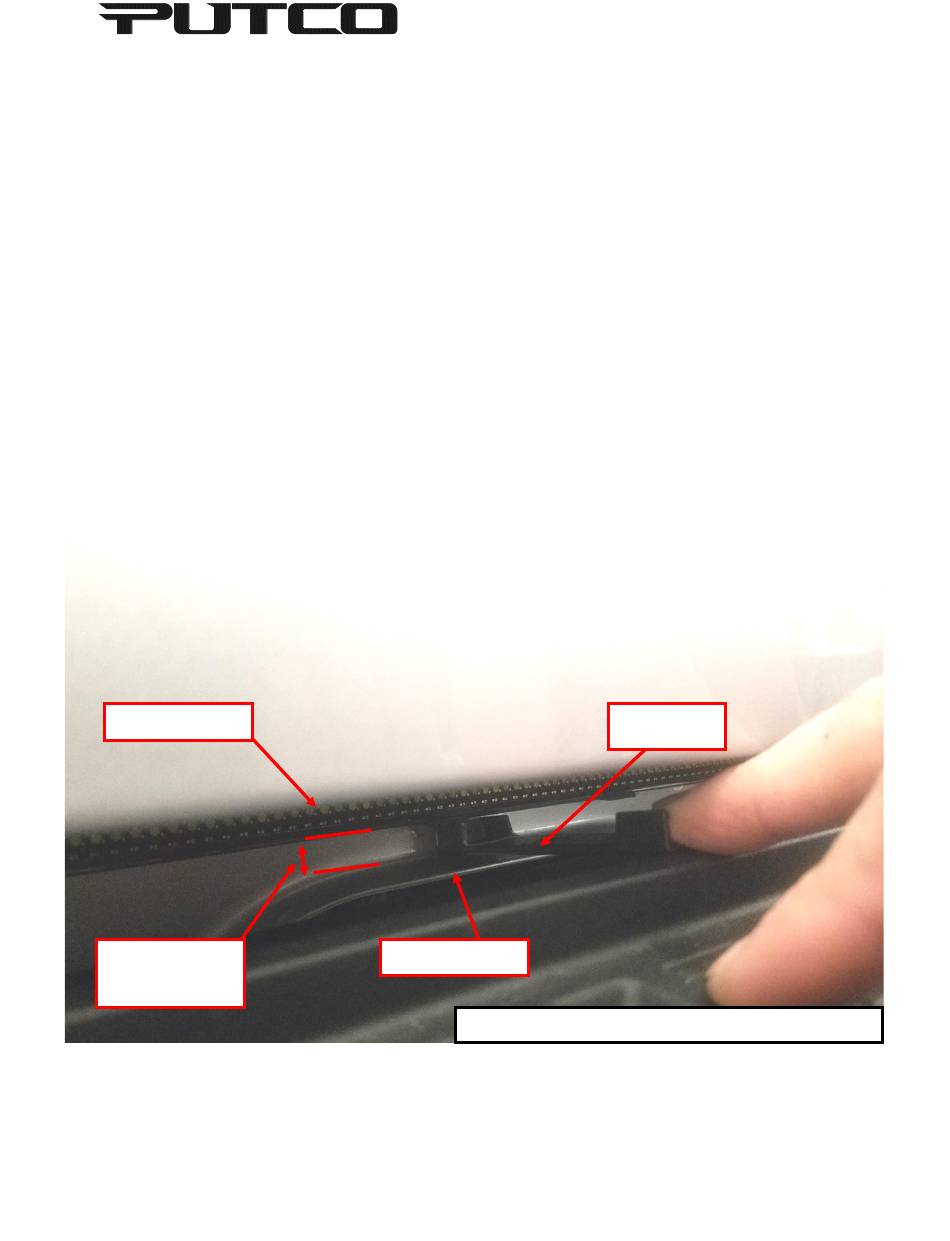

Figure 1. Locating light bar with bracket

Page 1 of 3

92009-60 Supplement

Additional Tools Needed:

T15 Torx Driver

Wire Crimpers

Zip-Ties

Bracket

92009-60 Supplement

Table of Contents

Do you have a question about the 92009-60 and is the answer not in the manual?

Page 1 Supplementary Blade Wiring Instructions 2019 Silverado LTZ Package with LED Tail Lamps Congratulations on your purchase of a high quality PUTCO product. Should you need any application or technical assistance, feel free to call us at: 1-800-247-3974 Monday-Friday 8:00 a.m. - 5:00 p.m. (Central Standard Time)
Page 2 92009-60 Supplement 3. Remove tail lights by removing (2) T15 torx screws inside bed. Pull tail lamps straight out to release clips. Disconnect wiring harness by pushing red lever away from light housing and then depressing black clip. Twist out halogen back-up bulbs 4.
Page 3 92009-60 Supplement 7. Test functionality of Blade before securing wires with zip-ties, reinstalling tail lights, and reinstalling tail gate. • Double-check Scotchlock connections if Blade is only partially functional (i.e. right turn sig- nal does not function, but all other functions are present).
