INSTRUCTION GUIDE
Congratulations on your purchase of a high quality PUTCO
you need any application or technical assistance, feel free to call us at:
Monday-Friday 8:00am - 5:00pm (Central Standard Time)
Contact your PUTCO
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION
AND CHECK TO SEE THAT ALL PARTS ARE INCLUDED
REQUIRED TOOLS
3/16" HEX KEY
5MM HEX KEY
FORD RANGER
1-800-247-3974
dealer for other quality accessories.
®
T30 & T40 TORX DRIVER
10MM WRENCH
CONTENT LIST
`
DESCRIPTION

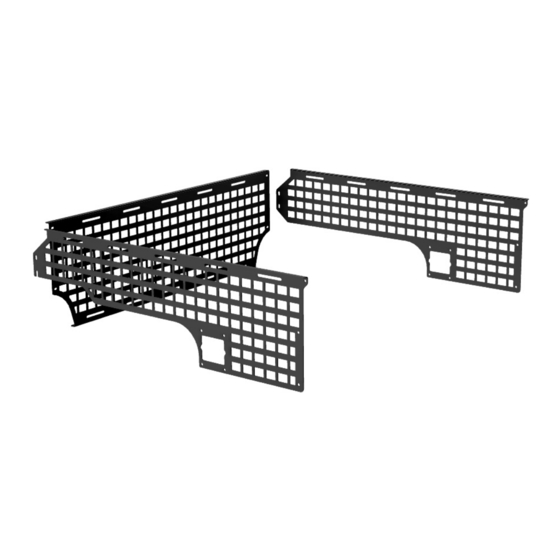

Molle Front Plate
Molle Side Plates
Front Brackets
Middle Brackets
Rear Brackets
Rubber Feet
Jam Nuts – 10mm Hex, M6 Threads
M6 Bolts – 20mm Long – T30 Torx Head Drive
M8 Bolts – 25mm Long – 5mm Allen Head Drive
5/16-18 Bolts – 2-3/8" Long – 3/16" Allen Hd Drive
Well Nuts – 5/8" Outer Diameter
Spacer – 1-5/8" Long
product. Should
®
QT Y
1955XXI
1
2
2
2
2
2
2
16
8
2
2
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PUTCO MOLLE Panels
Summary of Contents for PUTCO MOLLE Panels
- Page 1 INSTRUCTION GUIDE FORD RANGER Congratulations on your purchase of a high quality PUTCO product. Should ® you need any application or technical assistance, feel free to call us at: 1-800-247-3974 Monday-Friday 8:00am - 5:00pm (Central Standard Time) Contact your PUTCO dealer for other quality accessories.
- Page 2 MOLLE Panels Instruction Guide INSTALLATION INSTRUCTIONS Begin by unscrewing and removing all factory removable tie-down hooks using a T40 Torx driver. Set these aside, as they will be re-used. Most Ford Ranger beds come equipped with four tie- downs in total.
- Page 3 Well Nut Spacer Bolt Once all the plates are installed in the vehicle, ensure all fasteners are tightened until snug, but do not overtighten. Your new MOLLE Panels are now successfully installed on your vehicle! Completed Ford Ranger Molle Kit 1955XXI...
