INSTRUCTION GUIDE

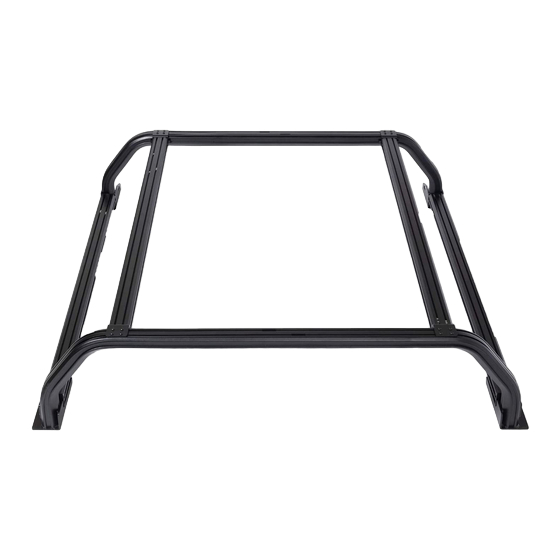

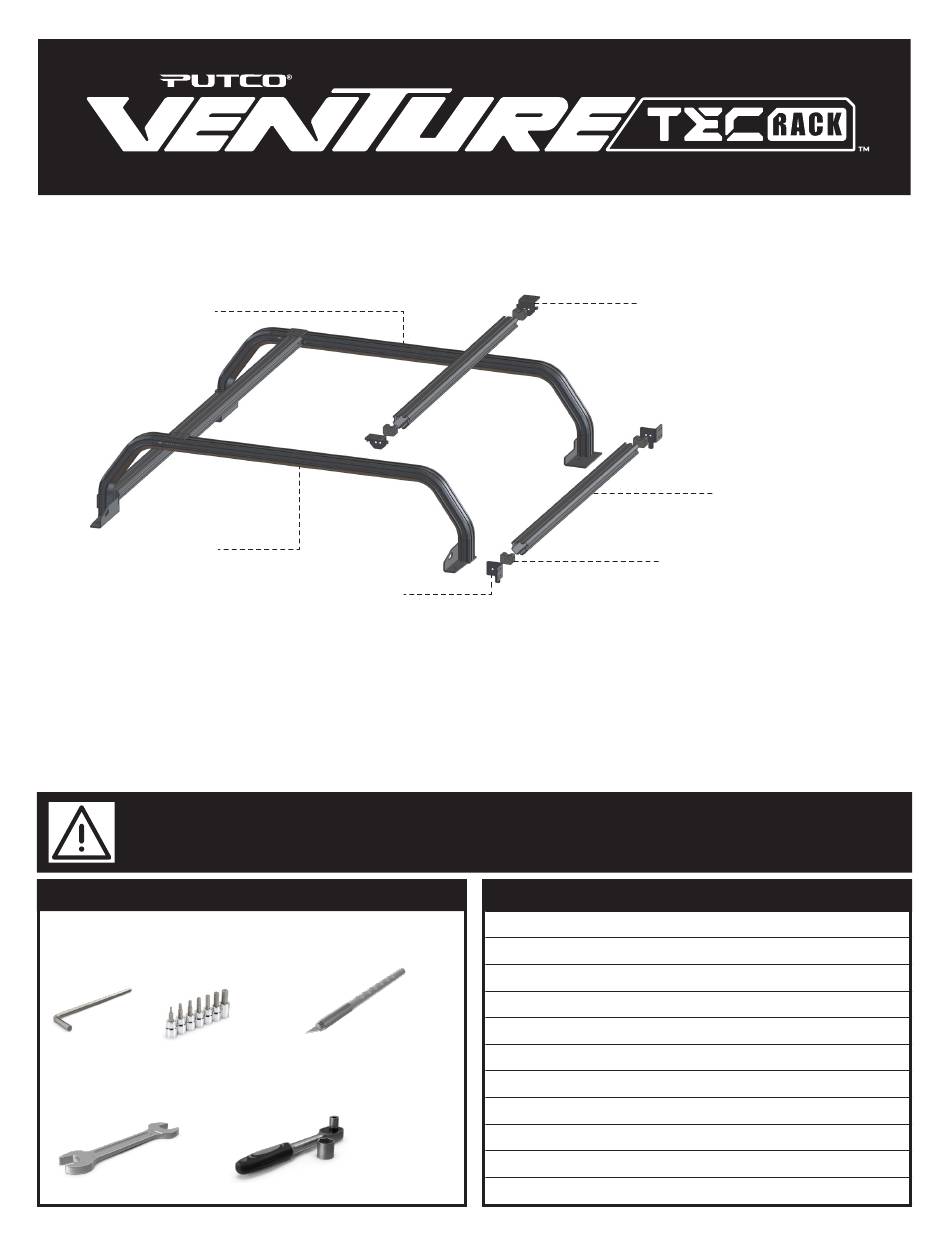

Front Hoop
Rear Hoop
Side Mounting Bracket
Congratulations on your purchase of a high quality PUTCO
you need any application or technical assistance, feel free to call us at:
Monday-Friday 8:00am - 5:00pm (Central Standard Time)
Contact your PUTCO
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION
AND CHECK TO SEE THAT ALL PARTS ARE INCLUDED
REQUIRED TOOLS
HEX KEYS OR SOCKETS
(sizes: 7/32", 3/16", 5/32")
OR
WRENCH OR SOCKET (sizes: 9/16", 7/16")
OR
1-800-247-3974
dealer for other quality accessories.
®
X-ACTO / UTILITY KNIFE
Upper Mounting Bracket
CoreTEC Block Insert
CONTENT LIST
Rear Hoop (etched hoop)
Front Hoop
CoreTEC Block Inserts
Support Tubes
Vehicle Specific Hardware Mounting Kit
Upper Mounting Brackets
Side Mounting Brackets
Rack Hardware Kit
Accessory Mounting Kit
Universal Tent Bracket Kit
Blue Loc Tite
Support Tubes
product. Should
®
QTY
1
1
8
4
1
4
4
1
(Bag #185601)
1
(Bag #185602)
1
(Bag #185603)
1
184XXXI
Advertisement
Table of Contents
Related Manuals for PUTCO Venture TEC Rack
Summary of Contents for PUTCO Venture TEC Rack
- Page 1 Front Hoop Support Tubes Rear Hoop CoreTEC Block Insert Side Mounting Bracket Congratulations on your purchase of a high quality PUTCO product. Should ® you need any application or technical assistance, feel free to call us at: 1-800-247-3974 Monday-Friday 8:00am - 5:00pm (Central Standard Time) Contact your PUTCO dealer for other quality accessories.
- Page 2 Venture TEC Rack Instruction Guide NOTE: Steps 1-5 may not apply to your specific vehicle. Please refer to independent instructions sheet included with your Venture TEC Rack Mounting Kit. Use X-Acto knife/razor blade to cut open stake pocket (if not already exposed).
- Page 3 Venture TEC Rack Instruction Guide Repeat step 7 for the rear hoop. Note: Rear hoop is etched and has tie-down holes in mounting plate. Locate the four support tubes. Slide CoreTec threaded insert into tube. The offset threaded holes should be towards the inside of the rail (Figure 6).
- Page 4 Figure 11b: Diagram showing the correct side tube mounting Your new Venture TEC Rack is now successfully installed on your vehicle! Let the adventures begin! WARNING: • Make sure to periodically check that bolts are tight.
