PUTCO 92100 Installation

2009-2014 Ford F-150 Ford Emblem Installation
Congratulations on your purchase of a high quality PUTCO product. Should you
need any application or technical assistance, feel free to call us at: 1-800-357-9261
Monday-Friday 8:00 a.m. - 5:00 p.m. (Central Standard Time)
Please read all instructions before installation and to check to see that all parts are included.
Description

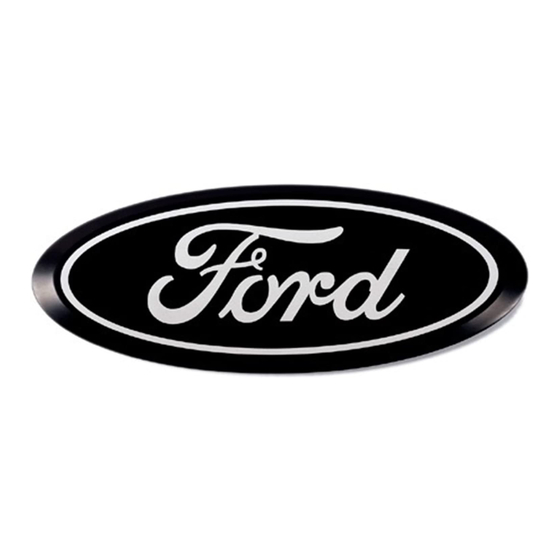

Medium Ford Emblem
Bolt Kit
Medium Ford Emblem
Small Ford Emblem
3M Ford Emblem Tape
Bolt Kit
Alcohol Pad Packet

Front Emblem Installation

1. Remove Emblems from packaging. Check to
see if all parts from above kit contents table are
included.
2. Open hood, Remove two 10mm nuts and that
secure the emblem to the hood. Shown in figure
1.1
3. Unclip the two shafts that held the two 10mm
nuts but gently pushing upwards on them and
pulling the emblem off the grille.
4. Install the provided threaded shafts into the back of the new emblem by hand until
shafts bottom out in emblem.
5. Install the emblem into the grille and finish the installation by installing the
washers and tightening the lock nuts using a 3/8" socket and ratchet. Be careful not
to over tighten the fasteners and damage the surrounding grille
LIMITED 90 DAY WARRANTY
Putco guarantees it's Stainless Steel and Aluminum products against defects in workmanship and material for as long as you
own your vehicle. All painted products have a 90 day warranty on the painted surface. Any defects resulting from faulty
material or workmanship will be warranted by Putco and repaired or replaced at our discretion. Putco assumes no extra labor
costs. Damages caused by freight carriers, improper installation, misuse, collision, or neglect will not be warranted by Putco.
8/25/16- CPH
Contact your PUTCO dealer for other quality accessories.

KIT CONTENTS: 92100

KIT CONTENTS: 92200

Tools Needed:

Qty.
3/8" Ratchet
-
2
10mm and 3/8" Socket
-
1
3/8" Wrench
-
- Needle Nose Pliers
1
- Flat Blade Screwdriver
1
- T-30 Torx Bit (92100 only)
1
1
1

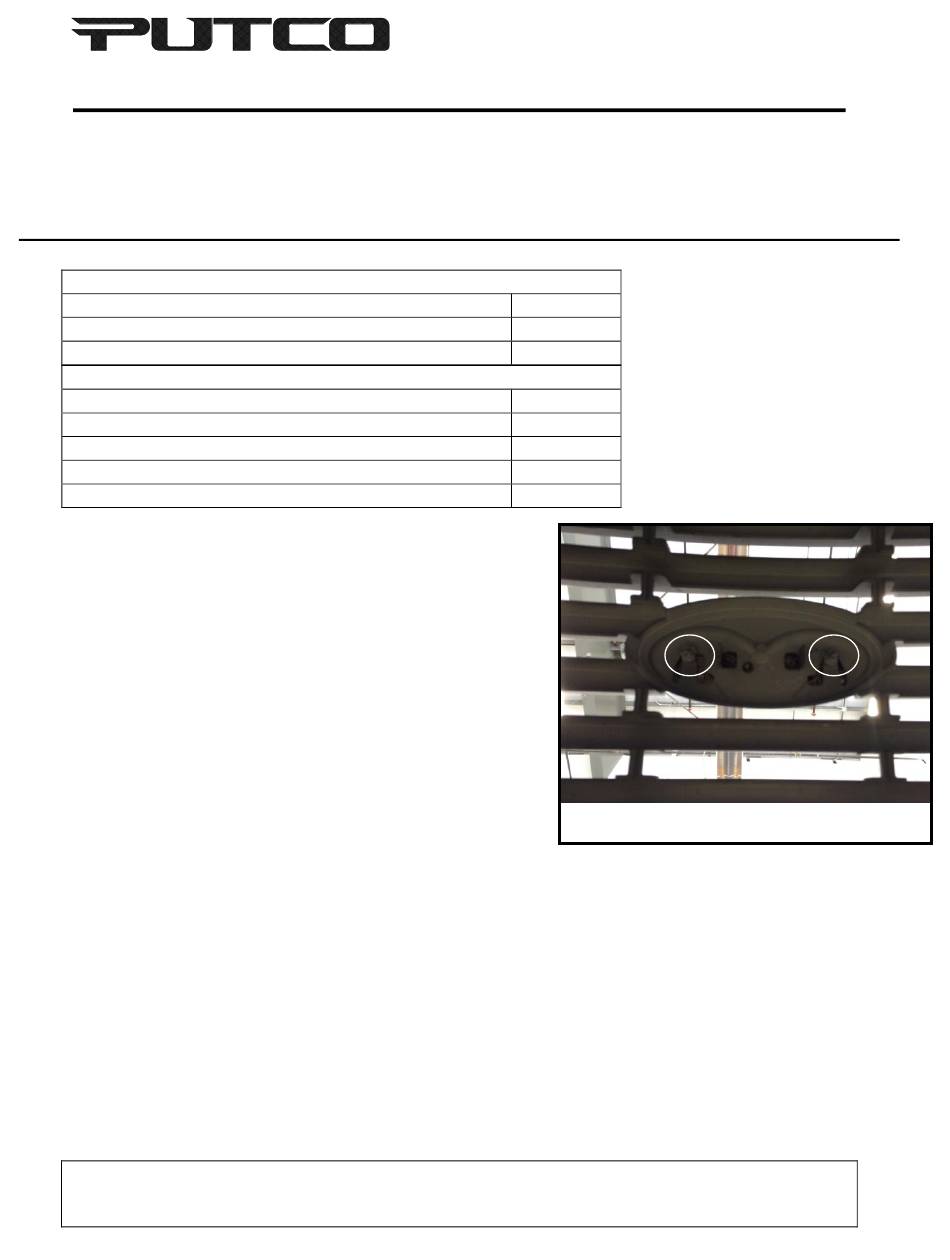

Figure 1.1
92100, 92200
92100I
