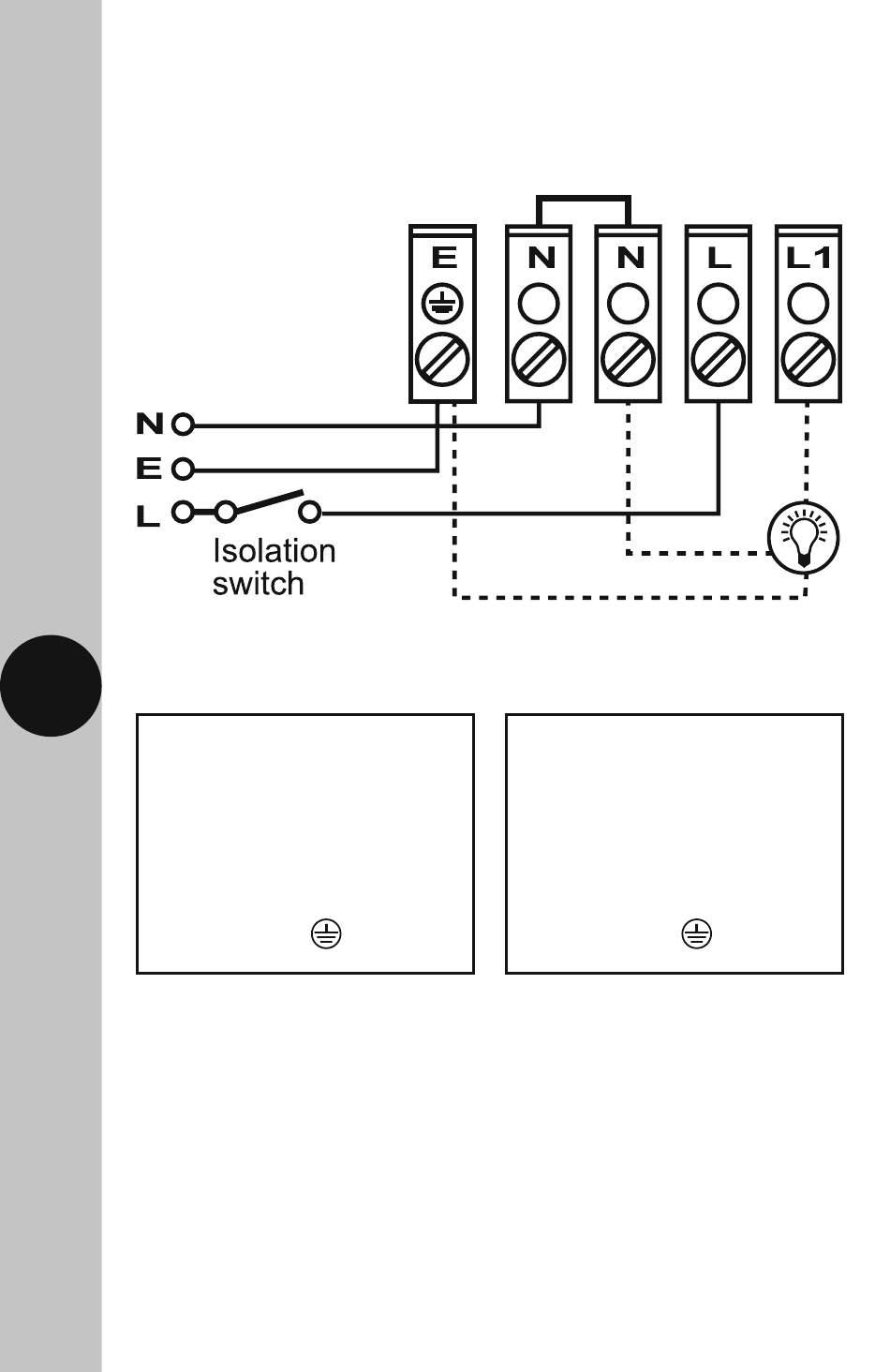

5. Connection Diagram
• Connect the cables to the terminal block as follows;
9 +]
0DLQV 6XSSO\ ,1
3
230V 50Hz Mains Supply IN
Live (Brown or Red) to L
Neutral (Blue or Black) to N
A 'Loop Terminal' is provided
should a 3 core cable be used,
which is marked
Note: The N terminals are common.
.
Load
Switch Live (Brown or Red) to L1
Neutral (Blue or Black) to N
A 'Loop Terminal' is provided
should a 3 core cable be used,
which is marked
.
