NODE COMPONENTS

This section provides an overview of some of the components of the
NODE . Each item will be discussed in further detail later . However, this
section can be helpful in getting acquainted with the different options
available .
3 4
10
9
8 2

Control Buttons

Button – Increases the selected flashing display
1 .
Button – Decreases the selected flashing display
2 .
Button – Selects programming function
3 .
Button – Advances the selected flashing display back to the
4 .
next item
Button – Navigates the selected flashing display back to the
5 .
previous item
Button – Selects the program (A, B, or C)
6 .
3
11 12 14 15 13

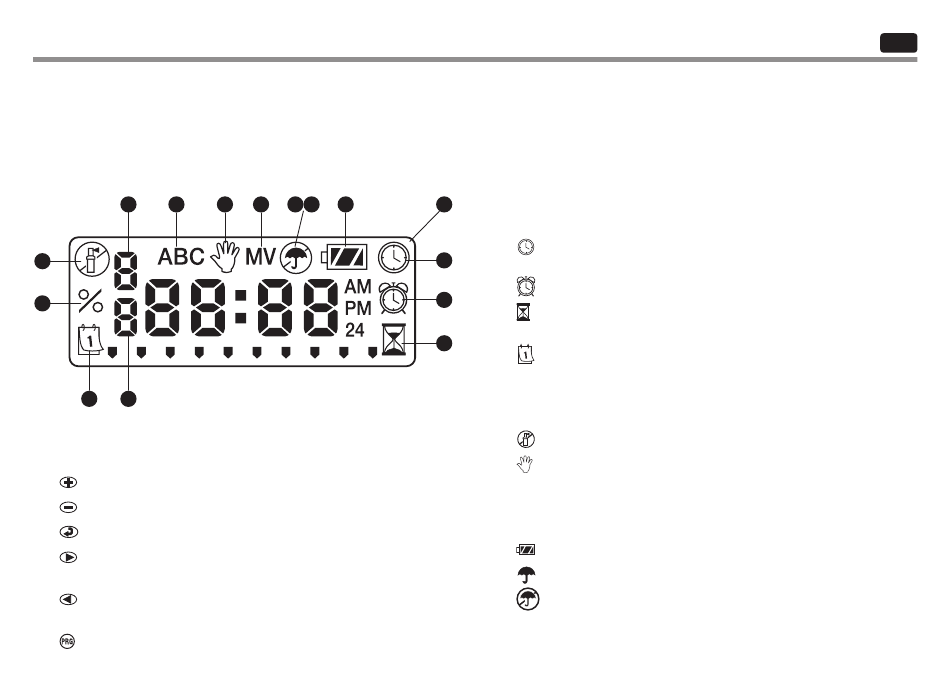

LCD Display

1 . Main Display – Indicates all program information
2 . Station Number – Indicates the station number being programmed
3 . Start Time Number – Indicates the start timer number being
programmed
1
4 . Program – Indicates the program (A, B, or C)
5 . Current Time/Day – Indicates when current day/time is
5
being set
6 . Start Times – Indicates when start times are being set
6
7 . Run Times – Indicates when Run Times are being set. Allows
user to set run times from one minute to six hours.
7
8 . Watering Days – Allows the user to select individual days to
water or a selected number of days between watering (interval)
9 . % Seasonal Adjustment – Allows the seasonal adjustment to be
programmed form 10–150% (default value is 100%)
System Off – Indicates that watering is suspended
10 .
Manual On/Off – Indicates when manual watering is
11 .
programmed. Allows the user to activate the station manually.
12 . MV – Indicates that station one is set to master valve operation
(only available on two-, four-, or six-station models)
Battery Status – Indicates remaining battery life
13 .
Umbrella – Indicates the rain sensor is suspending irrigation
14 .
Crossed Umbrella – Indicates the rain sensor has been
15 .
manually bypassed
