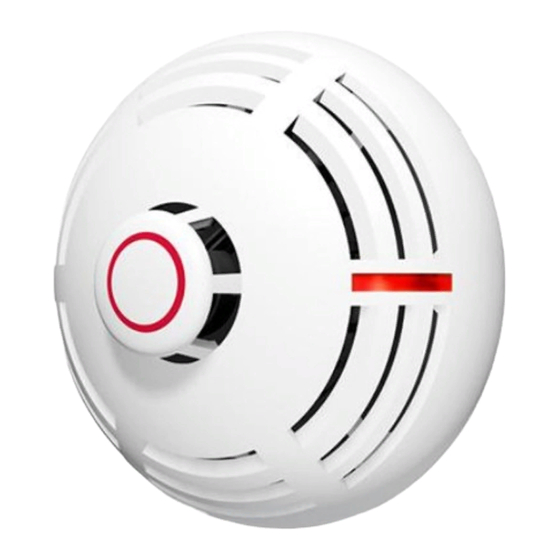

MULTISENSOR SMOKE AND HEAT DETECTOR
DMP-100
OPTICAL SMOKE DETECTOR
DRP-100
FIXED TEMPERATURE / RATE-OF-RISE HEAT DETECTOR
DCP-100
Installation Manual
dmp-100_en 07/13
SATEL sp. z o.o.
ul. Schuberta 79
80-172 Gdańsk
POLAND
tel. 58 320 94 00
info@satel.pl
www.satel.eu
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Satel DMP-100
Summary of Contents for Satel DMP-100
- Page 1 MULTISENSOR SMOKE AND HEAT DETECTOR DMP-100 OPTICAL SMOKE DETECTOR DRP-100 FIXED TEMPERATURE / RATE-OF-RISE HEAT DETECTOR DCP-100 Installation Manual dmp-100_en 07/13 SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. 58 320 94 00 info@satel.pl www.satel.eu...
- Page 2 The detector automatically compensates for gradual changes in the optical chamber caused by deposition of dust. In the case of DMP-100 multisensor detector, the smoke sensor operating parameters are adjusted according to the temperature changes recorded by the heat sensor (thermistor).
- Page 3 Periodic checks should be conducted at least every six months. 5.1 Cleaning the optical chamber The DMP-100 and DRP-100 detectors are monitoring the state of the optical chamber. Deposition of dust in it may lead to malfunctioning of the device. It is recommended that you have the optical chamber cleaned at least once a year.
- Page 4 SATEL DMP-100 ● DRP-100 ● DCP-100 4. Push aside the thermistor and its wires (Fig. 8). 5. Push outward the catch securing the optical chamber cover (Fig. 9) and remove it (Fig. 10). 6. Using a soft brush or compressed air, clean the labyrinth in the cover, as well as the base of the optical chamber, paying attention to the recesses where LEDs are installed.
- Page 5 Minimum static response temperature ................54 °C Maximum static response temperature ................65 °C Operating temperature range..................-25...+50 °C Maximum humidity ......................93±3% Enclosure dimensions DMP-100 / DCP-100......ø108 x 49 mm DRP-100 ..........ø108 x 42 mm Weight DMP-100 .............94 g DRP-100 .............. 94 g...
- Page 6 PN-EN 54-5:2003 standard. The Certificate of Conformity can be downloaded from the www.satel.eu website. 1438 SATEL Sp. z o.o. • ul. Franciszka Schuberta 79 • 80-172 Gdańsk • POLAND 1438/CPD/0316 EN 54-5 DCP-100 conventional, detachable, spot type heat detector for fire alarm systems used in buildings.
- Page 7 EMC 2004/108/EC Electromagnetic Compatibility Directive; An EC Certificate of Conformity No. 1438/CPD/0341 was issued by the CNBOP-PIB Jozefow Certification Body for the DMP-100 smoke and heat detector to confirm its compliance with the requirements of PN-EN 54-5:2003 and PN-EN 54-7:2004 + PN-EN 54-7:2004/A2:2009 standards.
