Park Scale Models AT-17 Bobcat Assembly Manual page 18

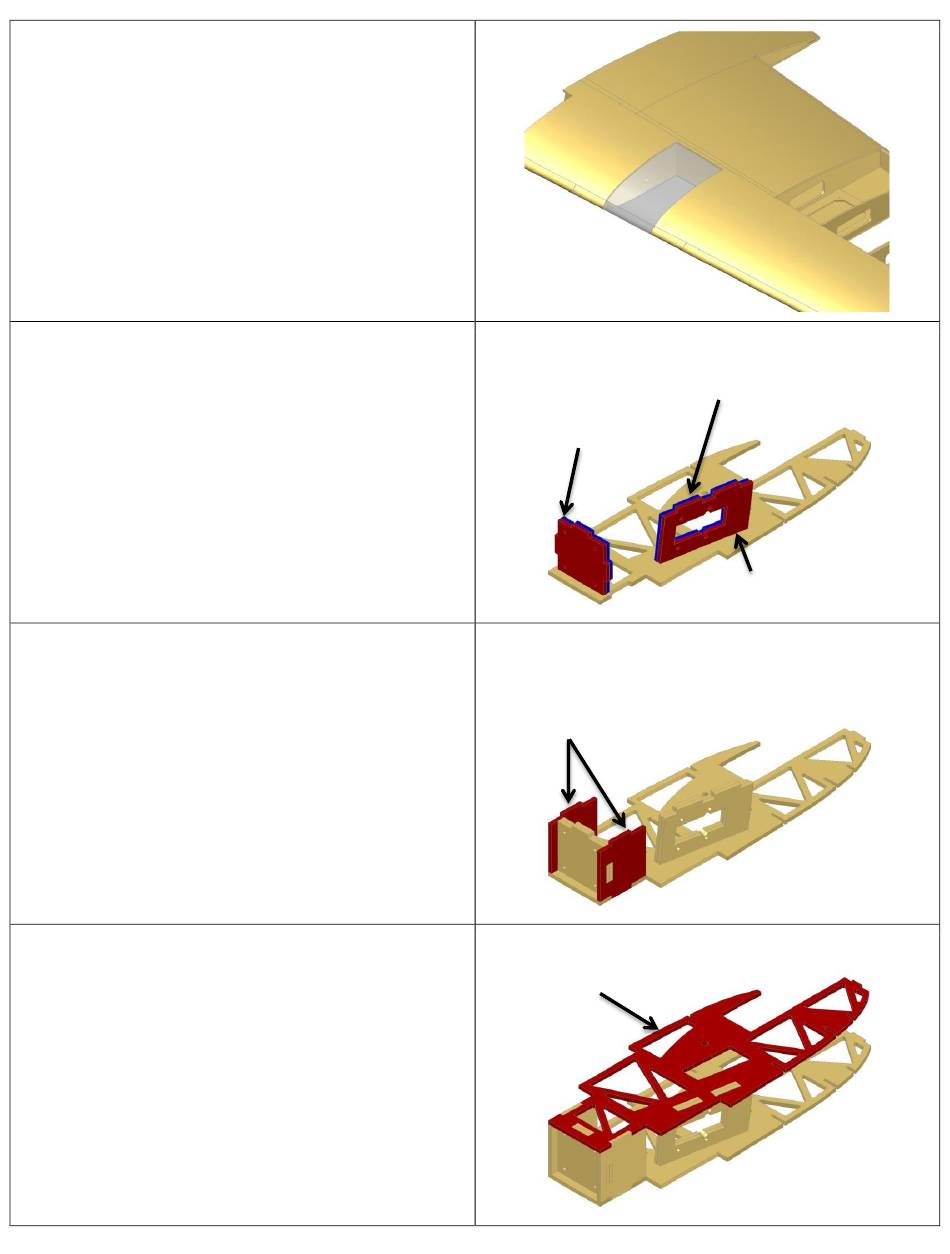

32. Cut away the leading edge sheeting between R5
and R6. DO NOT cut through the spar!
33. Epoxy two FW1 together and glue to nacelle frame
NF1 as shown. Fit RB1 (blue) and RB2 (red) into
NF1, do not glue yet.
34. Fit and glue FW2 to NF1 and FW1.
35. Fit NF2 in place as shown. Check that RB1 and RB2
align properly and fit into the slots as shown.
Remove NF2, epoxy RB1 & RB2 together. Fit and
glue NF2 to FW1 & FW2. Epoxy RB1/RB2 to FW1
and FW2.
RB1 (blue)
FW1 (x2)
FW2
NF2
RB2 (red)
