Park Scale Models AT-17 Bobcat Assembly Manual page 12

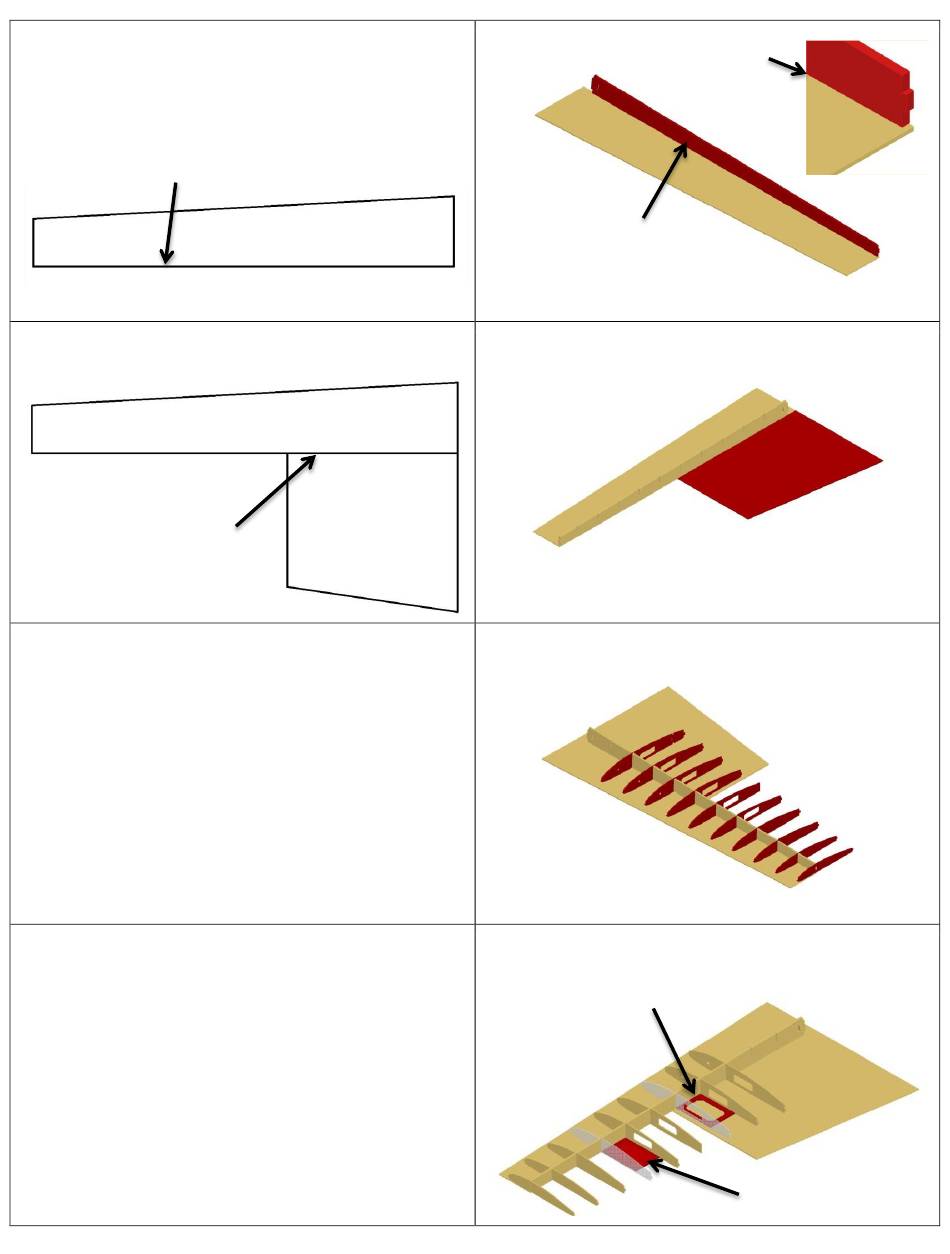

8. Cut the leading edge sheeting from1/16" balsa to
size using the measurements below, ensure the
long edge is straight. Glue WS1 on top of the 1/16"
balsa sheet along the straight edge.
straight edge
2.5"
22.75"
9. Cut a sheet of 1/16" balsa to size using the
measurements below. Edge glue to the leading
edge sheeting.
straight edge
10. Fit ribs R5-R14 to the spar, do not glue yet.
11. Fit and glue SDF between R7 and R8, ensure it is
tight up against the wing spar. Fit and glue the
1/16" balsa servo door sheeting between ribs R10
and R11, ensure it is tight up against the wing
spar.
3.75"
11"
8.75"
7.25"
glue on top of sheet
WS1
SDF
servo door sheeting
