Wing Construction - Park Scale Models AT-17 Bobcat Assembly Manual

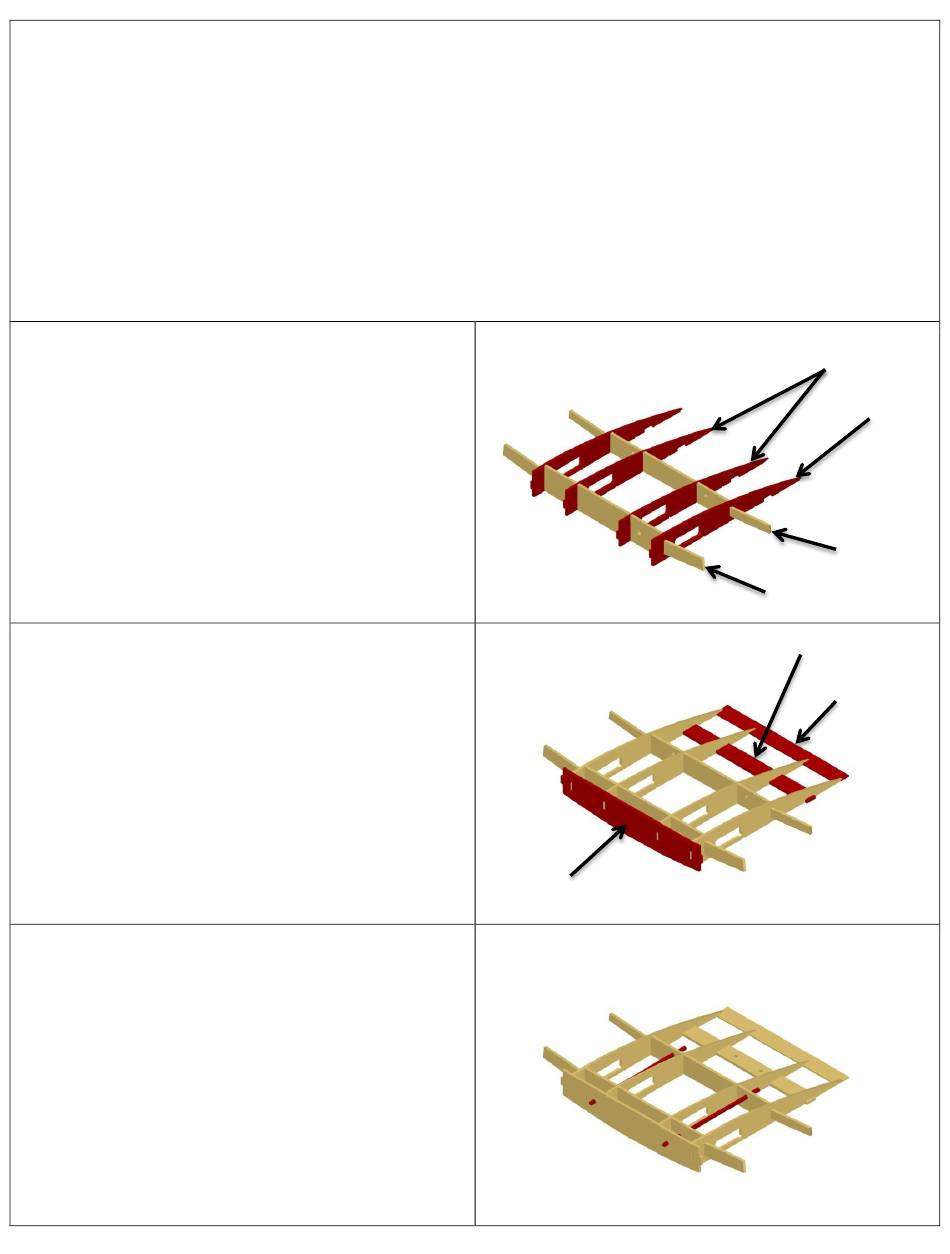

1. Start the center wing section by fitting R1(x2) and
R2(x2) to WS1A and WS2A. Ensure that the ribs
are perpendicular to the spars before gluing.
2. Fit and glue WS3, WM5 and TE1 to ribs.
3. Cut two (2) 5" lengths of the supplied 3/16"
hardwood dowel. Insert the dowels into the wing
spars as shown and epoxy in place. Allow the
dowels to extend past WS3 by ¼".

Wing Construction

WS3
R1
R2
WS2A
WS1A
WM5
TE1
