Park Scale Models AT-17 Bobcat Assembly Manual page 14

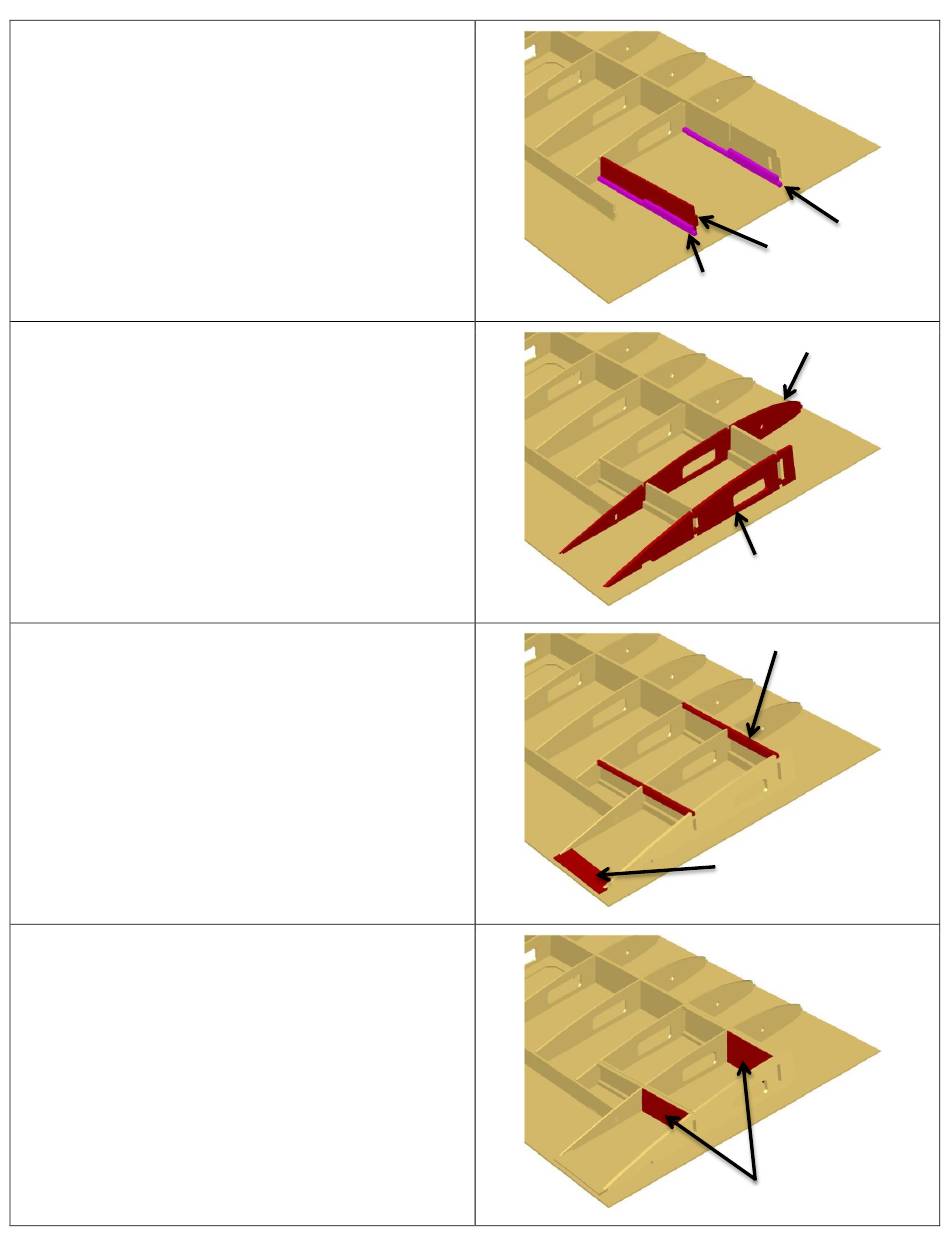

16. Fit WS2, S1B and S2B in place where shown. Do
not glue in place yet.
17. Fit R3 and R4 in place where shown. Ensure that
all parts are fit together tightly and then glue R3
and R4 to WS1, WS2, S1B, S2B and the balsa
sheeting. Glue S1B to WS1 and the sheeting. Glue
S2B to WS2 and the sheeting. Remove any excess
glue at the joints between S1B/WS1 and S2B/WS2.
18. Fit and glue S1A to WS1 and R3-R5. Fit and glue
S2A to WS1 and R3-R5. Fit and glue TE1 to R3, R4
and the sheeting. Remove any excess glue at the
joints between S1A/WS1 and S2A/WS2.
19. Fit and glue the 1/32" plywood shearwebs to
S1A/B and S2A/B. Epoxy shearwebs to R3, R4 and
the balsa sheeting.
S1B
WS2
S2B
R4
R3
S1A
TE2A
1/32" ply
shearweb
