I N S T A L L A T I O N I N S T R U C T I O N S
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(1) Bracket, Plasma Mounting
(4) Screws, M8 x 35mm Button Head Cap
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
WARNING!

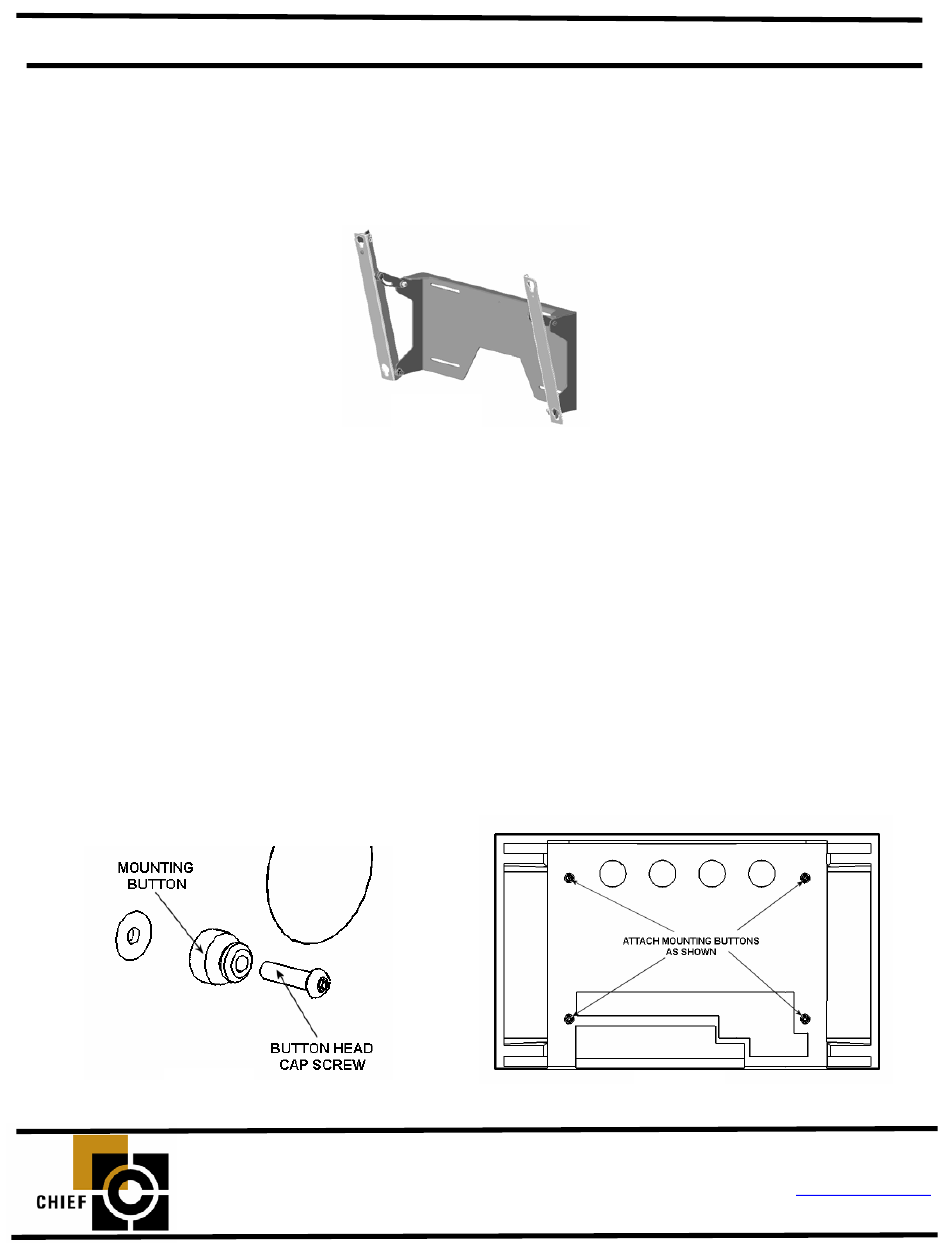

1. Attach mounting buttons to back of display using the M8 x 35mm button head cap screws provided (see
Figure 2 and Figure 3
Figure 2
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PKWY, STE. 700
SAVAGE, MINNESOTA 55378 USA
SAMS-2132
PLASMA DISPLAY MOUNT
Figure 1
PLASMA DISPLAYS ARE EXTREMELY FRAGILE.
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4
TIMES THE COMBINED WEIGHT OF ALL COMPONENTS
PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT
SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE
REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE
MOUNT IS 175 POUNDS (79.38 KG).
).
(1) Allen Key, 5mm
(4) Mounting Buttons, Nylon stepped
Figure 3
8804-000189 REV. A
2004 Chief Manufacturing
www.chiefmfg.com
10/04
Advertisement
Table of Contents
Related Manuals for CHIEF SAMS-2132
Summary of Contents for CHIEF SAMS-2132
- Page 1 1. Attach mounting buttons to back of display using the M8 x 35mm button head cap screws provided (see Figure 2 and Figure 3 Figure 2 Figure 3 CHIEF MANUFACTURING INC. 8804-000189 REV. A 1-800-582-6480 952-894-6280 FAX 952-894-6918 2004 Chief Manufacturing 8401 EAGLE CREEK PKWY, STE.
- Page 2 Securely anchor plasma mount to the wall using wall studs or supporting framework (see Figure 4). The small center hole can be used to lightly hold the mount in place while marking drill hole locations. Figure 4 3. Make sure the flag is lowered to the side before attempting to place the display on the mount (See Figure 5).
