UNIT 2
Operation

Power On

1) Press the ON button.

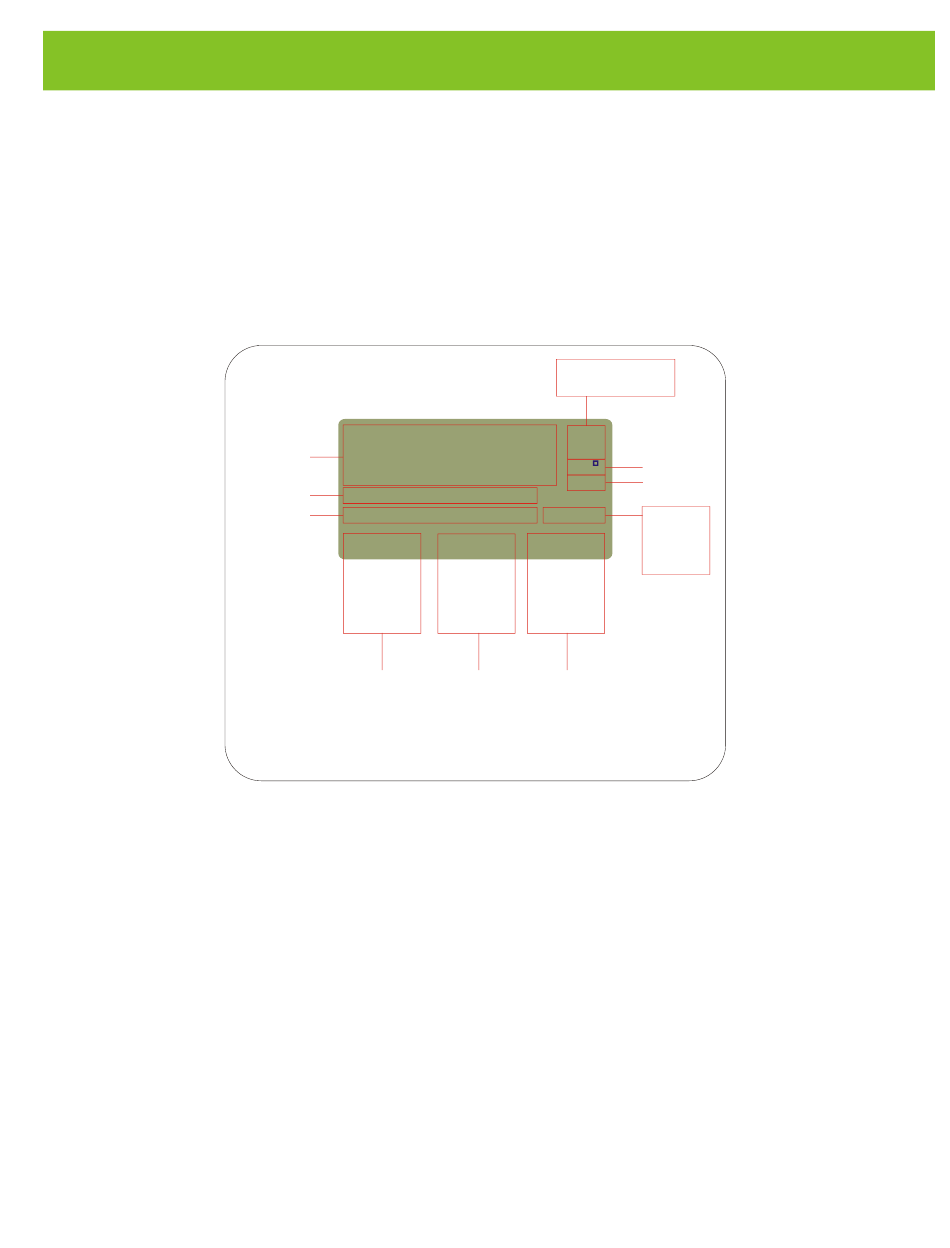

2) After a few seconds, a screen will appear that looks like the one below, which is called Immediate Mode.
Power Units
The MicroMeter is capable of displaying power readings in three different units. The user may toggle through these units by pressing
F1.
dBm (ABS) - This is an absolute (ABS) power measurement. It shows how much optical power is being received by the photodetector
in decibels referenced to a milliwatt (dBm).
dB (REL) - This is a relative (REL) power measurement. It shows the amount of optical power being received by the photodetector
relative to a user-defined reference power (i.e. "zeroing" the meter). If a reference value has been set, toggling to REL mode will show
the user how much optical power is being lost in the link.
µW (ABS) - This is an absolute (ABS) power measurement. It shows the amount of optical power being received by the photodetector
in microwatts, or millionths of a watt.
-20 45
Power
Measurement
............
Link Name
FBR:00
Run Number
_____________________
UNITS
F1
Toggle
Power
Units
Immediate Mode
METER FUNCTIONS
Power Units
dBm
.
ABS
82
68%
850nm
| STORE | WAVE
F2 F3
Toggle
Store
Wave
Power
Lengths
Reading
2-1
dBm (ABS)
dB (REL)
µW (ABS)
Temperature
Battery Life
Wavelength
850nm
1300nm
1310nm
1550nm
