Summary of Contents for Viqua Sterilight HF Series
Page 1

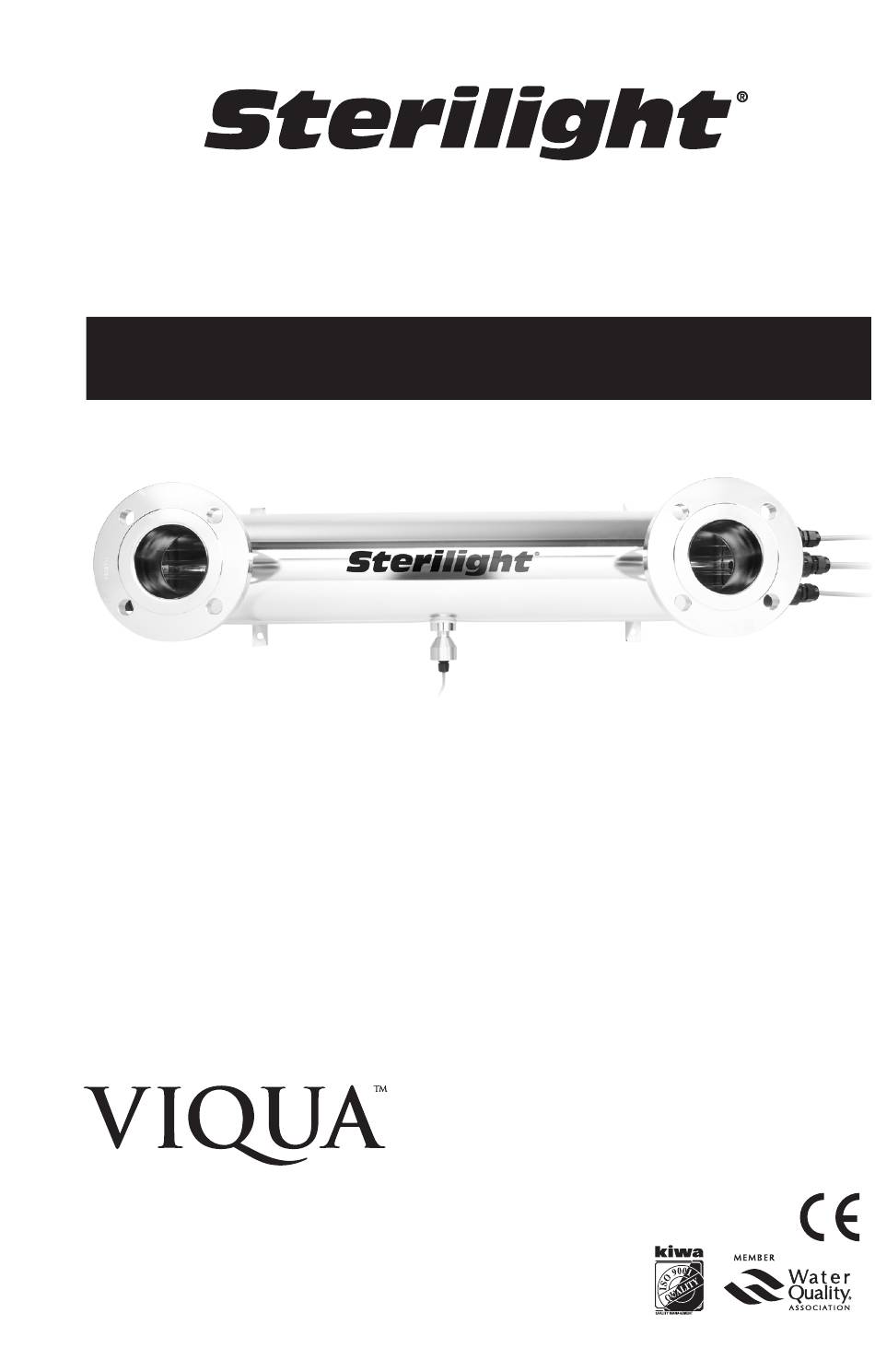

SHF-180, SHF-180/2, SHFM-180, SHFM-180/2 Manufactured in Canada by: 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. 1.800.265.7246 (US and Canada only) t. +31 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com 520189-R_RevB...
Page 2
WATER CONFIDENCE Each component of your VIQUA system has been designed and developed through extensive research and development to be part of an overall system that operates safely and efficiently over its entire lifetime. get genuine Sterilight lamps are: Safety certified.
Page 3

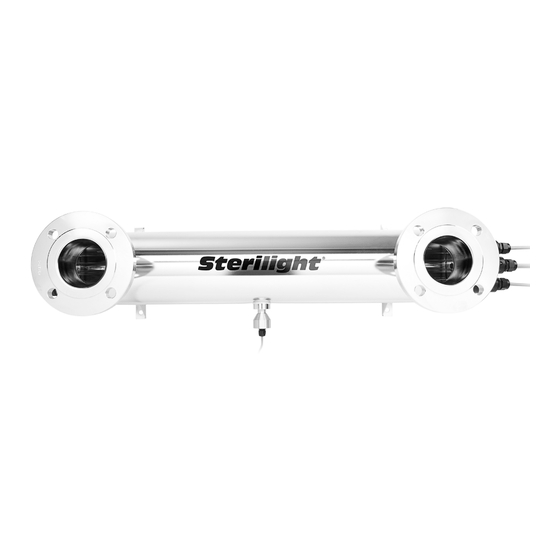

Congratulations , you have just purchased a Sterilight Hi-Flo ® UV disinfection system. By purchasing this device, you have taken the first step in ensuring the safety of your water supply by using a totally non-intrusive, physical disinfection method. Your Sterilight system uses the most advanced UV technology on the market and is designed to provide you with years of trouble free operation with...
Table of Contents: Parts / Schematic Breakdown Safety Instructions Water Chemistry Installing Your UV Disinfection System Disinfection Procedure Operating and Maintenance Instructions 8-10 Operation 11-14 Troubleshooting 15-16 Hi-Flo Series Dose Flow Chart Specifications 17-18 Manufacturer’s Warranty Potential Safety Measures Hazard UV Exposure Never illuminate UV Lamps outside of the UV Chamber.
Page 5
Symbols: Protective Caution Ground Electrical Fragile Warning WEEE (waste electrical or Eye Protection electronic equipment)* * This symbol indicates that you should not discard wasted electrical or electronic equipment (WEEE) in the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center.
Safety Instructions: WARNING - Always shut-off water flow and release water pressure before servicing. WARNING - to guard against injury, basic safety precautions should be observed, including the following: 1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. 2. GROUNDING This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electrical shock.
Page 8
9. Do not use this disinfection system for other than intended use (potable water applications). The use of attachments not recommended or sold by the manufacturer / distributor may cause an unsafe condition. 10. Intended for indoor use only. Do not install this disinfection system where it will be exposed to the weather or to temperatures below freezing.
Water Chemistry: Water quality is extremely important for the optimum performance of your UV system. The following levels are recommended for installation: • Iron: < 0.3 ppm (0.3 mg/L) • Hardness*: < 7 gpg (120 mg/L) • Turbidity: < 1 NTU •...
Page 10
1. Figure 1 shows the installation of a typical disinfection system and the related components that may be used for the installation. The use of a by-pass assembly is recommended in case the system requires “off-line” maintenance. If this is the case, it must be noted that the system will require supplementary disinfection of the distribution system if any water is used during this by-pass condition.
Page 11
3. Mount the system using the chamber mounting legs. Flange type connecting unions must be used to connect the water source. The symmetric design of the chamber allows the water connections to the inlet and outlet ports to be interchangeable. 4.
Disinfection Procedure: UV disinfection is a physical disinfection process and does not add any potentially harmful chemicals to the water. As UV does not provide a disinfection residual, it is strongly recommended that the entire distribution system located after the UV be chemically disinfected to ensure that the pipework is free from any bacteriological contaminants.
OPERATION • Always disconnect power before performing any work on the disinfection system. • Regularly inspect your disinfection system to ensure that the power indicators are on and no alarms are present. • Replace the UV lamp annually to ensure maximum disinfection. •...
Page 14
is fully seated onto the UV lamp (Figure 2D). 4. Once the lamp is fully seated on the connector, slide the connector up to the retaining nut. Once the connector is located fully against the retaining nut, slide the metal ring back in to lock the connector in place (Figure 2E).
Page 15
UV Sensor Replacement / Cleaning (SHFM models only): The UV sensor is a very delicate instrument. Extreme care is required when handling and cleaning. The sensor window itself is constructed from quartz which is extremely fragile, be careful you do not chip or break this quartz window. Manufacturer’s warranty does not cover damage due to neglect or misuse.
Operation: Basic Systems incorporating BA-ICE-HF controller: 1. Lamp life remaining (days): Each controller tracks the number of days of operation of the lamp and the controller. The default screen will display the total lamp life remaining (in days). The controller will count down the number of days remaining until the lamp requires changing (365 days to 1 day).
Page 17
Monitored Systems incorporating BA-ICE-M-HF controller: 1. UV intensity (%): The Hi-Flo Monitored series of products incorporate a UV sensor which detects the discrete 254 nm wavelength of the UV lamps. This information is relayed to the top Hi-Flo Monitored controller and is the default display shown in “% UV output” . The system will display the UV output between 50 to 99 percent.
Page 18
Possible causes for low UV alarm conditions: a) The UV lamps have perhaps reached a level whereby they can no longer adequately provide a sufficient level of disinfection due to age (> 9000 hours). The lamps should be replaced with new lamps from the manufacturer of the same size and type.
Page 19
6. 4-20mA output (optional): For those looking for the capability to transmit the UV intensity data to a remote location via a 4-20 mA signal, an optional“Y”cable is available from your dealer (Figure 5A). Please order PN 260134. This“Y”cable comes with 20 meters (65‘) of cable for the 4-20 mA signal. To install, first remove the existing sensor cable from the HF Enclosure (Figure 5B) and affix the new “Y”...
Troubleshooting: TROUBLESHOOTING GUIDE Symptom Possible Causes Solutions • Service pre-filtration Sediment pre-filter Pressure Drop Note: check source water supply as clogged fluctuations may occur in source pressure • clean sleeves with scale cleaner and Quartz sleeves are eliminate source of staining problem (ie. stained or dirty soften hard water, see page 8) •...
DISPLAY FAULT MODES LED display reads • lamp life expired - countdown is at “0” days “A3” • press reset button for a deferred alarm, replace UV lamps • controller is in lamp failure mode • power system down, allowing it to reset itself; apply power in order LED display is to confirm that the controller is able to power lamp blank...
(2) years from the date of purchase. During this time, VIQUA will repair or replace, at its option, any defective parts covered by the warranty. Please return the defective part to your dealer who will...
Page 24
VIQUA does not assume any liability for personal injury or property damage caused by the use or misuse of any of the above products. VIQUA shall not in any event be liable for special, incidental, indirect or consequential damages. VIQUA’s liability shall, in all instances, be limited to repair or replacement of the defective product or part and this liability will terminate upon expiration of the applicable warranty period.
