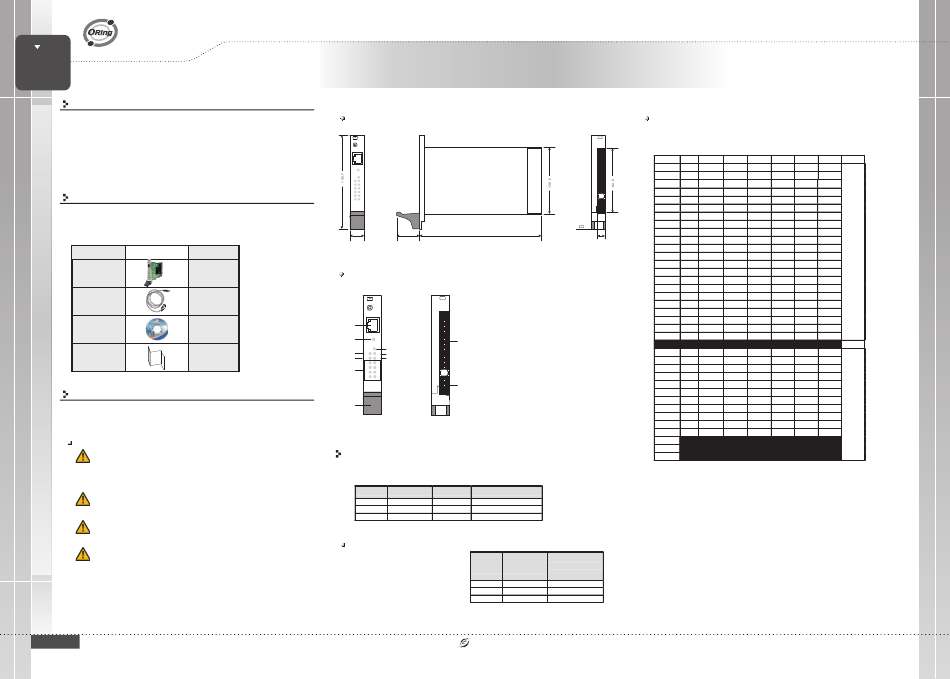

ORiNG CPGS-9080-C Quick Installation Manual

ORing Industrial Networking Corp.
SWITCH SWITCH
CARD CARD
Q I
uick nstallation
I N D U S T R I A L
Introduction
m
Oring's CPGS-9080-C series are anaged Ethernet switch cards on a
highly integrated 3U Compact PCI card form factor. Featuring eight
10/100/1000Base-T(X) ports, the CPGS-9080-C
with the EN50155 standard, and are ideal for harsh industrial
applications, such as factory automation, vehicle, and railway
applications. Since the switch card is hot swappable, you do not need
to turn off the system power during installation.
Package Contents
The CPGS-9080-C series are shipped with the following items. If any of
these items is missing or damaged, please contact your customer service
representative for assistance.
Contents Pictures
CPGS-9080-C
Console Cable
CD
QIG
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be
such that a hazardous condition is not achieved due to uneven mechanical
loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Q I G
CPGS-9080-C
CPGS-9080-C
G
uide
Dimension
series are fully compliant
Console
115200, 8, N, 1
Reset
Power
R.M. Ring
Status Fault
G 1 G 2
G 3 G 4
G 5 G 6
G 7 G 8
20.0
Number
Panel Layouts
X 1
Front View
X 1
Console
1
X 1
115200, 8, N, 1
2
Reset
Power
3
R.M. Ring
X 1
4
Status Fault
G 1 G 2
G 3 G 4
5
G 5 G 6
G 7 G 8
6
Network Connection
The switch card uses the
to the tablet below for cable types and specifications.
Cable
10Base-T
100Base-TX
1000Base-T
Console Port Pin Definition
To connect the console port to an external
management device, you need an RJ-45 to
DB-9 cable, which is also supplied in the
package. Below is the console port pin
assignment information.
1907-2-29-CPGS9080C-0
PCB
35.0 174.0
Rear View
1. Console port
2. Reset button
3. R.M. status LED
4. System status LED
5. G1-G8 port status LEDs
6. Ejection lever
7. Power status LED
J2
8. Ring status LED
7
9. Fault LED
8
9
J1
CPCI
connector for network connection. Please refer
Type Max. Length Connector
Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) 8-pin Female CPCI A-coding connector
Cat. 5 100-ohm UTP UTP 100 m (328 ft) 8-pin Female CPCI A-coding connector
UTP 100 m (328 ft) 8-pin Female CPCI A-coding connector
Cat. 5e,6
RS-232 with DB9
PC (male) pin (female) pin
RJ45 pin assignment
assignment assignment
(RJ45-DB9 cable)
PIN#2 RxD PIN#2 RxD PIN#2 RxD
PIN#3 TxD PIN#3 TxD PIN#3 TxD
PIN#5 GND PIN#5 GND PIN#5 GND
PRINTED ON RECYCLED PAPER
Industrial CompactPCI Managed

Ethernet Switch

Backplane Pin Definition
The tablet below provides information of each pin on the backplane of the card.
Please refer to the table for the pin assignment of each serial port.
Pin Z A B C
22 GND NC STxD NC
21 GND NC NC NC
20 GND LED5_0 LED5_1 GND LED7_0
19 GND LED4_0 LED4_1 GND LED6_0
18 GND LED1_0 LED1_1 GND LED3_0
17 GND LED0_0 LED0_1 GND LED2_0
16 GND P8_RX+ P8_RX- GND
15 GND P8_TX+ P8_TX- GND
14 GND P7_RX+ P7_RX- GND
13 GND P7_TX+ P7_TX- GND
11.3
12 GND P6_RX+ P6_RX- GND
11 GND P6_TX+ P6_TX- GND
10 GND P5_RX+ P5_RX- GND
9 GND P5_TX+ P5_TX- GND
8 GND P4_RX+ P4_RX- GND
7 GND P4_TX+ P4_TX- GND
6 GND P3_RX+ P3_RX- GND
5 GND P3_TX+ P3_TX- GND
4 GND P2_RX+ P2_RX- GND
3 GND P2_TX+ P2_TX- GND
2 GND P1_RX+ P1_RX- GND
1 GND P1_TX+ P1_TX- GND
25 GND +5V NC NC +3.3V
24 GND NC +5V 5V(VIO)
23 GND +3.3V NC NC
22 GND NC GND +3.3V
21 GND +3.3V NC NC
20 GND NC GND 5V(VIO)
19 GND +3.3V NC NC
18 GND NC GND +3.3V
17 GND +3.3V NC NC
16 GND NC GND 5V(VIO)
15 GND +3.3V NC NC
14
13
12
Version 1.0
D E F
NC SRxD GND
NC NC GND
LED7_1 GND
LED6_1 GND
LED3_1 GND
LED2_1 GND
NC NC GND
NC NC GND
NC NC GND
NC NC GND
NC NC GND
J2/P2
NC NC GND
NC NC GND
NC NC GND
NC NC GND
NC NC GND
NC NC GND
NC NC GND
NC NC GND
NC NC GND
NC NC GND
NC NC GND
+5V GND
NC NC GND
+5V NC GND
NC NC GND
NC NC GND
NC NC GND
GND NC GND
J1/P1
NC NC GND
GND NC GND
NC NC GND
GND NC GND
Quick Installation Guide
