I N S T R U C T I O N

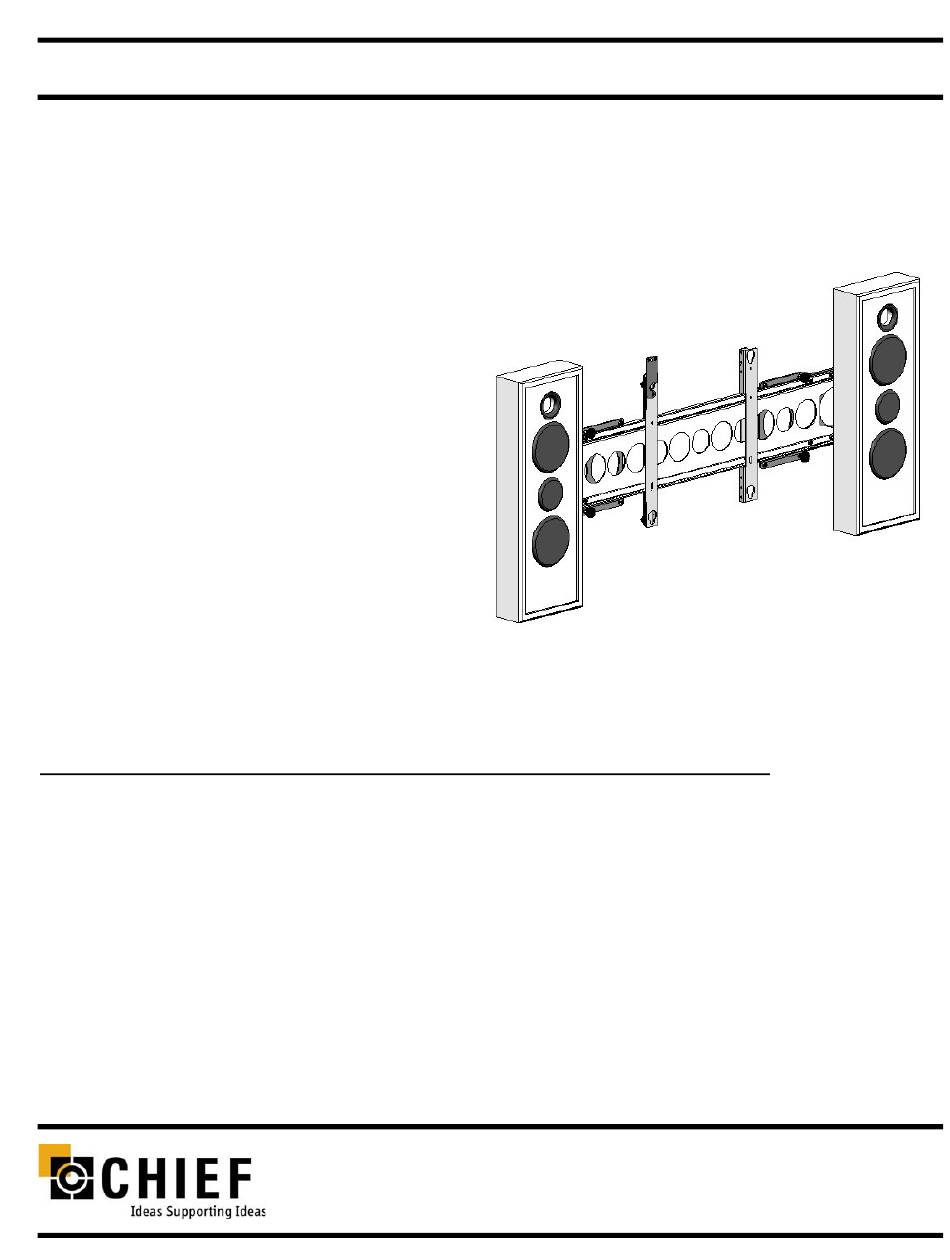

Speaker Mount Assembly
(PAC-300)
The Speaker Mount Assembly (PAC-300) is designed to
fit up to most 50" screens. The mount attaches to the
center of the speaker, adding only about one inch to the
depth of the mount and 20 pounds to the weight.
Height adjust ability of the mount is two inches, one inch
up and one inch down, from the center in one-half inch
increments.
BEFORE YOU BEGIN
• CAUTION: To prevent damage to the PAC-300, which could affect or void the Factory warranty, thoroughly
study all instructions and illustrations before you begin to install or operate the unit. Pay particular atten-
tion to the "Important Precautions" on Page 1.
• The maximum weight to be installed on the PAC-300 is limited by the weight specification of mount.
• If you have any questions about this assembly, contact Chief Manufacturing at 1-800-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY STE. 700
SAVAGE, MINNESOTA 55378 USA
M A N U A L
PART NO. 8800-000029 (Rev. B)
©2004 Chief Manufacturing
Printed in USA 05-04
www.chiefmfg.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF PAC-300
Summary of Contents for CHIEF PAC-300
-
Page 1: Before You Begin
“Important Precautions” on Page 1. • The maximum weight to be installed on the PAC-300 is limited by the weight specification of mount. • If you have any questions about this assembly, contact Chief Manufacturing at 1-800-582-6480. -
Page 2: Important Warnings And Cautions
A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre- sponding instructions. • WARNING: The maximum weight to be installed on the PAC-300 is limited to the weight specification of your mount. • CAUTION: Inspect the unit for shipping damage. - Page 3 Read all assembly instructions before start- NOTE: ing assembly. 2. Carefully inspect the Speaker Mount Assembly (PAC-300) components for damage (See Figure 1). Item # Item # 10. Speaker Mount Cross Support 90. 10-24 Nylock Nut (Qty. 5) 20.
- Page 4 Instruction Manual PAC-300 ASSEMBLE MOUNT NOTE: Numbers in ( ) refer to parts shown in Figure 1. Assemble mount as follows: Button Support 1. Attach two mounting buttons (100) to left speaker mount button support (20) and right speaker mount button sup- port (30) using four 10-24X7/8”...
- Page 5 Instruction Manual PAC-300 Install the speaker mount end supports (40) on the Speaker Mount End Support speaker mount cross support (10) and secure each speaker mount end support using four flat washers (140) and four 1/4-20X1/2” hex head cap screws (150) (see Figure 5 and Figure 6).
- Page 6 Instruction Manual PAC-300 MOUNT DISPLAY Adjust thumb screw knobs against back of display 1. Install PSB brackets on the display according to the instructions accompanying the brackets for your display. 2. Install the display on the mount according to instructions accompanying the PSB brackets for your display.
- Page 7 Instruction Manual PAC-300 SPEAKER ATTACHMENT Speaker Bracket Attachment 1. If speakers have inserts for brackets, install two speaker brackets (50) on speaker (see Figure 10 and Figure 11). Brackets may be vertically or horizontally using the 3”X4” Attachment Options pattern and/or slotted holes.
- Page 8 Instruction Manual PAC-300 Speaker Mounting 1. Loosen (Do not remove) four 1/4-20X1/2” hex head cap screws (150) securing speaker mount end support (40) on each side of mount (see Figure 13) 2. Extend speaker mount end supports (40) to facilitate speaker attachment.
