CHIEF PAC-390 Installation Instructions

CHIEF PAC-390 Installation Instructions

Cube wall hanger accessory

Advertisement

Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480

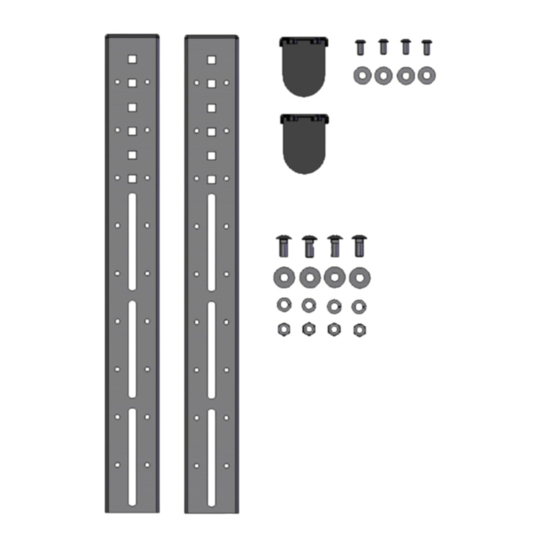

(2) BRACKET, Front
(2) BRACKET, Front
(4) BOLT, 1/4"-20
(4) BOLT, 5/16"-18 Carriage
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
1. Using two ¼"-20 bolts and flat washers , attach a rear bracket to a front bracket (see Figure 2). Repeat for this
process for remaining brackets.
8800-000047
CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com
INSTALLATION INSTRUCTIONS
PAC-390
CUBE WALL HANGER ACCESSORY
Figure 1
LARGE FLAT SCREEN DISPLAYS ARE EXTREMELY
FRAGILE.
(4) WASHER, 1/4" Flat
(4) WASHER, 5/16" Flat
(4) WASHER, 5/16" Lock
(4) NUT, 5/16"-18
Figure 2
11/05/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAC-390 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CHIEF PAC-390

  • Page 1 FRAGILE. 1. Using two ¼”-20 bolts and flat washers , attach a rear bracket to a front bracket (see Figure 2). Repeat for this process for remaining brackets. Figure 2 8800-000047 11/05/04 CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com...
  • Page 2 Figure 3 3. Place hanger, with mount, over cube wall. 4. Adjust top plate to width of cube wall (see Figure 4). Figure 4 5. Install display/PSB assembly on mount. 8800-000047 11/05/04 CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com...
