I N S T A L L A T I O N I N S T R U C T I O N S

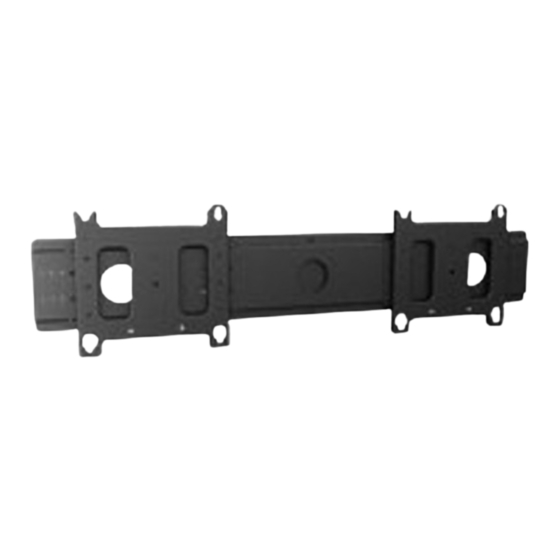

PPC TO PPD ADAPTER
Model: PAC-200
Specifications:
•
Designed for installation on Chief PPC Cart.
NOTE: The PAC-200 re-uses certain components and
hardware from the original single display PPC
configuration.
•
Infinite tilt adjustment between 0° and 7.5°.
BEFORE YOU BEGIN
WARNING: It is the installer's responsibility to make sure all components are properly assembled and installed
using the instructions provided. Failure to read, thoroughly understand, and follow all instructions can result in
serious personal injury, damage to equipment, or voiding of factory warranty.
•
If you have any questions about this these instructions or your specific installation, contact Chief Manufacturing
at 1-800-582-6480 or 952-894-6280.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE 700
SAVAGE, MINNESOTA 55378 USA
PAC-200
(Shown installed on PPC cart, purchased separately)
8809-000035 RevA
2007 Chief Manufacturing
www.chiefmfg.com
12/07
