ANY VIDEO SCREE N
Purpose:
•
Procedure: P ress key
•
Format:
•
bars. H alf of the v er tical bars should
wider. A horizontal bar should appear across the to p of the screen. From
left to right the shade of color on the horizontal bar should change.
the right of the bar two V's should be displayed, right side up.
If the Any Video tests fails, swapout A3 and A5, and restart the test.
NOTE: F igure 3-3 is a black and white representation of a colored screen.
CX5200 F ield Service Manual
To test the video generation of the GTIA and A N TIC chips.
1
followed by START.
The screen should have a black background with eight vertical

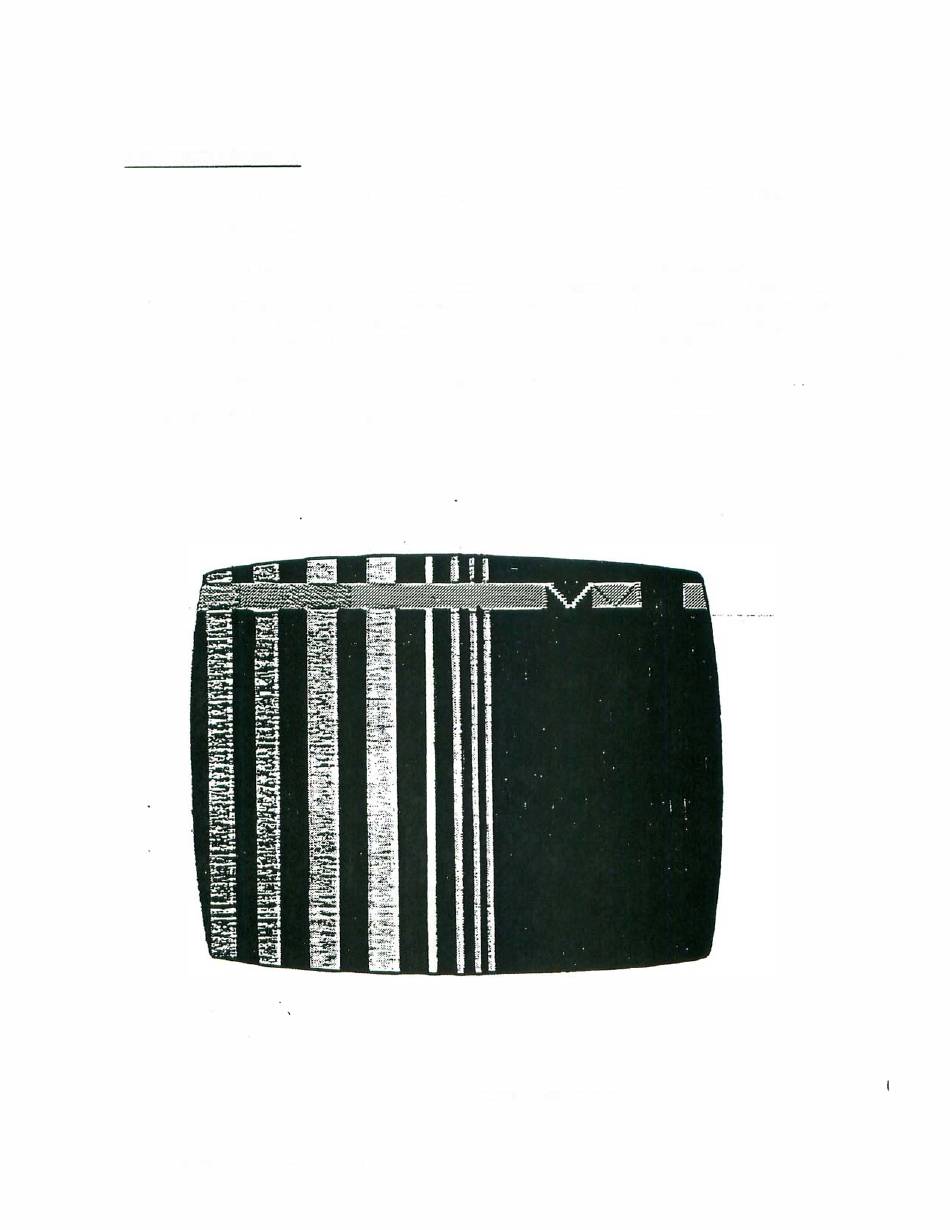

F igure 3A-3. Any Video T est S creen
3A-6
be narrow and the other half much
On
