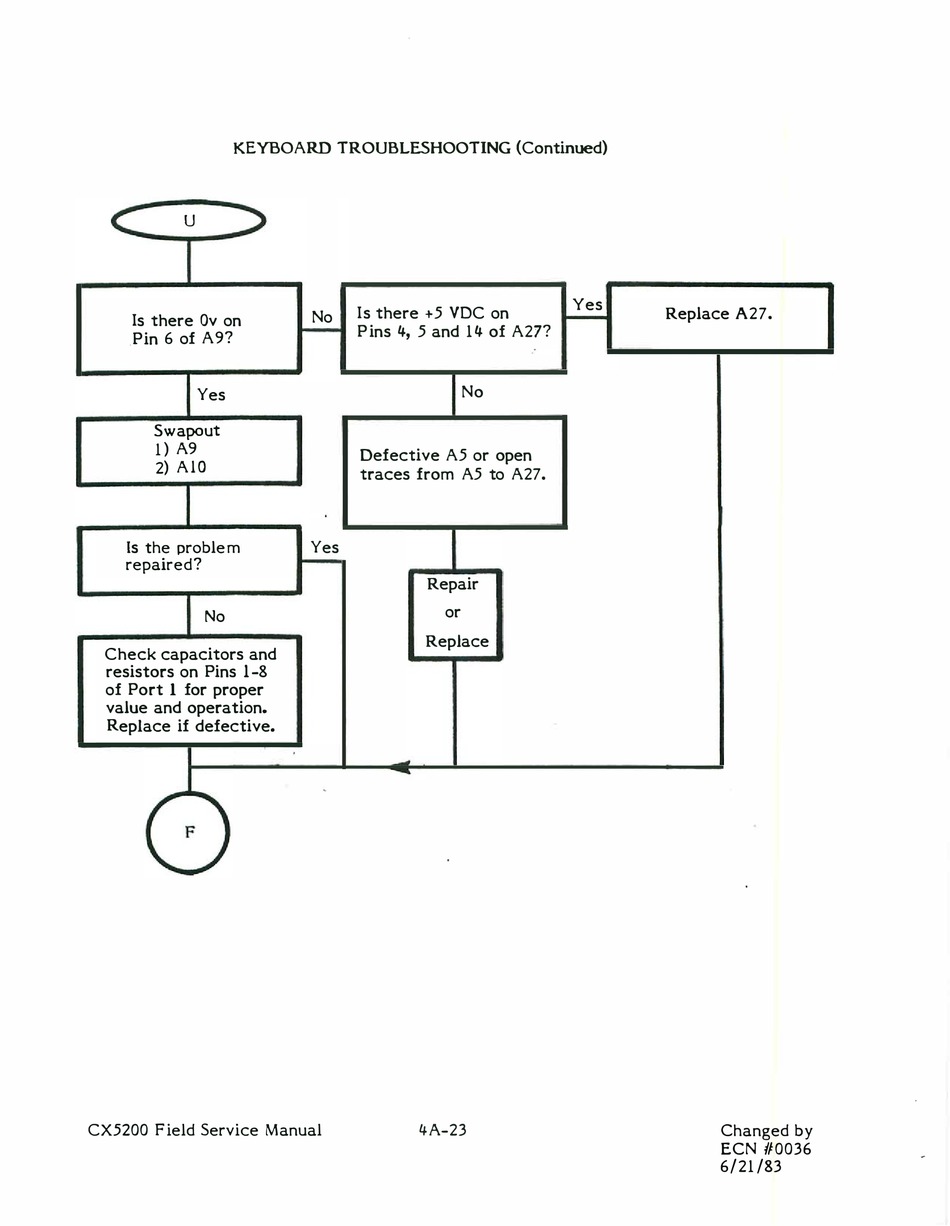

KEYBOARD TROUBLESHOOTING (Continued)
u
Is there av on
Pin 6 of A9?
.
Yes
Swapou t
1 ) A9
2) A l a
Is the proble m
repaired?
No
Check capacitors and
resistors on Pins 1 -8
of Port
1
for proper
value and operation.
R eplace if defective.
CX5200 F ield Service Manual
Is there +5 VDC on
No
P ins 4, 5 and 1 4 of A27?
No
Defective A5 or open
traces from A5 to A27.
Yes
Repair
or
Replace
4 A-23
Yes
Replace A27.
Changed by
ECN 110036
6 / 2 1 /83
