Two-Port Universal PCB differences:

)
All of the 4--port universal board differences listed above are included on
1
the 2-port universal PCB.
)
Ports 3 and 4- and their associated discrete components have been removed.
2
3 ) rcs A12 and A l 3 have been removed.
4) The automatic switch box has been replaced with a manual switchbox and
the RF cable has been replaced with the standard RF cable.
)
5 The power adaptor plugs directly into the rear of the console instead of
plugging into the switch box.
Cartridge Socket Opening
Player Ports
CX5200 Field Service Manual
.- -- -
1

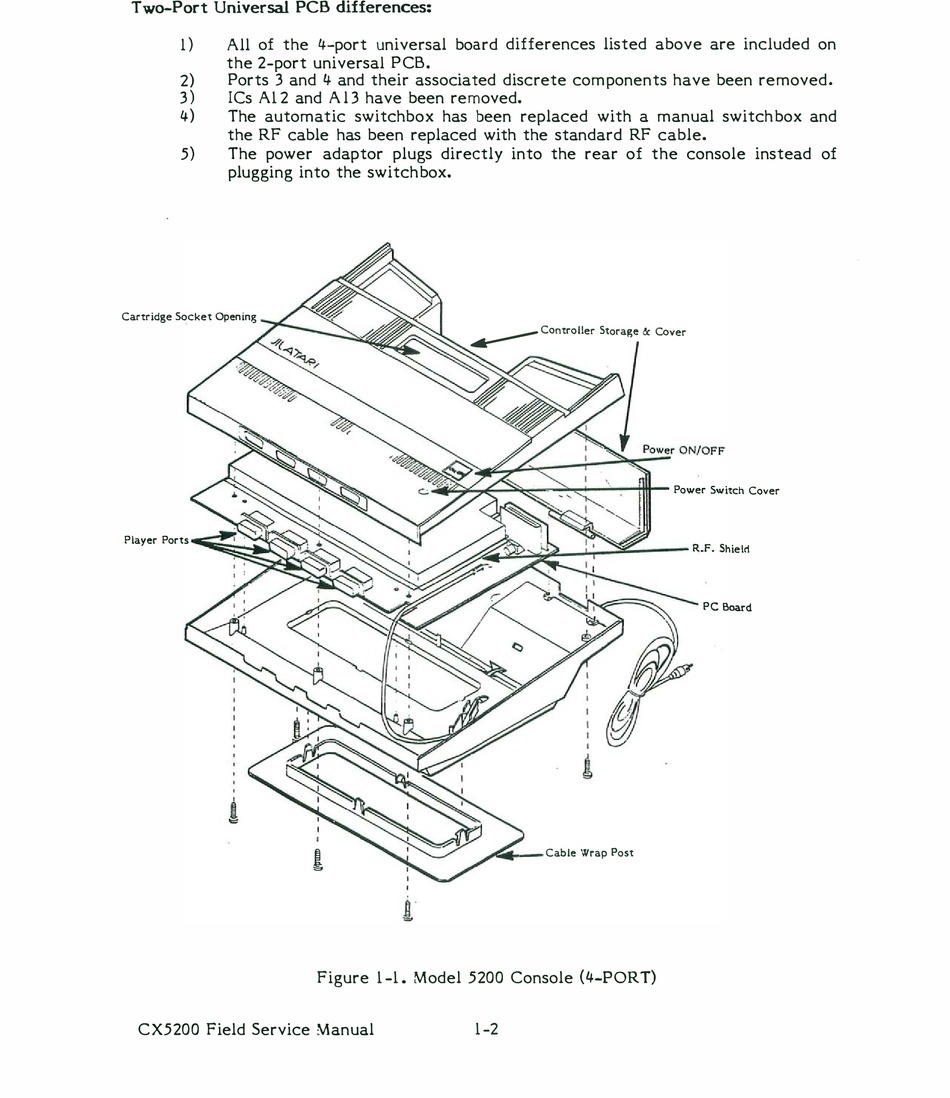

Figure 1-1. Model 5200 Console (4-POR T)
1-2
&:
Contr oller Storag e
Cover
Power Switch Cover
R,.F.
Shieh1
PC
Board
