Select Switch Bezel Removal - Atari CX 5200 Field Service Manual

To remove the select switches:
1 .
Slide a f lathead screw driver under the select switch bezel between
•
switches and pry out the bezel (See Figure 6-6).
Remove the switches.
•
Fire Buttons
2 . Remove the three screws from the botto m controller case.
3. Separate the top controller case from the bottom controller case.
circuit and key pad can now be removed.
4. Remove the two fire buttons on each side by p ulling them up.
At this point you can check or replace the F lex Circuit Pad and pots, if necessary .
Use the 5200 Controller Knob Puller Tool ( F C I 0 02 1 4) to remove the j oystick
5.
handle.
Push the knob shaft into one of the corners of the top housing opening. Push
down the boot with the tool to expose the shaft.
shaft until the shaft is inside the notch of the tool's head ( See Figure
gently lever the tool, and the knob w ill pop off.
NOTE: By using care, you will not damage the boot during this process.
sure to note position of actuator plates and slide block for replacement.
Be
CX5200 Field Service Manual
CONTROLLER DISASSEMBLY

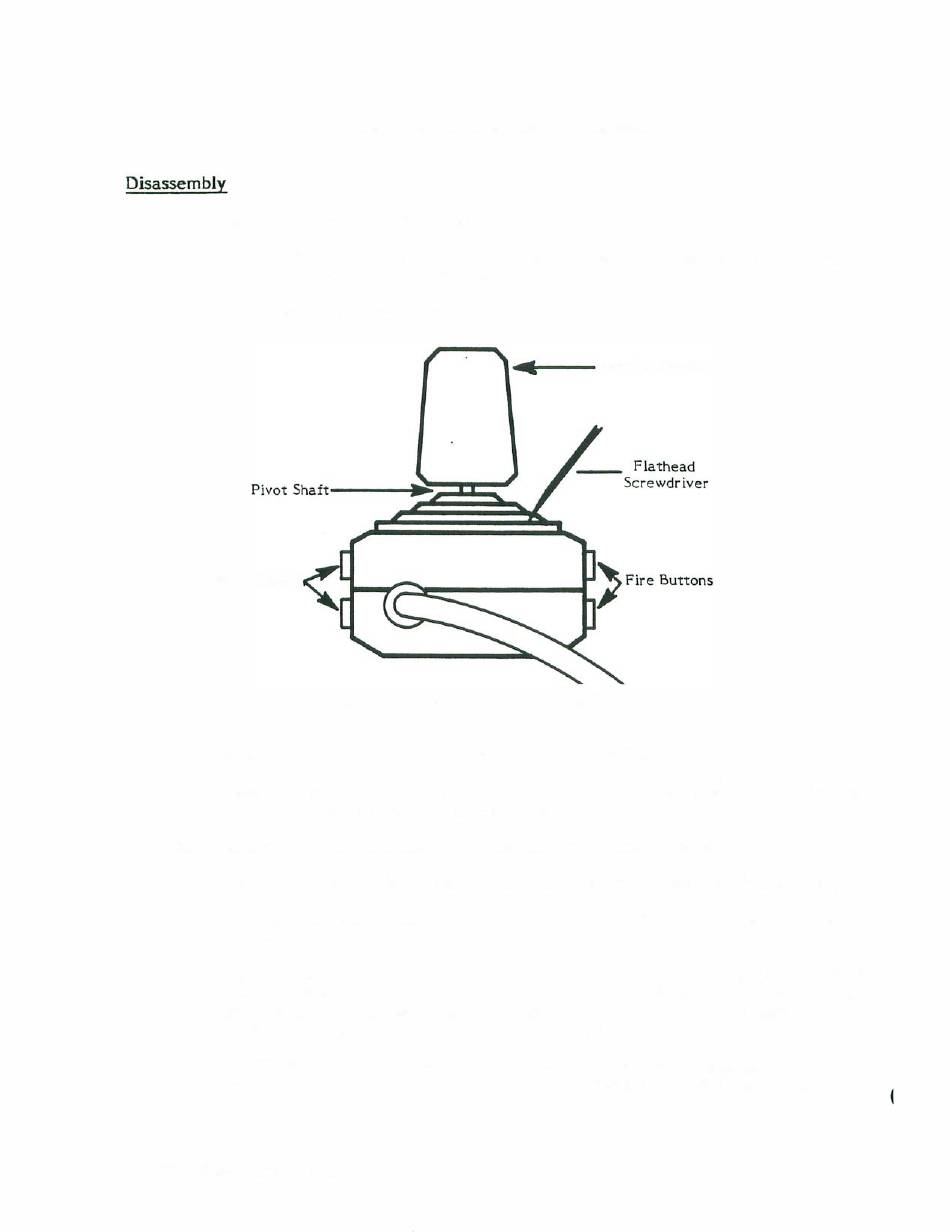

F igure 6-6. Select Switch Bezel R emoval
6 - 1 0
I
ASSEMBL Y
Joystick Handle
Push the tool to ward the
The flex
O.
Now ,
