C 3
Is there +5VDC at
the base of Q I ?
Yes
Replace Q I .
Return to beginning of Test Sequence
CX5200 Field Service M anual

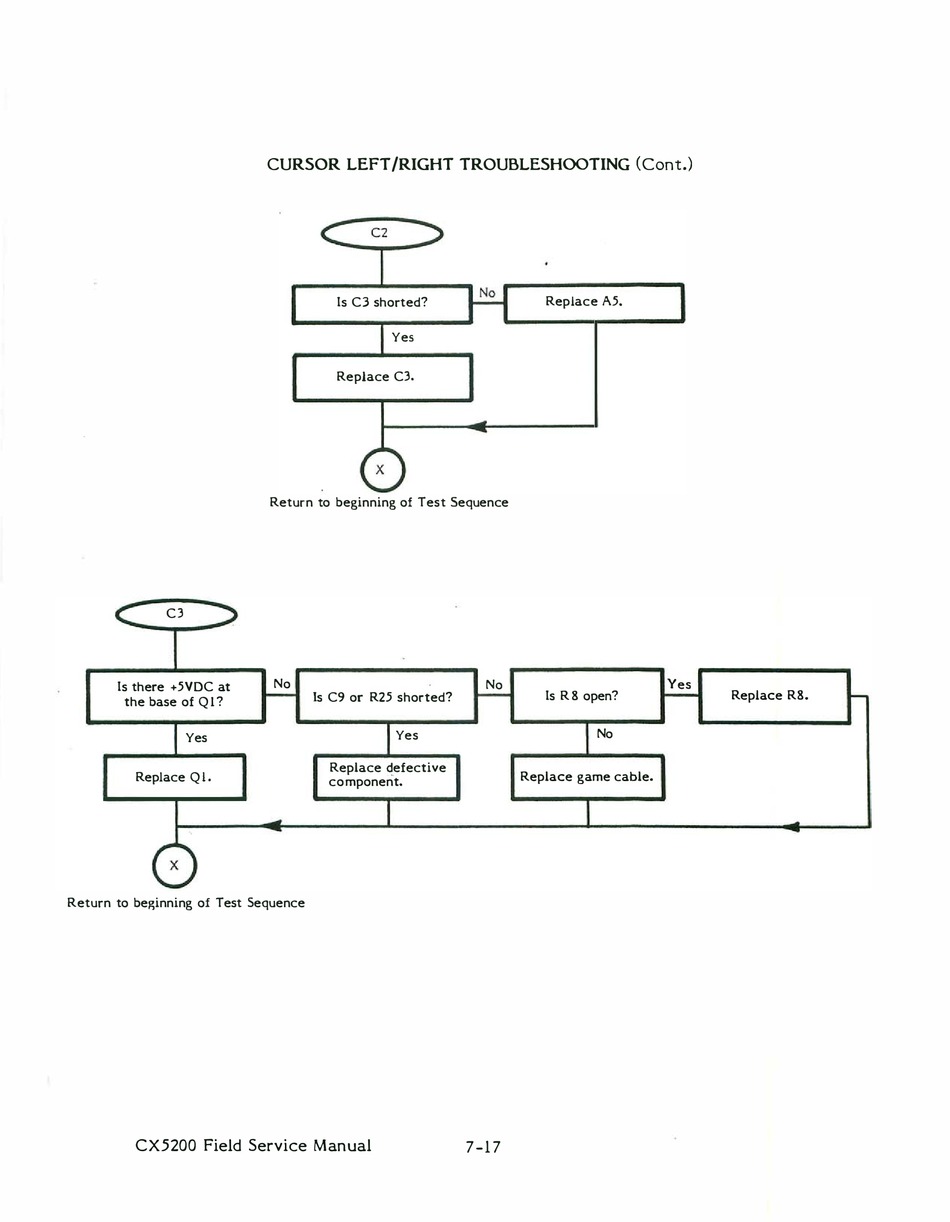

CURSOR LEFT/RIGHT TROUBLESHOOTING (Cont.)
Is C3 shorted?
Yes
Replace C3.
Return to beginning of Test Sequence
No
Is C9 or R25 shorted?
Yes
Replace �.efective
component.
Replace A5.
No
Is R 8 open?
No
Replace game cable.
7 - 1 7
Ye s
Replace R8.
