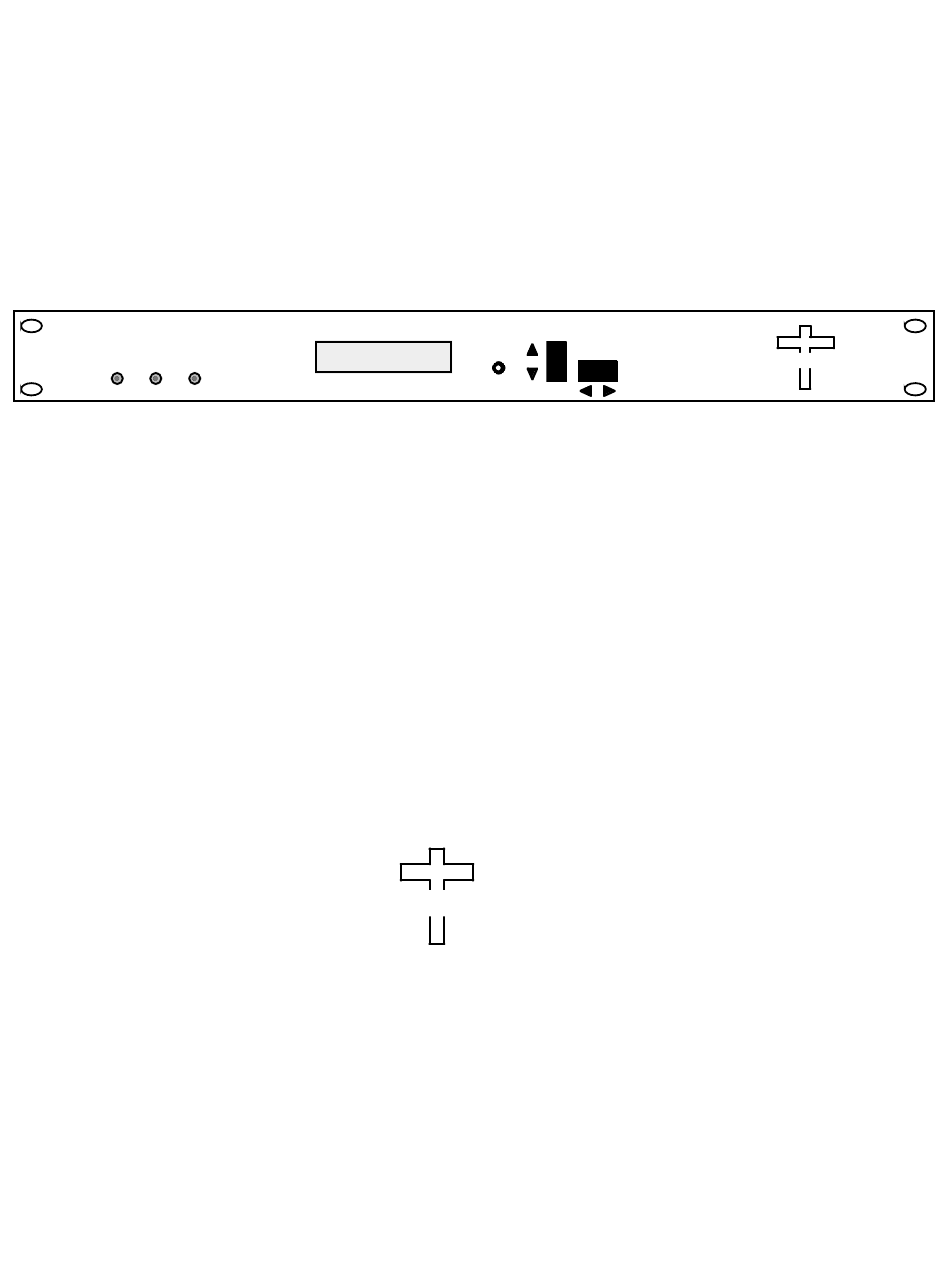

Instruction Manual
ALARM
REMOTE
POWER
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,
equipment serial number, and a description of the part.
F=8150.125
G=30
REF=INT
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL info@crosstechnologies.com
Model 2016-8085
MODEL 2016
DOWNCONVERTER
MENU
EXECUTE
Downconverter
May 2022, Rev. 0
C
T
ROSS
ECHNOLOGIES INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2016-8085 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cross Technologies 2016-8085

Summary of Contents for Cross Technologies 2016-8085

  • Page 1 Cross Technologies, Inc. for purposes of operating the equipment. When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

  • Page 2: Table Of Contents

    All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be liable for any special, indirect, or consequential damages.

  • Page 3: Model 2016-8085 Downconverter

    1.1 Equipment Description The 2016-8085 Downconverter converts 8.0 to 8.5 GHz to 70 ± 18 MHz in 125 kHz steps (1 kHz steps, option X1006) with low group delay and flat frequency response. Synthesized local oscillators (LO) provide low phase noise and ±0.01 ppm stability frequency selection.

  • Page 4: Technical Characteristics

    1.2 Technical Characteristics TABLE 1.0 2016-8085 Downconverter Specifications* Input Characteristics (RF) Impedance / Return Loss 50Ω / 20 dB typical; 18 dB minimum Frequency 8.0 to 8.5 GHz Nosie Figure, maximum 15 dB (maximum gain) Level Range -70 to -40 dBm...
  • Page 5 50Ω Type N (RF), 50Ω BNC (IF) 50Ω SMA (RF), 50Ω BNC (IF) - S7 50Ω SMA (RF), 75Ω BNC (IF) Contact Cross for other options. *10˚C to 40˚C; Specifications subject to change without notice ® 2022 Cross Technologies, Inc. 2016-8085 Manual_Rev. 0 Page 5 05/10/22...

  • Page 6: Monitor & Control Interface

    A) Remote serial interface Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit. (RS-232C, RS-422, or RS-485 - option -Q) M&C Cable Diagram - Cross Technologies Frequency Converters Male DB-9 Female DB-9 2015/16/17 M&M&C...
  • Page 7 B) Status Requests Table 1.1 lists the status requests for the 2016-8085 and briefly describes them. PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below, should be used ONLY when RS-485, (OPTION-Q), is selected. TABLE 1.1 2016-8085 Status Requests/Inquires TABLE 1.1 2016-8085 Status Requests/Inquires...
  • Page 8 C) Commands - Table 1.1 lists the commands for the 2016-8085 and briefly describes them. After a command is sent, the 2016-8085 sends a return “>” indicating the command has been received and executed. General Command Format - The general command format is {aaCND...}, where:...
  • Page 9 (Continued from page 8)... Table 1.2 2016-8085 Commands, (continued)... Table 1.2 2016-8085 Commands, (continued)... Table 1.2 2016-8085 Commands, (continued)... Command Syntax* Description Set Remote Off {aaCR0} Where: • aa = unit address, range = 00 to 31, only used if interface is RS485, otherwise omit.

  • Page 10: Environmental Use Information

    G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed. If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems. 2016-8085 Manual_Rev. 0 Page 10 05/10/22...

  • Page 11: Installation

    2.1 Mechanical The 2016-8085 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 2016-8085 can be secured to a rack using the 4 holes on the front panel.

  • Page 12: Front Panel Controls & Indicators

    Menu items when in program mode. Does not which values are being adjusted. Does function in the normal display mode not function in the normal display mode FIGURE 2.3 2016-8085 Front Panel Controls and Indicators 2016-8085 Manual_Rev. 0 Page 12 05/10/22...

  • Page 13: Operation

    2.4 Operation 2.4.1 Installing and Operating the 2016-8085 Downconverter 1. Connect a -70 dBm to -40 dBm signal to RF IN, J2 (Figure 2.2) 2. Connect the IF OUT, J1, to the external equipment 3. Connect 100- 240 ± 10% VAC, 47 - 63 Hz to AC on the back panel.

  • Page 14: Menu Settings

    If programming is initiated and no operator action takes place for approximately 30 seconds (before the final press of the Menu/Execute switch) the display will revert to its previous status and you will need to start over. 2016-8085 Manual_Rev. 0 Page 14 05/10/22...
  • Page 15 During frequency, gain changes, the vertical movement will raise or lower the number in the direction of the arrows. b. For other functions such Mute on/off, the vertical switch will alternately turn the function on or off regardless of the direction operated. 2016-8085 Manual_Rev. 0 Page 15 05/10/22...
  • Page 16 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to this: F = 8150.125 G=30 REF = INT Figure 2.5 gives the menu items and how to make changes. 2016-8085 Manual_Rev. 0 Page 16 05/10/22...
  • Page 17 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to this: F = 8150.125 G=30 REF = INT Figure 2.5 gives the menu items and how to make changes. 2016-8085 Manual_Rev. 0 Page 17 05/10/22...
  • Page 18 (option -Q ONLY) SCROLL PUSH BUTTON Save Settings? At the end or SAVE SETTINGS? SCROLL <> PUSH BUTTON when “R” is selected from any of the above menus FIGURE 2.5 Menu Display and Sequence 2016-8085 Manual_Rev. 0 Page 18 05/10/22...
  • Page 19 +3, +/-3 dBm. If the External 10 MHz signal does not meet the unit’s specified parameters then the unit will not function properly. The External Reference is present on the Reference Output connector, J18. 2016-8085 Manual_Rev. 0 Page 19 05/10/22...
  • Page 20 ROSS ECHNOLOGIES, INC. 6170 Shiloh Road Alpharetta, Georgia 30005 (770) 886-8005 FAX (770) 886-7964 Toll Free 888-900-5588 WEB www.crosstechnologies.com E-MAIL info@crosstechnologies.com 2016-8085 Manual_Rev. 0 Page 20 05/10/22...
