Altronix WPTV248UL Series Installation Manual page 9

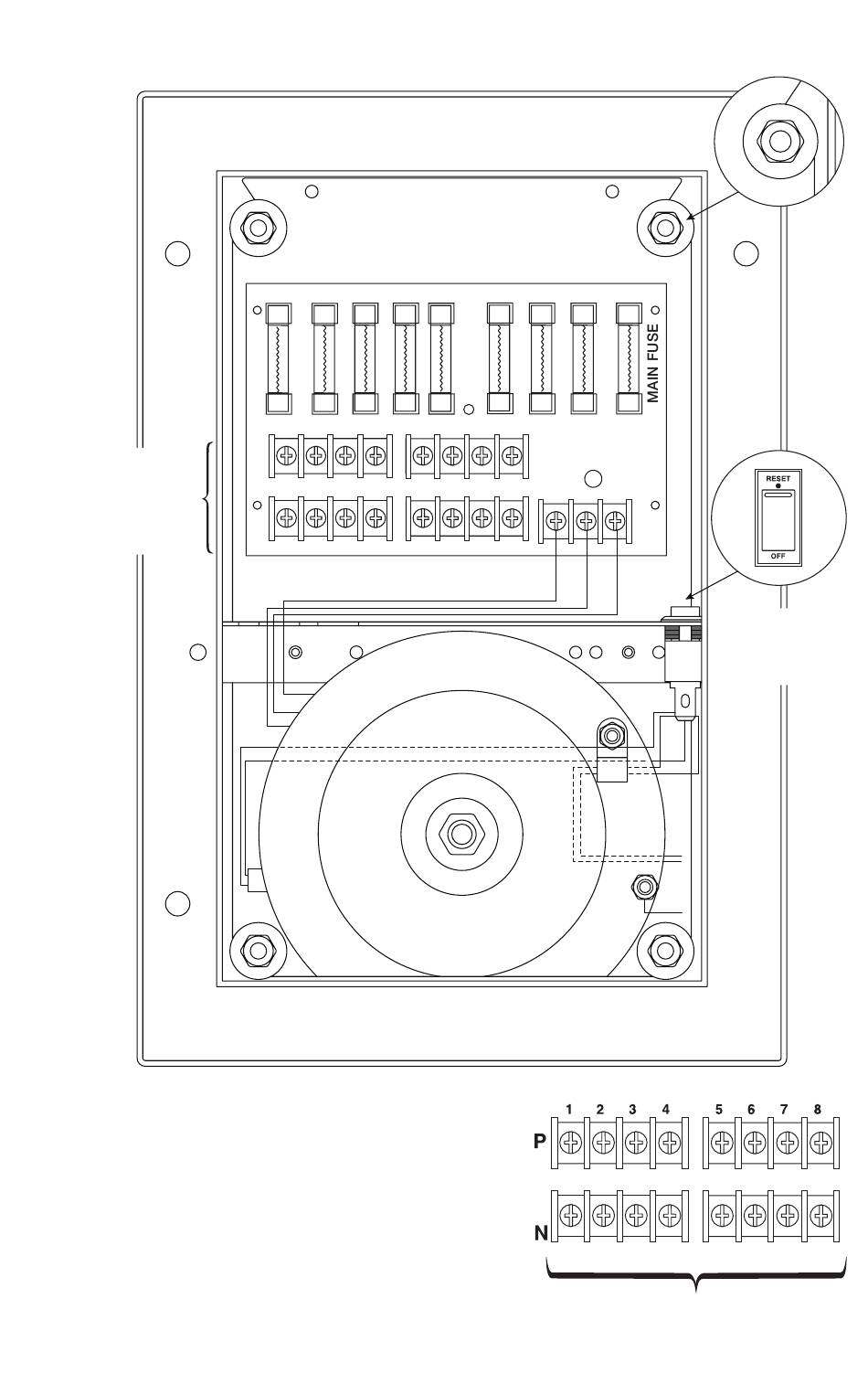

Fig. 6
WPTV248300UL
24VAC or 28VAC Output 1
Follow same procedure
using terminals
2P & N through 8P & N
for outputs 2 through 8)
- 9 -
1 2 3 4
P
FUSED POWER OUTPUTS
N
COMMON POWER OUTPUTS
Class 1 Outputs
5 6 7 8
PD8
PD8
N P
LED
INPUT
S
Illuminated
Power Disconnect
Circuit Breaker
with manual reset
Input
115VAC
50/60Hz
Green
Ground
Wire
Terminal Blocks for Fig. 6
24VAC or 28VAC
fused or PTC protected outputs
1 through 8.
Fig. 6a
Fig. 6b
WPTV248UL Series
