Altronix WPTV248UL Series Installation Manual page 8

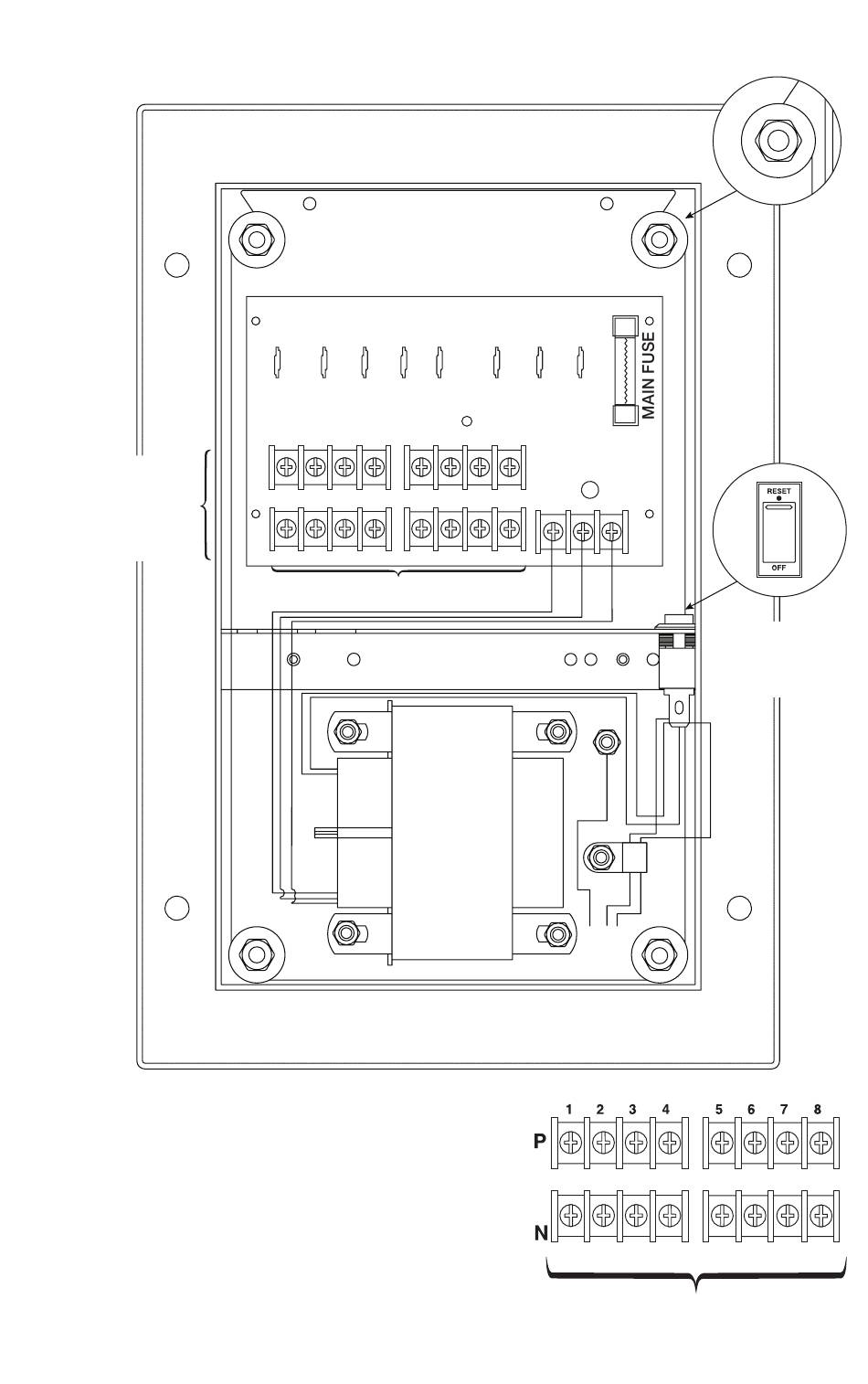

Fig. 5
WPTV248175ULCB
24VAC or 28VAC Output 1
Follow same procedure
using terminals
2P & N through 8P & N
for outputs 2 through 8)
- 8 -
1 2 3 4
P
FUSED POWER OUTPUTS
N
COMMON POWER OUTPUTS
24VAC: Class 2 Not Wet/Class 3 Wet
28VAC: Class 1
5 6 7 8
PD8
N P
Green
Ground
Wire
Input
115VAC
50/60Hz
LED
INPUT
S
Illuminated
Power Disconnect
Circuit Breaker
with manual reset
Terminal Blocks for Fig. 5
24VAC or 28VAC
fused or PTC protected outputs
1 through 8.
Fig. 5a
Fig. 5b
WPTV248UL Series
