Altronix WPTV248UL Series Installation Manual page 5

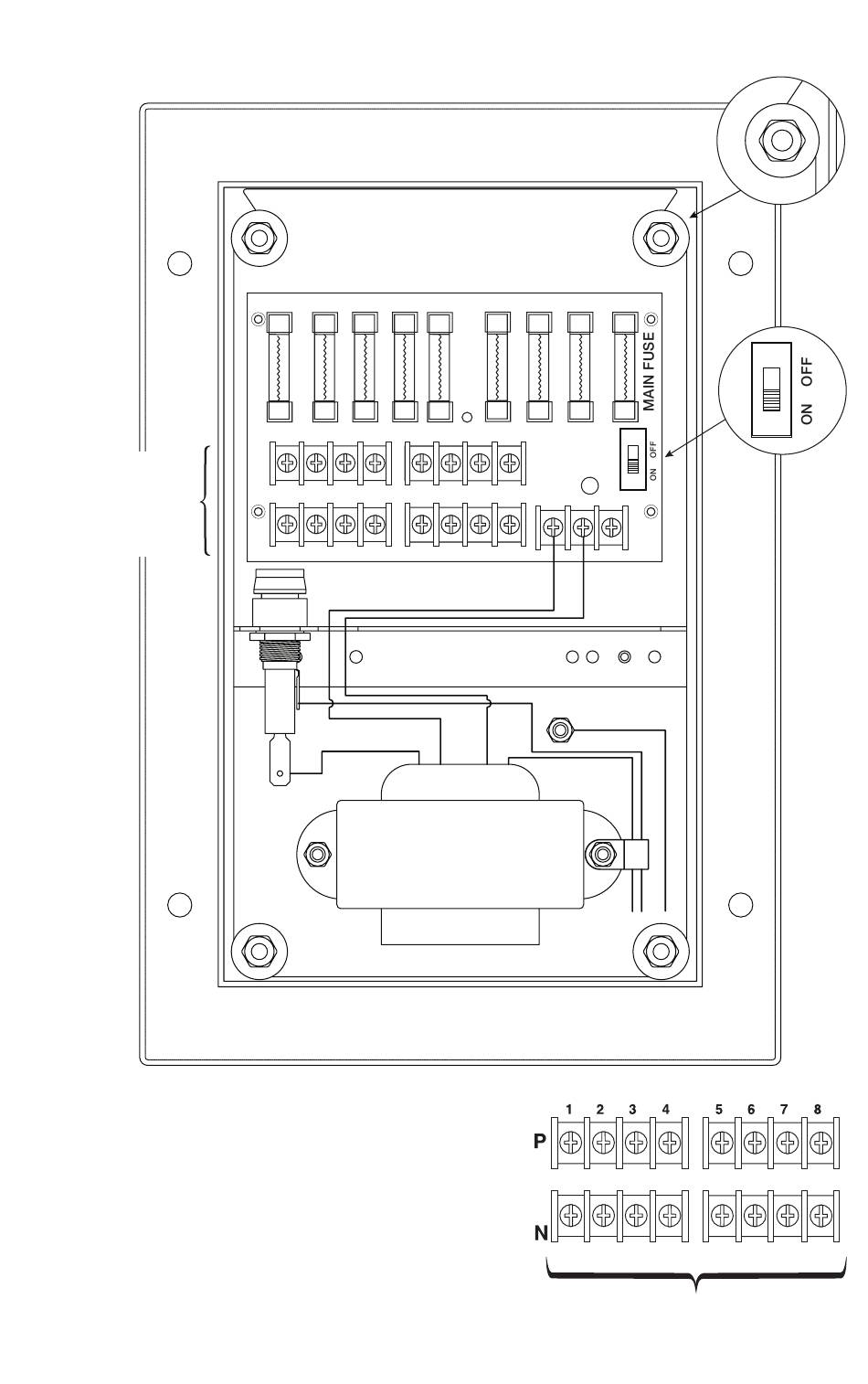

Fig. 2
WPTV248UL
24VAC or 28VAC Output 1
Follow same procedure
using terminals
2P & N through 8P & N
for outputs 2 through 8)
WPTV248UL Series
1 2 3 4
P
FUSED POWER OUTPUTS
N
COMMON POWER OUTPUTS
Class 1 Outputs
5 6 7 8
PD8
N P
Green
Ground Wire
Input
115VAC
50/60Hz
LED
INPUT
S
Terminal Blocks for Fig. 2
24VAC or 28VAC
fused or PTC protected outputs
1 through 8.
Fig. 2a
Fig. 2b
- 5 -
