3. Connection & Installation
This section provides information about the connection and installation
of the Amcrest Outdoor PTZ camera.
Note: This is a POE+ device and requires a POE+ compatible
router/switch to function.

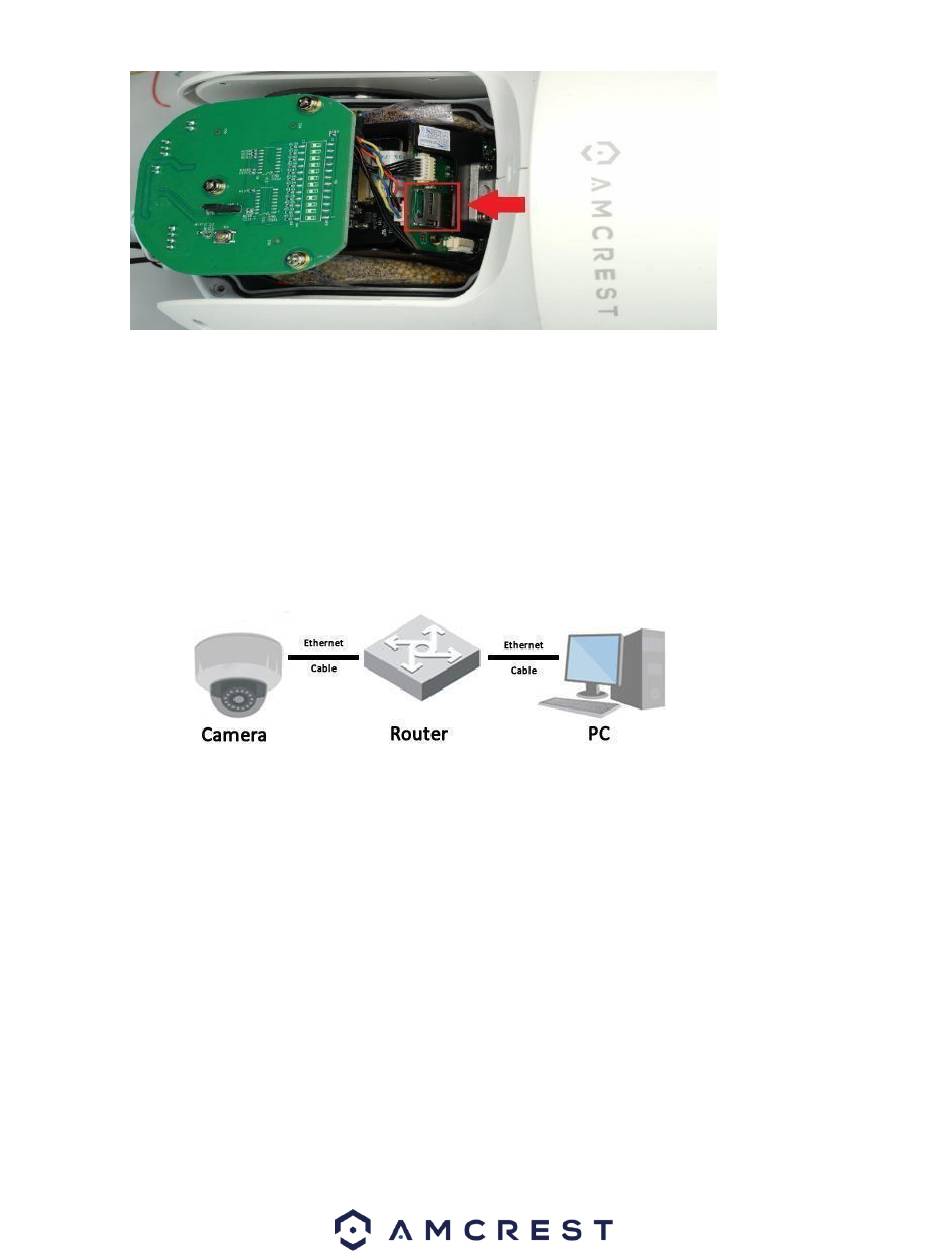

3.1 Connection Guide

The camera initially should be connected via the following method:

3.2. Installation Guide

Important Notice: Prior to installation ensure that the installation
environment can support at least 3 times the weight of the camera.
When accessing your camera, you will notice a few additional wiring
connections associated with the device. These connections contain a
power connection and ground, an Ethernet connection, audio wires, and
alarm wiring.
POWER - This connection is optional for this device since the device
will draw power via an Ethernet cable (PoE) however, the option is
there. The camera will require a basic 12V DC power adapter. This wire
also has a optional grounding (EARTH) wire for additional grounding of
the unit.
Ethernet Connection - This connection is used to transmit data and transmit PoE power
to the unit. The unit is PoE + (802.3af) compatible.
