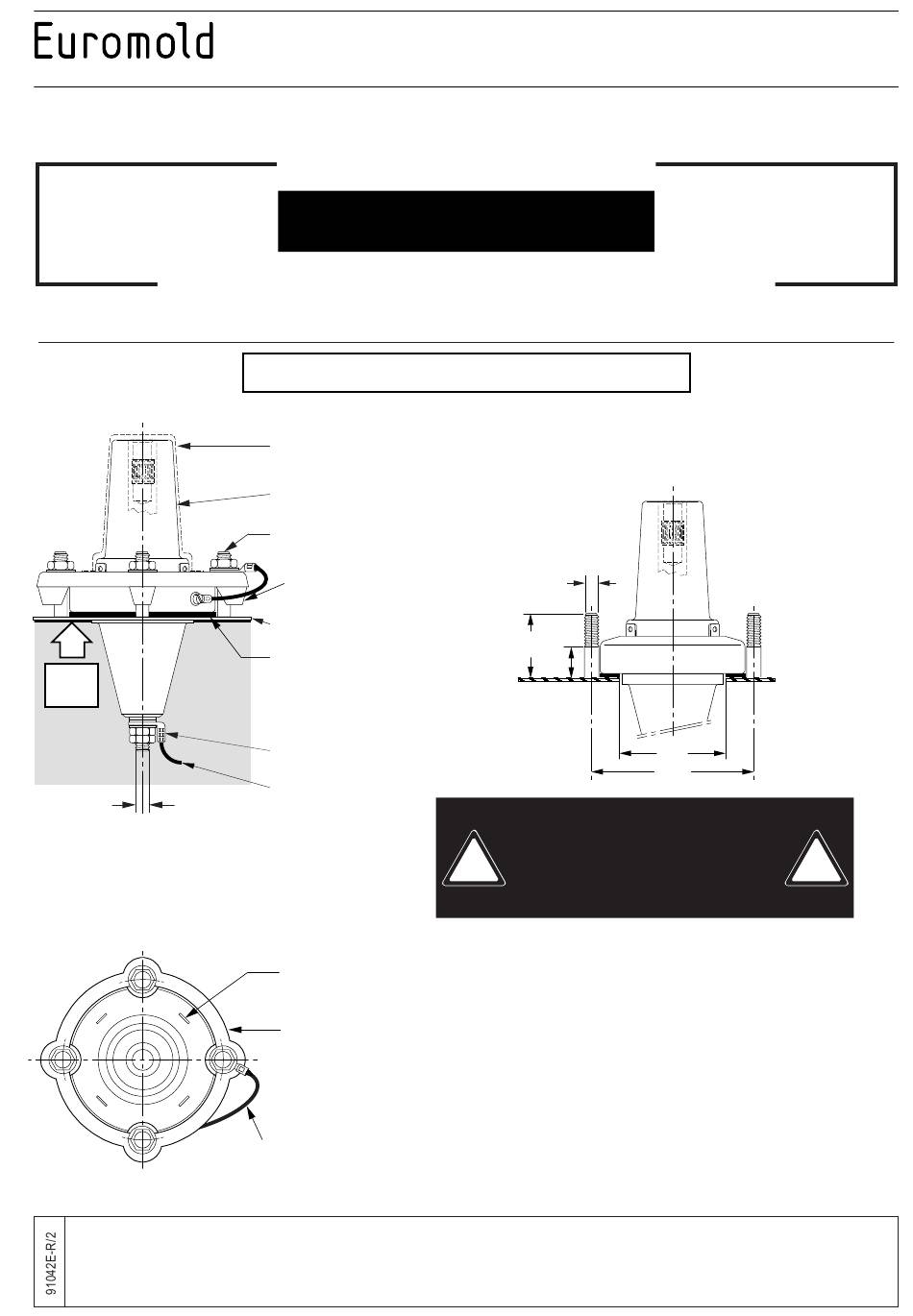

Nexans 400AR-8 Installation Instructions

a Nexans company
CAUTION : Read instructions thoroughly and completely prior to beginning installation.

Equipment Bushings - Type B interface

OIL
LEVEL
M10
Tighten nuts using a key of 17 mm.
Tightening torque : 16 Nm
(1,6 kgm or 11,6 Foot-pounds).
This product should be installed only by competent personnel trained in good safety practices involving high voltage electrical equipment. These instructions are not intended as a
substitute for adequate training or experience in such safety practices. These instructions do not attempt to provide for every possible contingency.
Failure to follow these instructions could result in damage to the product and serious or fatal injury.
IMPORTANT : Cable and associated apparatus must be de-energised, locked out, and tagged prior to product installation.
Installation Instructions
(K)(M)400AR-8
250 A - Up to 36 kV

Typical fixing with ring clamp DIN 42 538

protective cap
bushing interface
4 x stud M10
E DIN 42 538
clamp
equipment
gasket
equipment
connection
flexible connection
tabs for
bail restraint
A DIN 42 538
fixing flange
bushing screen
earth connection
(earthing jumper)
(K),(M)400AR-8/J equipment
bushing with earthing jumper
M10
min.
55
max.
20
FOR INFORMATION ONLY
Please always use the
!
instruction supplied
in the kit

IMPORTANT NOTES :

- Euromold bushings are supplied with protective caps over the mating
interface offering protection against mechanical damage and the ingress of
any contaminant. Under no circumstances should this shipping cap be
considered as an electrical dead-ending device.
- Euromold bushings should never be energised in isolation neither should
they be disconnected whilst energised. They should always be connected
to one of the recommended mating parts or the electrical dead-ending
device : 4000DR, K400DR, M400DR, 400DR/G, K400DR/G or M400DR/G.
- Do not paint the interface.
- Fixing devices are not supplied.
IS 400AR-8-E
Page 1 of 2 - 12 February 2010
Supersedes edition of 3 February 2010
Dia. 78
Dia. 123
!
