PRINTER AXES ORIENTATION

The origin of the printer axes, referred to as the Home position, is the front left corner of the printing table..

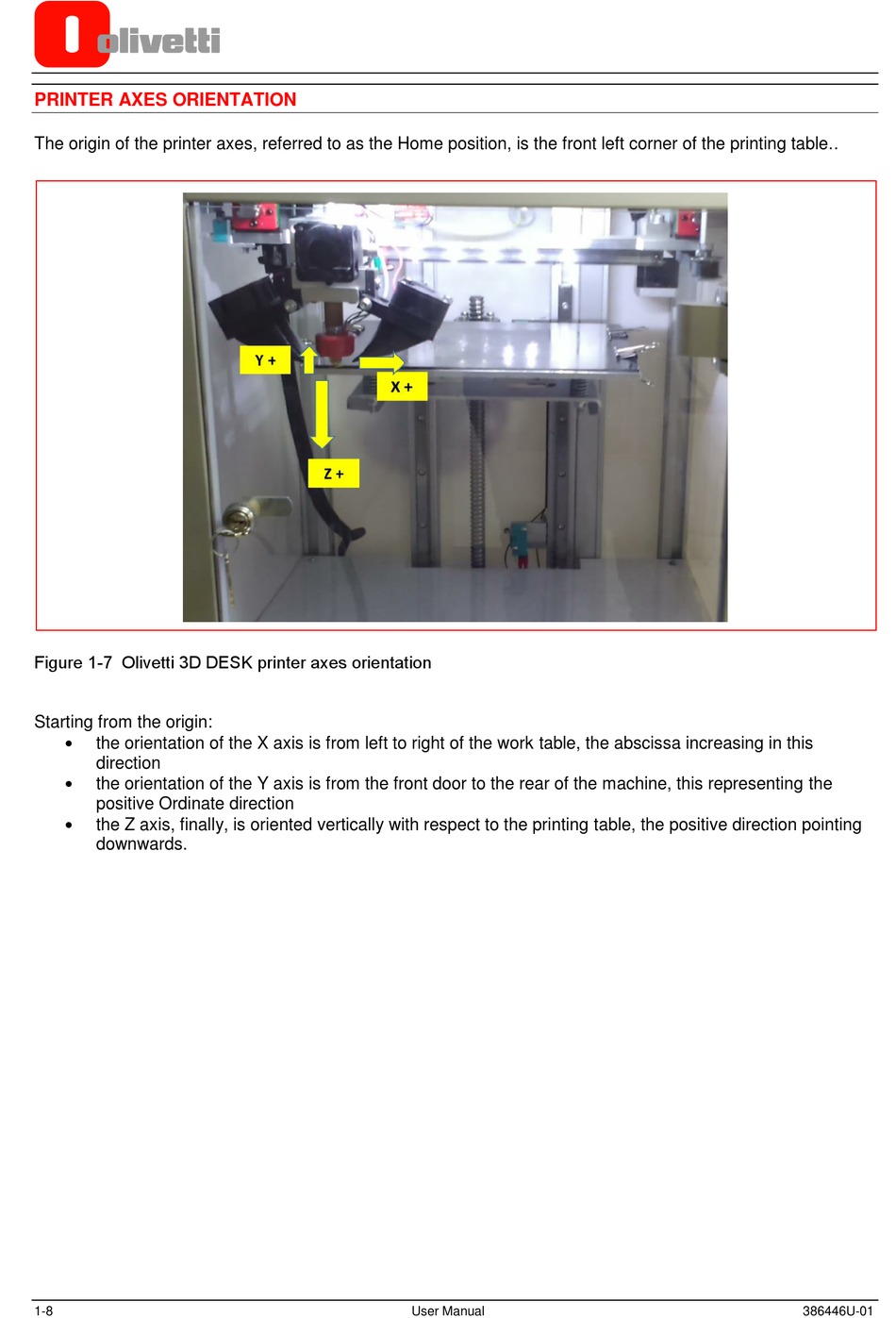

Figure 1-7 Olivetti 3D DESK printer axes orientation
Starting from the origin:

the orientation of the X axis is from left to right of the work table, the abscissa increasing in this
direction

the orientation of the Y axis is from the front door to the rear of the machine, this representing the
positive Ordinate direction

the Z axis, finally, is oriented vertically with respect to the printing table, the positive direction pointing
downwards.
