INSTALLATION

DIN REAR-MOUNT (Method B)

3
6
5

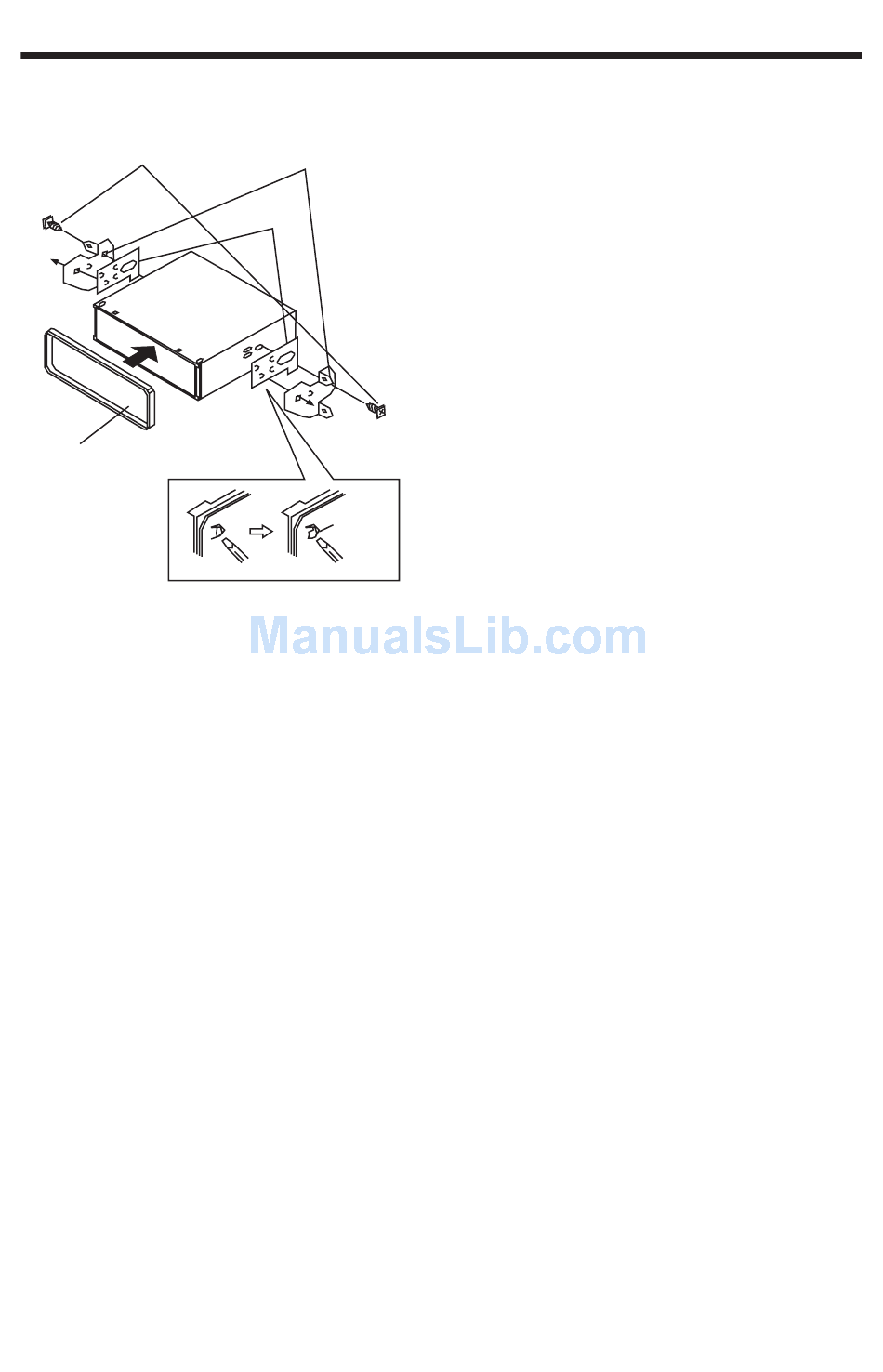

1. Factory-installed radio bracket
2. Car radio mounting bracket
3. Screw
4. After aligning the car radio mounting
bracket with the factory-installed radio
bracket, tighten the screws (M5x4mm)
at 2 places on each side.
5. When fixing factory-installed radio
bracket with the screws, use a
standard-tipped screwdriver to pry the
tabs of the car radio mounting bracket
to make them fit into the holes in the
factory-installed radio bracket.
6. Movable panel frame
1
2
4
Tab
5
