3.3.2 Supply Voltage and Current Requirements

Supply
+5V
+15V
-15V

3.3.3 Connecting To A Standalone Power Supply

The unit must be connected only to a DC supply as detailed in Section
3.3.2. Connection to a supply of a different rating may cause damage to
Do not connect the T-Cube unit to a 'live' external power supply. Doing so (i.e.
"hot plugging") carries the risk of PERMANENT damage to the unit. Always
ensure the DC power supply unit is isolated from the mains before connecting
to the T-Cube unit. Always power up the units by connecting their power
supply to the mains. Similarly, to power down the unit, disconnect the power
supply from the mains before disconnecting the T-Cube.
1) Using the front panel connector as shown above, connect the unit to a regulated
DC power supply of the rating detailed in Section 3.3.2.
2) Switch on the Power Supply unit.
3)
Thorlabs offers a compact, two-way power supply unit (TPS002), allowing up to two
position aligner or Piezo driver T-Cubes to be powered from a single mains outlet.
However, if an external supply is to be used, see Appendix A.1 for power supply
connector pin out details.
16
Minimum
+4.9V
+14.5V
-14.5V
the unit and could result in injury to the operator.

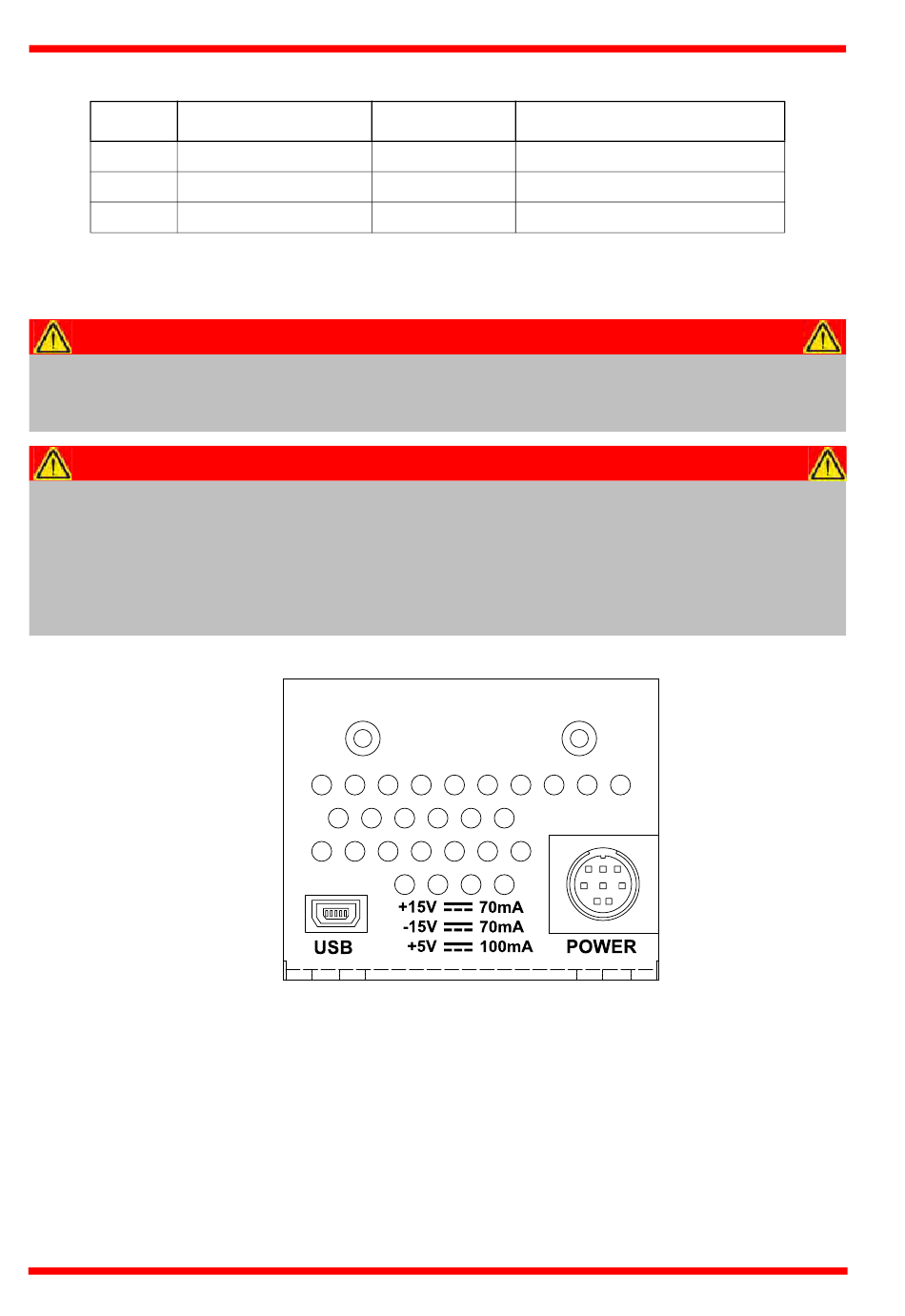

Fig. 3.3 Front Panel Power Supply Connector
Maximum Max Operating Current
+5.1V
+15.5V
-15.5V
Warning
Caution
TPA101
100 mA
70 mA
70 mA
