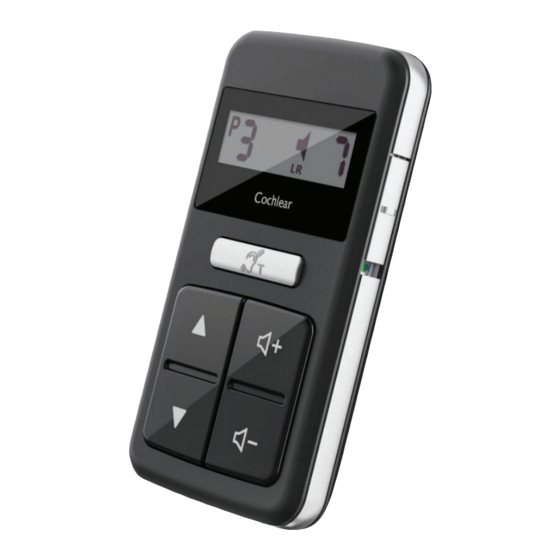

Cochlear CR310 User Manual

Hide thumbs Also See for CR310:
Table of Contents

Advertisement

Quick Links

See also: Quick Manual
CR310
Remote Control
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cochlear CR310

Summary of Contents for Cochlear CR310

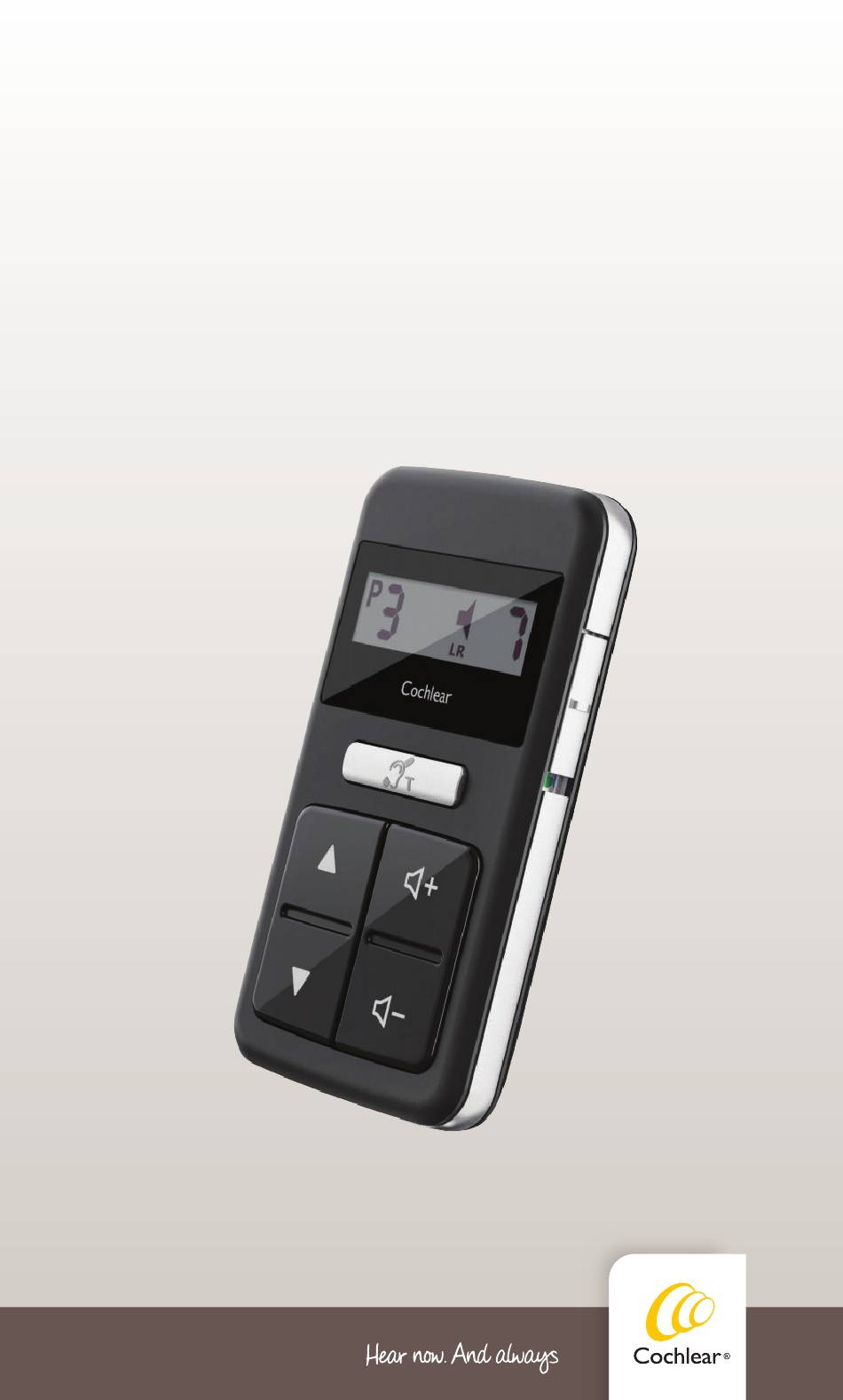

  • Page 1 CR310 Remote Control User Guide...
  • Page 2 If you have two Nucleus 7 Sound Processors (bilateral), your remote control can communicate with both processors at once. This guide is intended for Cochlear implant recipients and their carers using the Nucleus 7 Sound Processor. For more information, refer to the Nucleus 7 Sound Processor User Guide.
  • Page 3 Volume or Next sensitivity up program button button Previous Volume or program button sensitivity down button Pin for attaching lanyard Other indicators on your remote control Telecoil on Low battery in Accessory on remote control CR310 REMOTE CONTROL USER GUIDE...

  • Page 4: Table Of Contents

    ..... Travel ......CR310 REMOTE CONTROL USER GUIDE...
  • Page 5 ... Troubleshoot ..Warnings ... Other information ..CR310 REMOTE CONTROL USER GUIDE...

  • Page 6: Battery

    Keep out of reach of children. Keep in original packaging until ready to use. Dispose of used batteries immediately. 1. Unlock the battery cover by turning the screw anticlockwise with a small Phillips head (cross-head) screwdriver. CR310 REMOTE CONTROL USER GUIDE...
  • Page 7 4. Replace the battery cover, bottom edge first. 5. Lock the battery cover in place by turning the screw clockwise with a small Phillips head screwdriver until tight. CR310 REMOTE CONTROL USER GUIDE...

  • Page 8: Turn On

    Turn on Slide the switch up to turn on. When the switch is in the up position, the remote control will “go to sleep” when not in use. Press any button to “wake” it again. CR310 REMOTE CONTROL USER GUIDE...

  • Page 9: Turn Off

    Turn off your remote control to stop it “waking” when not in use, for example, when carried in your pocket. Out of range If your processor is out of range or experiencing interference, the remote control displays dashes (shown at left). CR310 REMOTE CONTROL USER GUIDE...

  • Page 10: Pair

    Pair your processor and remote control 1. Turn off your processor and remote control. 2. Turn on your processor and remote control. They must both be “awake” and on at all times while pairing. CR310 REMOTE CONTROL USER GUIDE...
  • Page 11 4. The remote control will show pairing in progress. 5. The remote control then shows successful pairing of either left (L) or right(R) processor. 6. If you have two processors (bilateral), repeat steps 1-5 for your second processor. CR310 REMOTE CONTROL USER GUIDE...

  • Page 12: Change Programs

    Your clinician may program your processor with up to four programs which you can choose with your remote control. Press to move up to the next program Press to move down to the previous program CR310 REMOTE CONTROL USER GUIDE...
  • Page 13 When you turn on your remote, it always displays the current settings (e.g. volume), even if you have adjusted those settings using the processor button (or the Nucleus Smart App), while the remote was off. CR310 REMOTE CONTROL USER GUIDE...

  • Page 14: Adjust Volume Or Sensitivity

    You can set Volume up to level 10 or Sensitivity up to level 21. Press to turn up the volume or sensitivity Press to turn down the volume or sensitivity CR310 REMOTE CONTROL USER GUIDE...

  • Page 15: Wireless Accessories

    Wireless accessories If you use Cochlear True Wireless Accessories with your ™ processor, your remote control can be used to control the wireless accessory and monitor its status. NOTE Before you can stream audio, you must first pair the wireless accessory to your processor.

  • Page 16: Telecoil

    You can not use telecoil at the same time as a wireless accessory. NOTE For phone use we recommend the Cochlear Wireless Phone Clip (see the True Wireless Accessories User Guide) or a compatible iPhone® (see the Nucleus 7 Sound Processor User Guide).

  • Page 17: Fm Accessory

    Your remote control transmits high frequency radio waves when switched on. Place it in a flight-safe mode (e.g. turn it off) during takeoff and landing. Check with airline staff before flying if you are unsure. CR310 REMOTE CONTROL USER GUIDE...

  • Page 18: Clean

    Clean your remote control by wiping the display and buttons with a soft dry cloth. If your remote control gets wet 1. Dry the remote control with a soft dry cloth. 2. Remove the battery. See Change the battery on page 4. CR310 REMOTE CONTROL USER GUIDE...
  • Page 19 (e.g. hairdryer) to dry the remote control. 4. Insert a new battery. See Change the battery on page 4. NOTE Before replacing the battery, check for any remaining moisture. If moisture remains, repeat the earlier steps. CR310 REMOTE CONTROL USER GUIDE...

  • Page 20: Troubleshoot

    8. Remote control shows • Contact your clinician. pairing error Remote control won’t • Replace the battery. See Change turn on or ‘wake up’ the battery on page 4. (display remains blank) CR310 REMOTE CONTROL USER GUIDE...
  • Page 21 Telecoil button doesn’t • Check that the wireless accessory is start/stop streaming turned on. audio from a wireless • Make sure the wireless accessory is accessory paired to your processor(s). CR310 REMOTE CONTROL USER GUIDE...

  • Page 22: Warnings

    • Use a soft dry cloth ONLY to clean the surface of your remote control. • Do not use alcohol, household cleaners or abrasive materials to clean your remote control. • Do not bend or compress the display on your remote control. CR310 REMOTE CONTROL USER GUIDE...
  • Page 23 (such as the Wireless Programming Pod) are MR Unsafe. Full MRI safety information is available at www.cochlear.com/warnings or by calling your regional Cochlear office (contact numbers available at the end of this document). CR310 REMOTE CONTROL USER GUIDE...

  • Page 24: Other Information

    • a display for indicating system status and activity • in-built coil sensor • lanyard pin. Materials The remote control housing and buttons are made of polycarbonate and acrylonitrile butadiene styrene (ABS). The display is made of ABS. CR310 REMOTE CONTROL USER GUIDE...
  • Page 25 Operating relative humidity 0% RH 90% RH Operating pressure 700 hPa 1060 hPa Dimensions COMPONENT LENGTH WIDTH DEPTH CR310 Remote Control 66.0 mm 36.5 mm 10.6 mm Weight COMPONENT WEIGHT CR310 Remote Control (with battery) 35 g CR310 REMOTE CONTROL USER GUIDE...
  • Page 26 2.12 – 3.00 V Button and switch functions Remote control lock and unlock, telecoil/wireless accessories on and off, program adjust, volume or sensitivity settings adjust Remote communication range At least 2 m Display Custom, icon based monochrome CR310 REMOTE CONTROL USER GUIDE...
  • Page 27 Radio compliance for Japan This device is granted pursuant to the Japanese Radio Law ) and the Japanese Telecommunications Business Law ( This device should not be modified (otherwise the granted designation number will become invalid). 203-JN0605 CR310 REMOTE CONTROL USER GUIDE...
  • Page 28 • This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by Cochlear Limited may void the FCC authorisation to operate this equipment. CR310 REMOTE CONTROL USER GUIDE...
  • Page 29 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC ID: WTO-CR310 ISED: 8039A-CR310 CAN ICES-3 (B)/NMB-3(B) CR310 REMOTE CONTROL USER GUIDE...
  • Page 30 Manufacturer Compatible sound processors Authorised representative in the European Community Catalogue number Serial number Batch code Date of manufacture Temperature limits CE registration mark with notified body number  CR310 REMOTE CONTROL USER GUIDE...
  • Page 31 Keep dry. Legal statement The statements made in this guide are believed to be true and correct as of the date of publication. However, specifications are subject to change without notice. © Cochlear Limited 2017 CR310 REMOTE CONTROL USER GUIDE...
  • Page 32 Cochlear AG EMEA Headquarters, Peter Merian-Weg 4, 4052 Basel, Switzerland Tel: +41 61 205 8204 Fax: +41 61 205 8205 Cochlear Europe Ltd 6 Dashwood Lang Road, Bourne Business Park, Addlestone, Surrey KT15 2HJ, United Kingdom Tel: +44 1932 26 3400 Fax: +44 1932 26 3426 Cochlear Benelux NV Schaliënhoevedreef 20 i, B-2800 Mechelen, Belgium...
