DRAFT ONLY FOR CLINICAL TESTING
Nucleus® 7
Remote Control
User Guide
CR310

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nucleus 7 and is the answer not in the manual?

Questions and answers

Related Manuals for Cochlear Nucleus 7

Summary of Contents for Cochlear Nucleus 7

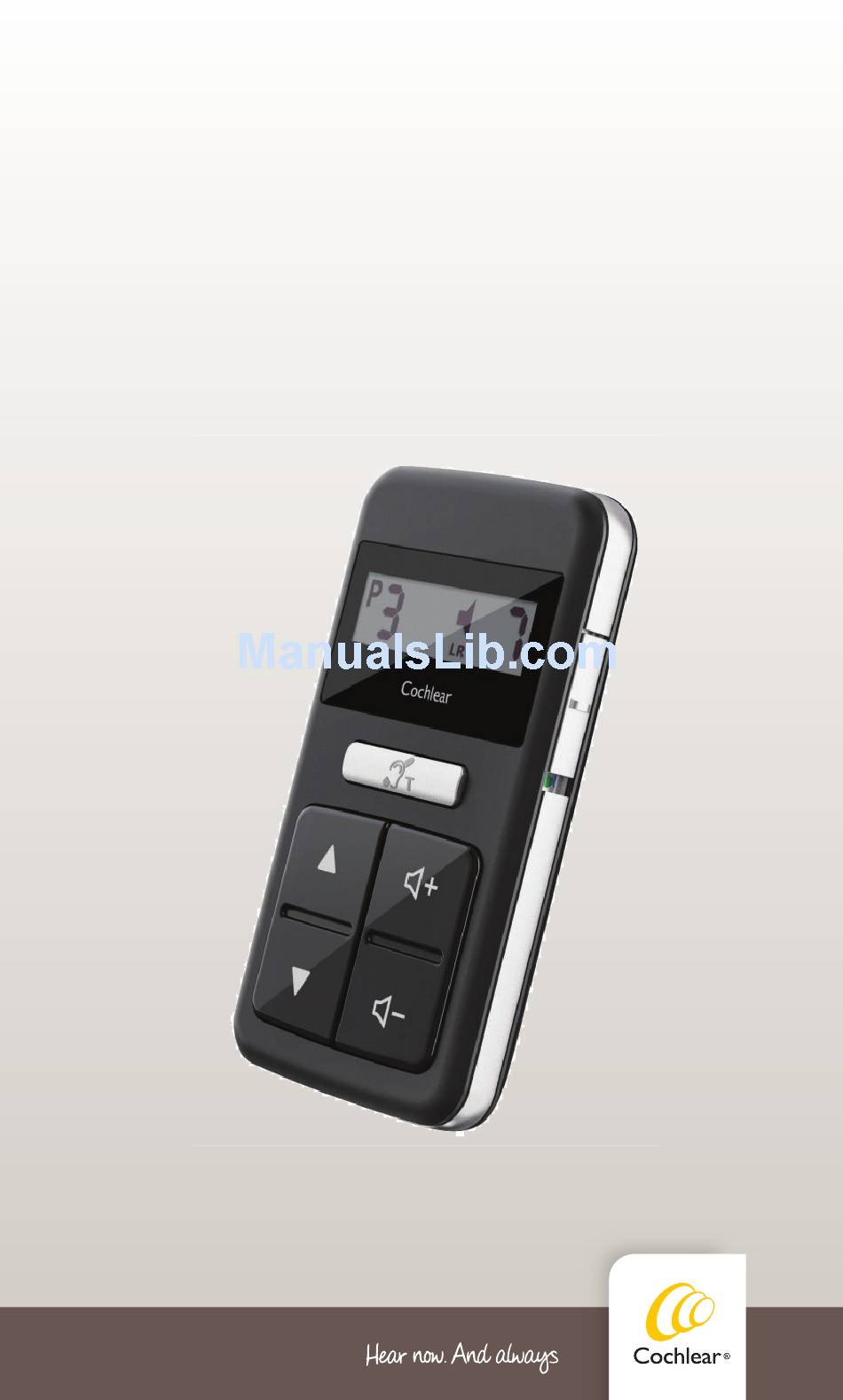

  • Page 1 DRAFT ONLY FOR CLINICAL TESTING Nucleus® 7 Remote Control User Guide CR310...
  • Page 2 ™ • turn telecoil on and off. If you have two Nucleus 7 Sound Processors (bilateral), your remote control can communicate with both processors at once. This guide is intended for Cochlear implant recipients and their carers using the Nucleus 7 Sound Processor. For more information, refer to the Nucleus 7 Sound Processor User Guide.

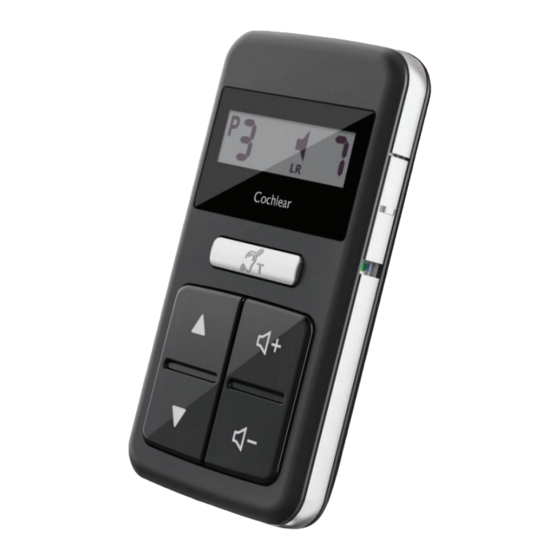

  • Page 3 DRAFT ONLY FOR USABILITY TESTING Nucleus 7 Remote Control Volume or sensitivity Program Processor(s) paired On/Off Telecoil switch button Volume or Next sensitivity up program button button Previous Volume or program button sensitivity down button Pin for attaching lanyard Other indicators on your remote control...
  • Page 4 DRAFT ONLY FOR USABILITY TESTING Battery CAUTION Use ONLY disposable CR2032 or 5004LC 3V standard lithium coin cell batteries in your remote control. NEVER use rechargeable coin cell batteries or other battery types. NUCLEUS 7 REMOTE CONTROL USER GUIDE ®...
  • Page 5 DRAFT ONLY FOR USABILITY TESTING Travel Your remote control transmits high frequency radio waves when switched on. Switch it off before takeoff and landing. NUCLEUS 7 REMOTE CONTROL USER GUIDE ®...
  • Page 6 DRAFT ONLY FOR USABILITY TESTING Pair Pairing allows two devices to communicate with each other. Your clinician may have already paired your remote control with your processor. If not, you will need to pair it the first time you use it. If your remote control is not paired to any processor, it displays dashes (shown left)
  • Page 7 DRAFT ONLY FOR USABILITY TESTING 3. The remote control will show pairing in progress. 4. The remote control then shows successful pairing of either left (L) or right(R) processor. 5. If you have two processors (bilateral), repeat steps 2-4 for your second processor.

  • Page 8: Wireless Accessories

    DRAFT ONLY FOR USABILITY TESTING Wireless accessories If you use Cochlear True Wireless Accessories with your ™ processor, your remote control can be used to control the wireless accessory and monitor its status. NOTE Before you can stream audio, you must first pair the wireless accessory to your processor.
  • Page 9 You can not use telecoil at the same time as a wireless accessory. NOTE We recommend you use a Cochlear Wireless Phone Clip to make phone calls. See the True Wireless Accessories User Guide. Turn telecoil on (if set up) 1.

  • Page 10: Other Information

    DRAFT ONLY FOR USABILITY TESTING Other information Physical configuration The remote control comprises: • analogue and digital integrated circuits based on a micro-processor design, with bidirectional wireless communication capabilities • buttons and a switch for operation of unit • buttons for remote control of sound processor” •...
  • Page 11 LENGTH WIDTH DEPTH Nucleus 7 Remote Control 66.0 mm 36.5 mm 10.6 mm Weight COMPONENT WEIGHT Nucleus 7 Remote Control (with battery) 35 g Operating characteristics CHARACTERISTIC VALUE/RANGE Wireless technology Proprietary low power bidirectional wireless link RF frequency 2.4 GHz...

  • Page 12: Environmental Protection

    DRAFT ONLY FOR USABILITY TESTING Wireless communication link The remote control wireless communication link operates in the 2.4 GHz ISM band using GFSK (Gaussian frequency-shift keying) on 4 channels. The link uses a proprietary bidirectional communication protocol and operates over a distance of up to 2 metres from the processor.

  • Page 13: Certification And Applied Standards

    DRAFT ONLY FOR USABILITY TESTING Certification and applied standards The Nucleus 7 Remote Control fulfils the essential requirements listed in Annex 1 of the EC directive 90/385/EEC on Active Implantable Medical Devices as per the conformity assessment procedure in Annex 2.
  • Page 14 L SB003 Radio compliance for Korea 1. Equipment name/model name: 2. Registration number: MSIP-CRM-COH-CR310 3. Company name: Cochlear Limited 4. Manufactured date: 2016 5. Manufacturer/Country of Origin: Cochlear Limited/Australia WARNING This radio equipment has the possibility of radio interference during operation.
  • Page 15 DRAFT ONLY FOR USABILITY TESTING Changes or modifications made to this equipment not expressly approved by Cochlear Limited may void the FCC authorisation to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
