Summary of Contents for Cochlear CR310

  • Page 1 CR310 Remote Control Quick Guide Getting started Quick reference...
  • Page 2 Cochlear Nucleus 7 Sound Processor (model number: CP1000). NOTE More information and warnings in the CR310 Remote Control User Guide. WARNiNG Swallowing Lithium batteries may lead to serious injury or death. If swallowed, immediately go to a hospital emergency room.

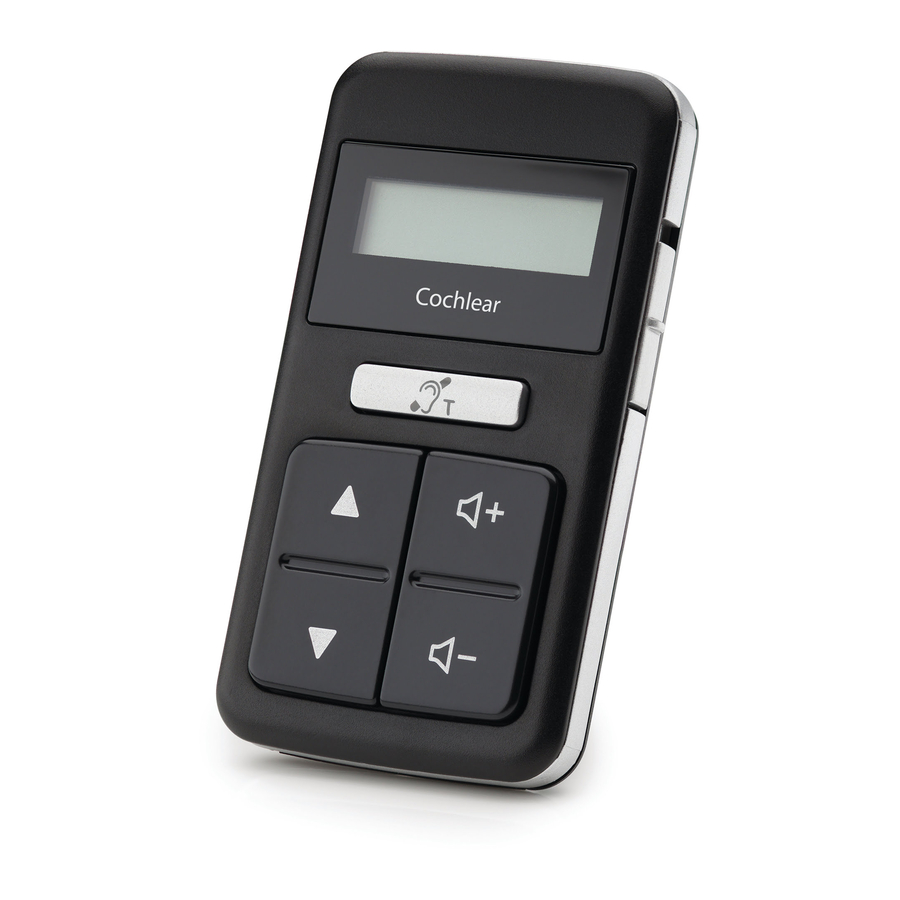

  • Page 3 CR310 Remote Control Volume or sensitivity Program On/Off switch Telecoil Processor(s) button paired Next program button Volume or sensitivity up button Previous program button Volume or sensitivity down Pin for button attaching lanyard QUICK GUIDE...
  • Page 4: Change Battery

    Change battery Change the battery whenever you see the low battery indicator. 1. Unscrew cover with a 2. Remove cover and Phillips head (cross- old battery. head) screwdriver. CR310 REMOTE CONTROL...
  • Page 5 CAUTiON Use ONLY disposable CR2032 or 5004LC 3V standard lithium coin cell batteries in your remote control. 3. Carefully 4. Replace 5. Screw cover insert new cover, back on. battery, plus bottom edge “+” side up. first. QUICK GUIDE...
  • Page 6 Turn on Slide the switch up to turn on. CR310 REMOTE CONTROL...
  • Page 7: Turn Off

    Turn off Slide the switch down to turn off. QUICK GUIDE...
  • Page 8 Pairing allows two devices to communicate with each other. When display 1. Turn your 2. Place the coil shows remote processor on the back control is not and remote of your paired: control off, remote then on. control. CR310 REMOTE CONTROL...
  • Page 9 3. Remote 4. Remote 5. If you have a control control second shows shows it’s processor, pairing in paired. repeat steps progress. 1–4. QUICK GUIDE...
  • Page 10: Change Programs

    Change programs Next program Previous program CR310 REMOTE CONTROL...
  • Page 11 Adjust volume/sensitivity Turn up either volume or sensitivity (if available) Turn down volume or sensitivity QUICK GUIDE...
  • Page 12: Wireless Accessories

    Wireless accessories When a Cochlear True Wireless Accessory ™ (Mini Microphone or TV Streamer) is paired with your processor, use your remote control to start and stop streaming audio. Display shows Start streaming: Stop streaming: wireless accessory: Long-press once. Short-press once.
  • Page 13 FM accessory When an FM accessory is connected to your processor, use your remote control to turn the accessory off and back on. Display shows Turn FM Turn FM FM accessory: accessory off: accessory on: Short-press once. Short-press once. QUICK GUIDE...
  • Page 14 Telecoil Listen to room loops with telecoil. Turn telecoil on: Turn telecoil off: Short-press once. Short-press once. CR310 REMOTE CONTROL...
  • Page 15 Care Clean your remote control with a soft dry cloth. Keep your remote control dry. QUICK GUIDE...
  • Page 16 〒113-0033 東京都文京区本郷2-3-7 お茶の水元町ビル Tel: +81 3 3817 0241 Fax: +81 3 3817 0245 www.cochlear.com Cochlear, Hear now. And always, Nucleus, and the elliptical logo are either trademarks or registered trademarks of Cochlear Limited. © Cochlear Limited 2017 594632 ISS2 APR17...
