CR210 Remote Control
for Kanso
™
User Guide
CP950

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR210 and is the answer not in the manual?

Questions and answers

Related Manuals for Cochlear CR210

Summary of Contents for Cochlear CR210

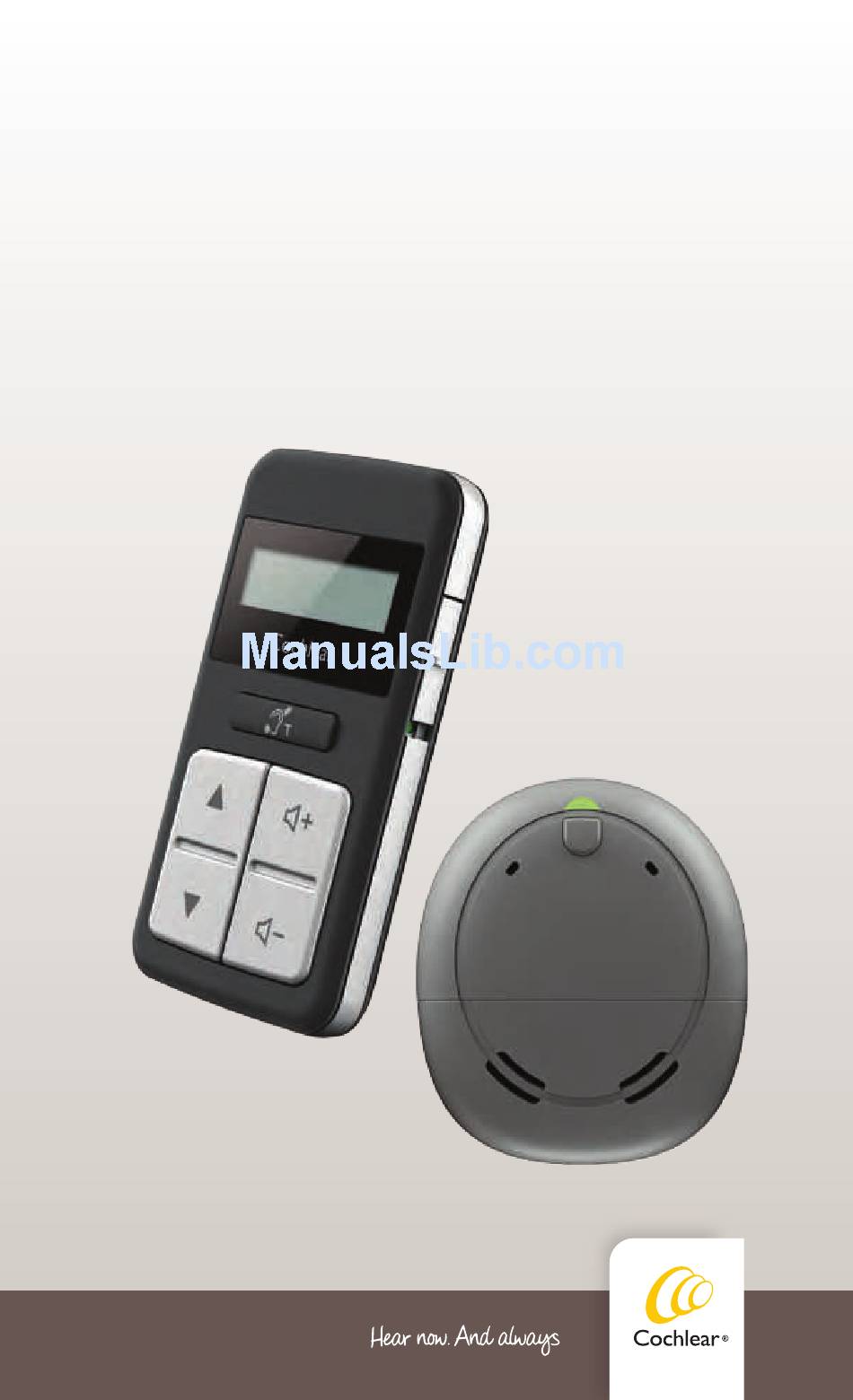

  • Page 1 CR210 Remote Control for Kanso ™ User Guide CP950...
  • Page 2 If you have two processors (bilateral), your remote control can communicate with both processors at once (if compatible). This guide is intended for Cochlear implant recipients and their carers using the Kanso Sound Processor. For more information on your processor, refer to the Kanso Sound Processor User Guide.

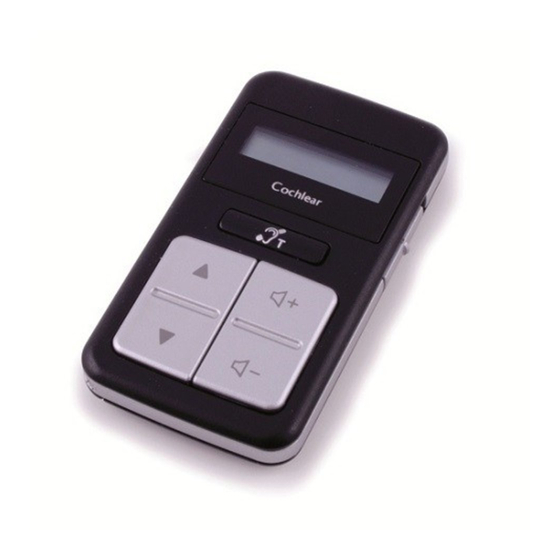

  • Page 3 CR210 Remote Control Volume or sensitivity Program Processor(s) paired On/Off Telecoil switch button Volume or Next sensitivity up program button button Previous Volume or program button sensitivity down button Pin for attaching lanyard Other indicators on your remote control Telecoil on...

  • Page 4: Table Of Contents

    ... . . Telecoil ....CR210 REMOTE CONTROL FOR KANSO ™...
  • Page 5 Care Clean ..... . . If your remote control gets wet ..Troubleshoot ..Warnings .

  • Page 6: Battery

    (if the remote control is used about 15 times a day). Change the battery 1. Unlock the battery cover by turning the screw anticlockwise with a small Phillips head (cross-head) screwdriver. 2. Slide off the battery cover and remove the battery. CR210 REMOTE CONTROL FOR KANSO ™...
  • Page 7 3. Insert the new battery. Make sure the plus sign “+” is facing up. Take care not to damage the battery contacts. CAUTION Use ONLY disposable CR2032 or 5004LC 3V standard lithium coin cell batteries in your remote control. NEVER use rechargeable coin cell batteries or other battery types.

  • Page 8: Turn On

    Turn on Slide the switch up to turn on. When the switch is in the up position, the remote control will “go to sleep” when not in use. Press any button to “wake” it again. CR210 REMOTE CONTROL FOR KANSO ™...

  • Page 9: Turn Off

    Turn off Slide the switch down to turn off. Turn off your remote control to stop it “waking” when not in use, for example, when carried in your pocket. Out of range If your processor is out of range or experiencing interference, the remote control displays dashes (shown at left).

  • Page 10: Pair

    Pair your processor and remote control 1. Turn on your processor and remote control. They must both be “awake” and on at all times while pairing. 2. Place the processor on the back of your remote control. CR210 REMOTE CONTROL FOR KANSO ™...
  • Page 11 3. The remote control will show pairing in progress. 4. The remote control then shows successful pairing of either left (L) or right (R) processor. 5. If you have two processors (bilateral), repeat steps 2-4 for your second processor. USER GUIDE...

  • Page 12: Change Programs

    NOTE Only if both sound processors are compatible with the CR210 Remote Control. Check with your clinician. If your processors have different settings (perhaps because you adjusted one using the processor button), the remote control will display the program and volume/sensitivity settings for the left processor.

  • Page 13: Adjust Volume Or Sensitivity

    Adjust volume or sensitivity Usually, your clinician will set up your remote control to adjust the volume of the sound you hear. But your clinician can set it up to adjust sensitivity instead (if available). Volume is the level of sound you hear. Sensitivity is the range of sounds you hear, for example, soft, background, close or far away.

  • Page 14: Wireless Accessories

    Wireless accessories If you use a Cochlear True Wireless™ Accessory with your processor, your remote control can be used to control the wireless accessory and monitor its status. NOTE Before you can stream audio, you must first pair the wireless accessory to your processor.

  • Page 15: Telecoil

    You can not use telecoil at the same time as a wireless accessory. NOTE We recommend you use a Cochlear Wireless Phone Clip to make phone calls. See the True Wireless Accessories User Guide. Turn telecoil on (if set up) 1.

  • Page 16: Clean

    Clean your remote control by wiping the display and buttons with a soft dry cloth. If your remote control gets wet 1. Dry the remote control with a soft dry cloth. 2. Remove the battery See Change the battery on page 4. CR210 REMOTE CONTROL FOR KANSO ™...
  • Page 17 3. Leave the remote control in a warm and well ventilated place (out of reach of children and out of direct sunlight) to dry for approximately 12 hours. CAUTION Do not use a drying kit or household appliance (e.g. hairdryer) to dry the remote control. 4.

  • Page 18: Troubleshoot

    8. Remote control shows • Contact your clinician. pairing error Remote control won’t • Replace the battery. See Change turn on or ‘wake up’ the battery on page 4. (display remains blank) CR210 REMOTE CONTROL FOR KANSO ™...
  • Page 19 PROBLEM RESOLUTION Processor doesn’t pair • Make sure the processor and the with remote control remote control are both turned on and “awake”. • Make sure you hold the coil in place until the remote control has finished pairing. • Contact your clinician.

  • Page 20: Warnings

    • Do not use alcohol, household cleaners or abrasive materials to clean your remote control. • Do not bend or compress the display on your remote control. • Keep your remote control dry. CR210 REMOTE CONTROL FOR KANSO ™...
  • Page 21 • Do not disassemble, modify, deform or immerse your remote control in water. If your remote control is not working, return it to your clinician. Warranty will be void if opened. • Protect your remote control in environments where excessive moisture and dirt can damage it. •...

  • Page 22: Other Information

    • a display for indicating system status and activity • in-built coil sensor • lanyard pin. Materials The remote control housing and buttons are made of polycarbonate and acrylonitrile butadiene styrene (ABS). The display is made of ABS. CR210 REMOTE CONTROL FOR KANSO ™...
  • Page 23 (see page 7). Dimensions COMPONENT LENGTH WIDTH DEPTH CR210 Remote Control 66.0 mm 36.5 mm 10.6 mm Weight COMPONENT WEIGHT CR210 Remote Control (with battery) USER GUIDE...

  • Page 24: Environmental Conditions

    Storage & transport temperature -10°C (14°F) +55°C (+131°F) Storage & transport humidity 0% RH 90% RH Operating temperature +5°C (+41°F) +40°C (+104°F) Operating relative humidity 0% RH 90% RH Operating pressure 700 hPa 1060 hPa CR210 REMOTE CONTROL FOR KANSO ™...
  • Page 25 Equipment classification Your remote control is an accessory to a medical device as described in the international standard IEC 60601-1:2012, Medical Electrical Equipment – Part 1: General Requirements for Basic Safety and Essential Performance. USER GUIDE...
  • Page 26 Changes or modifications made to this equipment not expressly approved by Cochlear Limited may void the FCC authorisation to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 27 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...

  • Page 28: Environmental Protection

    Directive 2002/96/EC on waste electrical and electronic equipment. Help protect the environment by not disposing of your remote control or batteries with your unsorted household waste. Please recycle your remote control and batteries according to your local regulations. CR210 REMOTE CONTROL FOR KANSO ™...
  • Page 29 Labelling symbols The following symbols may appear on your processor or remote components and/or packaging: Refer to instruction manual Specific warnings or precautions associated with the device, which are not otherwise found on the label Manufacturer Authorised representative in the European Community Catalogue number Serial number Batch code...

  • Page 30: Legal Statement

    Keep dry Legal statement The statements made in this guide are believed to be true and correct as of the date of publication. However, specifications are subject to change without notice. © Cochlear Limited 2016 CR210 REMOTE CONTROL FOR KANSO ™...
  • Page 32 Cochlear Deutschland GmbH & Co. KG Karl-Wiechert-Allee 76A, 30625 Hannover, Germany Tel: +49 511 542 770 Fax: +49 511 542 7770 Cochlear Europe Ltd 6 Dashwood Lang Road, Bourne Business Park, Addlestone, Surrey KT15 2HJ, United Kingdom Tel: +44 1932 26 3400 Fax: +44 1932 26 3426 Cochlear Benelux NV Schaliënhoevedreef 20 i, B-2800 Mechelen, Belgium...
