1280 Enterprise Series™
Color Touchscreen Indicator
Installation Manual
August 10, 2018
PN 169668 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1280 Enterprise Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rice Lake 1280 Enterprise Series

Summary of Contents for Rice Lake 1280 Enterprise Series

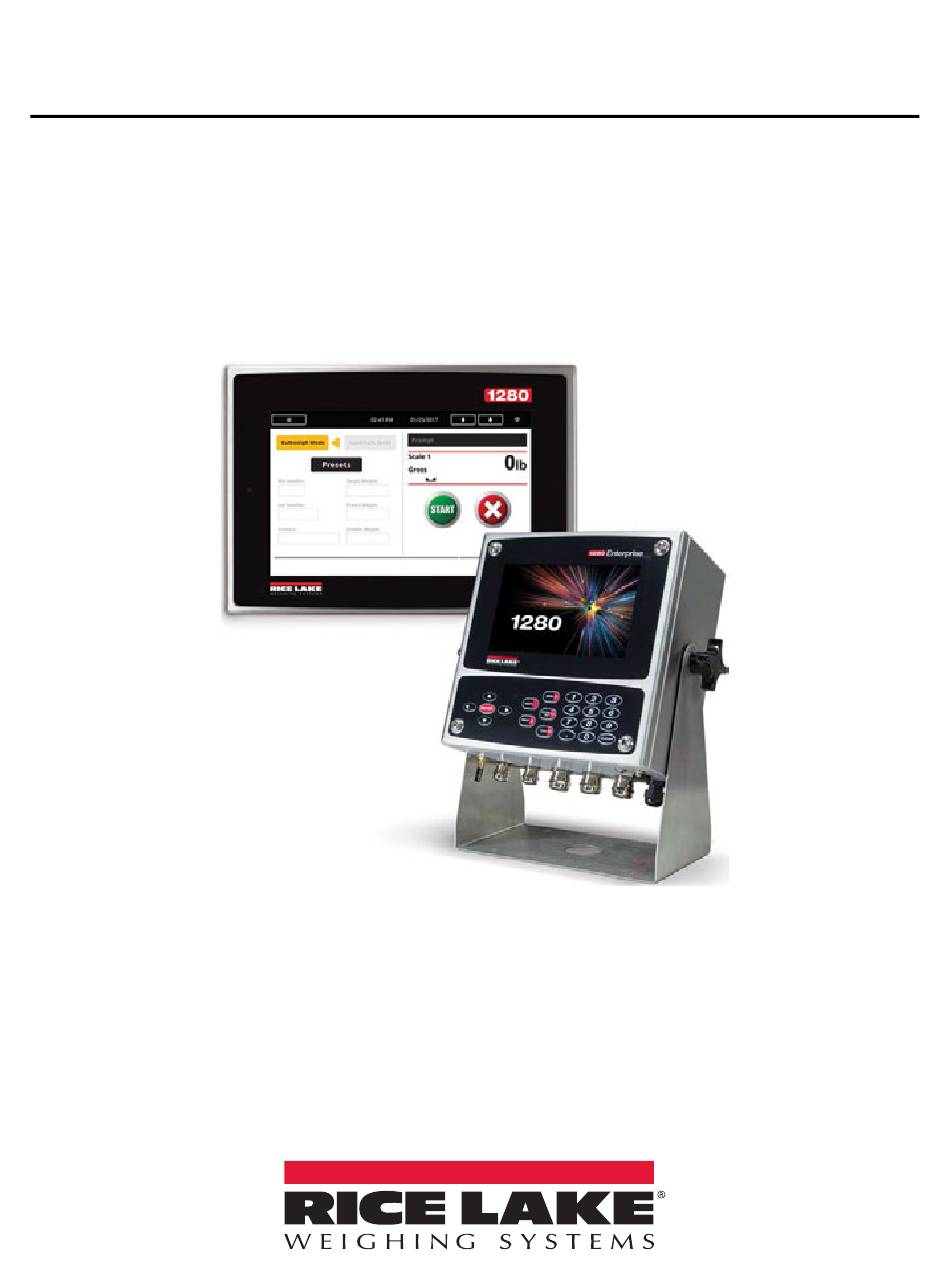

  • Page 1 1280 Enterprise Series™ Color Touchscreen Indicator Installation Manual August 10, 2018 PN 169668 Rev A...
  • Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.

  • Page 3: Table Of Contents

    4.0 Specifications ............... . . 39 Technical training seminars are available through Rice Lake Weighing Systems.
  • Page 4 1280 Series Color Touchscreen Indicator Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars Visit our website www.RiceLake.com...

  • Page 5: Introduction

    From tailored basic weighing to complex process automation, the 1280 delivers uncompromising speed for today’s most demanding applications as well as vast expandability for future needs. Manuals are available for viewing and/or downloading from the Rice Lake Weighing Systems website at www.ricelake.com/manuals Warranty information can be found on the website at www.ricelake.com/warranties...

  • Page 6: Safety

    Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals.

  • Page 7: Installation

    Immediately after unpacking, visually inspect the 1280 to ensure all components are included and undamaged. The shipping carton should contain the controller, display, CD, parts kit, any options ordered with the unit and the appropriate manuals. If any parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. Mounting/Assembly There are three enclosure styles –...
  • Page 8 1280 Series Color Touchscreen Indicator Remove Shipping Bracket The universal mount is shipped with a shipping bracket inside the enclosure to stabilize it during shipping. 1. Loosen the four screws securing the front door. Open Door Shipping Bracket Figure 2-2. Remove Shipping Bracket 2.
  • Page 9 3. Wrap the lead wire seal through the large fillister screw and the two smaller fillister screws in order to seal the indicator. This will restrict access to the setup switch. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 10 1280 Series Color Touchscreen Indicator Small Fillister Screws Large Fillister Screw Figure 2-6. Seal the Setup Switch (Universal Mount) Sealing the Front Door In Legal for Trade applications, it is necessary to seal the indicator to restrict access to the internal hardware of the indicator. To seal the universal enclosure front door, wrap a lead wire seal through the large bottom right screw securing the front door and the two small fillister screws on the bottom of the enclosure.

  • Page 11: Wall Mount Enclosure

    1. Loosen the four screws on the front door. 2. Swing the door open. 3. Remove the four screws securing the bracket in place. 4. Remove bracket from the enclosure. Screws Shipping Bracket Figure 2-9. Remove Shipping Bracket © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 12 1280 Series Color Touchscreen Indicator Controller Disassembly Figure 2-10. Open Door 1. Loosen the four screws on the front door. 2. Swing the door open. 3. Remove the wires connected to the controller assembly. Slide Mounting Controller Plate Down Assembly Figure 2-11.
  • Page 13 Alternatively, the A/D scale card includes fillister screws and a bracket that prevent the load cell cable from being disconnected. Hole in Door Enclosure Large Screw Figure 2-13. Seal the Front Door © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 14: Panel Mount Enclosure

    1280 Series Color Touchscreen Indicator 13.00" 11.00" Vertical Direction 18.84" 18.22" 19.64" Ø 0.33" 14.20" Figure 2-14. Wall Mount Dimensions This illustration is not to scale. It is for illustration purposes only. Use the dimensions to mark the holes for the IMPORTANT wall mount.
  • Page 15 7.44" 9.00" Ø 1.00" Ø 0.25" Figure 2-16. Panel Mount with Keypad Dimensions 9.00" 7.44" 0.78" 0.78" 4.11" 4.66" 6.22" Ø 1.00" 1.00" Figure 2-17. 7'' Touch Only Panel Mount Dimensions © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 16 1280 Series Color Touchscreen Indicator 14.00" 0.78" 12.44" Ø 0.22" 5.62" 10.00" 8.44" Ø 1.00" 1.00" Figure 2-18. 12'' Touch Only Panel Mount Dimensions The illustrations above are not to scale, they are for reference only. Use the dimensions to mark the holes for the IMPORTANT panel mount, or use the template provided with the indicator.
  • Page 17 2. Push controller assembly against the DIN rail in order to engage the spring clip. The controller assembly locks onto the DIN rail bracket. 3. Connect wiring. See Section 2.4 on page 16 © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 18 1280 Series Color Touchscreen Indicator Removing Controller Assembly 1. Disconnect wiring. 2. Supporting the controller assembly and use a screwdriver to slide the mounting plate down. 3. Unhook the controller assembly from the DIN rail bracket. 4. Carefully remove the controller assembly from the DIN rail bracket and release the mounting plate. Figure 2-22.

  • Page 19: Option Card Installation

    4. Secure the card using the hardware that secured the slot cover plate. 5. Connect cables. See Section 2.4 on page 16 Controller Label Slot 1 on this side. Installed Option Card Slot Cover Plate Option Card Figure 2-25. Option Card Installation © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 20: Cable Connections

    1280 Series Color Touchscreen Indicator Seal the Scale Card Once an option card has been put into place and cable connections have been made, a seal can be placed over the card and connections to restrict access and keep them from being removed. Figure 2-26.

  • Page 21: Panel Enclosure Grounding

    On dual-channel A/D scale cards, remove jumpers JP3 and JP4 for connections to J2. • For 4-wire installation, leave jumpers JP1 and JP2 on (or JP3 and JP4 depending on the channel). © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 22: Serial Communications

    1280 Series Color Touchscreen Indicator Scale Card Connector Pin Function +SIG –SIG +SENSE –SENSE +EXC –EXC Table 2-1. Scale Card Pin Assignments The A/D scale card must be removed from the controller prior to configuring the sense line jumpers. IMPORTANT Note The hardware of J2 will not be populated on a single A/D scale card.

  • Page 23: Cpu Digital I/O Wiring

    5. Plug the connector into J1 on the board. Connector Signal +5 VDC DIO 1 DIO 2 DIO 3 DIO 4 DIO 5 DIO 6 DIO 7 DIO 8 Table 2-3. CPU Digital I/O Pin Assignments © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 24: Wiring Schematics

    Screen Overlay Figure 2-32 on page 21 Keypad 7'' and 12'' display wiring Display HMI Board To Wall Outlet To Fan ASSY PN/Rev RICE LAKE R265 R266 Power Supply Back Plane KEYBOARD LVDS DISPLAY POWER BAT1 PCIe PCIe INSERT SIDE UP...

  • Page 25: Touch Screen Only (Virtual Keypad)

    Some configuration parameters, such as those used to configure the display and widgets, cannot be accessed Note through the configuration menus. Revolution provides the most complete and efficient configuration interface. See Section 14.0 on page 130. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 26: Cpu Board Replacement

    1280 Series Color Touchscreen Indicator CPU Board Replacement Failure to heed the following statements could result in serious injury or death. WARNING * Use a wrist strap for grounding to protect components from electrostatic discharge (ESD) when working inside the indicator enclosure.

  • Page 27: Power Supply Replacement

    1. Disconnect the power supply. See Section 2.8 on page 2. Loosen the five screws securing the back plate board assembly and remove the board. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 28 1280 Series Color Touchscreen Indicator Back Plate Board Assembly Fan Plate Figure 2-36. Remove Back Plate Board Assembly Note Note the orientation of the fan prior to removal. It is important that the fan is reinstalled in the correct orientation. Figure 2-37.

  • Page 29: 2.10 Replacement Parts

    163327 Screw, Mach 6-32NC x 3/8'' 94422 Label, Capacity 163408 Blank Plate, Option Card Slot Cover 165927 Clip, Locking Load Cell (Kit PN 166957) Table 2-4. Controller Assembly Repair Parts List © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 30 1280 Series Color Touchscreen Indicator Inside Bottom of Enclosure (some items are hidden for clairity) Figure 2-39. Universal Repair Parts Visit our website www.RiceLake.com...
  • Page 31 183663 Tall Flanged Drilled Hex Head Screw 169676 Controller Assembly (Figure 2-38 on page 169452 Enclosure Shell Assembly, Universal 169875 Cord Grip, PG 9 With Nut Table 2-5. Universal Parts List © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 32 1280 Series Color Touchscreen Indicator Figure 2-40. Panel Mount Repair Parts Visit our website www.RiceLake.com...
  • Page 33 Cable, CPU to Display (1000 Nit) 14839 Screw, Mach 6-32NC x 1/4'' 162309 Backer Bracket Table 2-6. Panel Enclosure Repair Parts List Note If controller is not connected to the panel, ground per NEC. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 34 1280 Series Color Touchscreen Indicator Cover exploded for clarity Inside Bottom of Enclosure (some items hidden for clarity) Figure 2-41. Wall Mount Repair Parts Visit our website www.RiceLake.com...
  • Page 35 Nut, Breather Vent 165111 Cord, US Power 124695 Panel Plug, Round Solid 165112 Cord, European Power 169876 Cord Grip, PG13.5 With Nut 68600 Cord Grip, PG11 Table 2-7. Wall Mount Repair Parts List © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 36 1280 Series Color Touchscreen Indicator Figure 2-42. Panel Mount Touch Screen – 7'' Repair Parts Item No. Part No. Description 182145 Mounting Plate Assembly, 7-inch Panel Mount 176168 Display, Assembly, 7-inch Panel Mount Display Board (500 Nit) 166725 166726 Display Board (1000 Nit) 180002 Cable, CPU to Touchscreen 58248...
  • Page 37 Label, 1280 Serial Tag 180001 Cable, CPU to Display 166838 Din Rail Mount 182992 Display, 12'' 180002 Cable, CPU to Touchscreen Table 2-9. Panel Mount Touch Screen – 12'' Repair Parts List © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 38: 2.11 Label Legend

    1280 Series Color Touchscreen Indicator 2.11 Label Legend Slot 6 Slot 5 Slot 4 Slot 3 Slot 2 Slot 1 ETHERNET CHANNEL 2 CHANNEL 1 DIGITAL I/O DEVICE HOST SD CARD 10/100 RTS CTS TX RX GND RTS CTS TX RX GND STATUS RTS/Y OF CPU...

  • Page 39: Configuration Menu

    3. Use a non-conductive tool to press the setup switch inside the indicator. Setup Switch Configuration Screw Non- conductive Tool Figure 3-1. Setup Switch Location (Universal Enclosure) Press lightly to avoid damaging the switch or board. IMPORTANT © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 40 1280 Series Color Touchscreen Indicator Wall Mount Enclosure Setup Switch Configuration Setup Switch Screw Configuration Screw Panel Mount Enclosure Figure 3-2. Setup Switch Locations (Panel/Wall Mount Enclosures) 4. Access to the configuration menu may be restricted with a password. If prompted, enter the password and press .

  • Page 41: Configuration Menu

    Press to restore all settings to factory defaults. Partially Reset to Factory Defaults Press to partially restore settings to factory defaults, this preserves Ethernet and scale settings. Table 3-1. Configuration Main Menus © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 42: Configuration Menu Map

    1280 Series Color Touchscreen Indicator 3.3.1 Configuration Menu Map Figure 3-5 illustrates the menu structure in the configuration menu selections. Scales Scale 1-8 Format Calibration Filtering Setup Maintenance Section 4.0 Communications Serial Ethernet Fieldbus Section 5.0 Features Softkeys General Regulatory Passwords Locale Contact Info...

  • Page 43: Specifications

    Panel Mount Outputs- 20 mA max per channel, active low 5 VDC source available - 500 mA max Relay 4 channel, dry contact, max current 3A @ 30 VDC, 3A @250VAC © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 44 1280 Series Color Touchscreen Indicator Certifications and Approvals NTEP CoC Number15-001 Accuracy Class III/IIIL : 10,000d Measurement Canada Approval AM-5980C Accuracy Class III/IIIHD : 10,000d File Number: R76/20006 - NL1 - 16.04 European: TC8596, Accuracy Class III/IIII : 10,000d 4d Panel Mount and Universal 4a Panel Mount Approvals for 7'' and 12'' touch-only panel mounts - pending Visit our website...
  • Page 46 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
