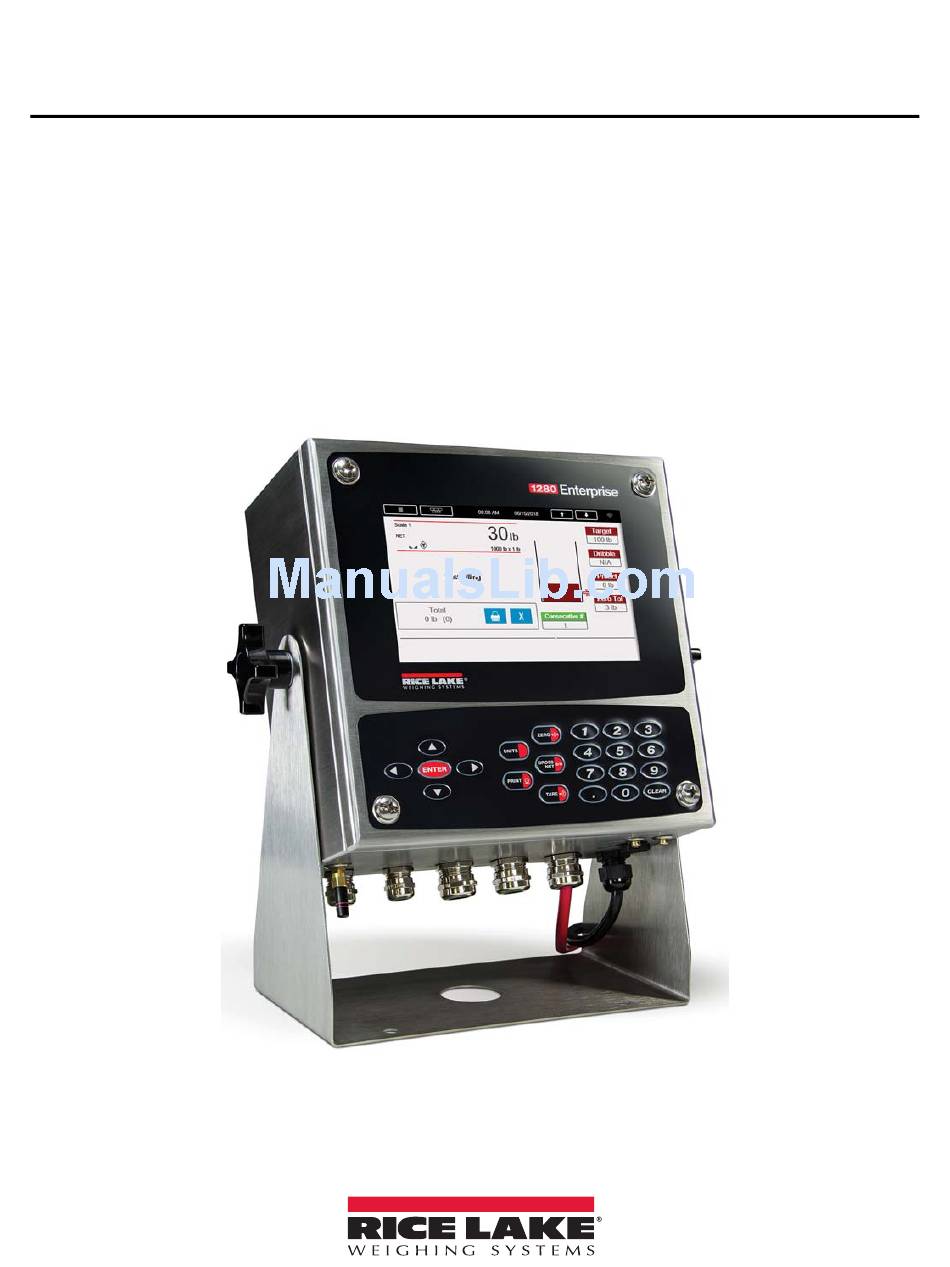

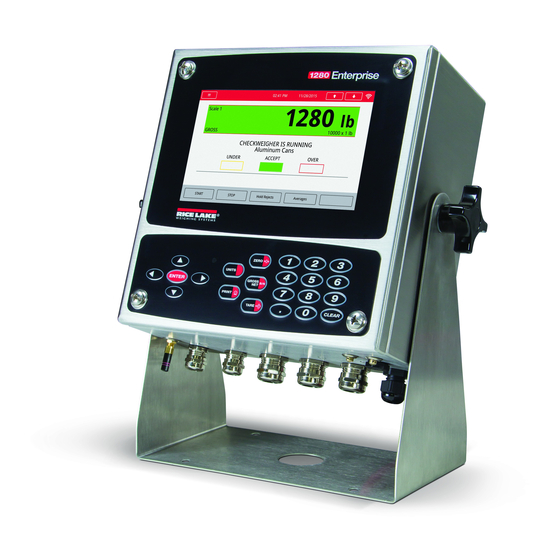

  • Page 1 1280 Filling / Dosing Custom 1280 Program Operation Manual August 10, 2018 PN 191883...
  • Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.

  • Page 3: Table Of Contents

    7.0 Hardware Setup ............... . . 9 Technical training seminars are available through Rice Lake Weighing Systems.
  • Page 4 1280 Filling/Dosing Program Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars Visit our website www.RiceLake.com...

  • Page 5: Introduction

    Introduction Introduction This manual provides operation instructions for the 1280 Filling/Discharge software (PN 191318). Manuals are available for viewing and/or downloading from the Rice Lake Weighing Systems website at www.ricelake.com/manuals Warranty information can be found on the website at www.ricelake.com/warranties Overview The Filling/Dosing software is designed for multiple scenarios.

  • Page 6: Operation

    1280 Filling/Dosing Custom Program Operation Figure 2-1. Main Display Modifying Preset/Weights Operator presses Target, Dribble, Preact, Zero Tol, or Consecutive # icon to edit the corresponding weight/number. Printing and Clearing Totals 1. Press . System prints the current total. 2. Press .

  • Page 7: Gross/Net Filling

    C. System delays for the Delay After Discharge before it completes the cycle. 4. Remove the container. Once the weight falls within the Zero Tolerance, the system is ready for the next fill. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 8: Dispensing Material (Dosing)

    1280 Filling/Dosing Custom Program Dispensing Material (Dosing) 1. Ensure the button is pulled out. E-Stop 2. Turn the switch to the Start position to begin a fill. Start/Abort A. System verifies the following: i. E-Stop button is pulled out ii. Valid Target value is entered (Target > 0) B.

  • Page 9: Serial Communications - Tickets, Pc

    The message is transmitted (defaulted to Port None). The format can be modified through the front panel or using Revolution. The same user strings used in the Weigh Out Tickets are used. Consecutive Number, Target, Net, Time, Date<CR><LF> © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 10: Input/Output

    - PLC looks at the Center Of Zero Bit and then sets this to 0 if a Zero is acquired. Communication status – PLC sends back the same number that the 1280 is sending in Input #18 This is the heart beat logic; system will wait 5 seconds before it considers it a loss of communications Table 4-3.

  • Page 11: Application Setup & Configuration

    Table 5-1. Setup and Configuration Parameters Change Units to Metric 1. Press . The main menu is displayed. 2. Select Scale. 3. Select Format. 4. Navigate to primary units and select metric. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 12: Database Tables

    1280 Filling/Dosing Custom Program Database Tables System deletes 25% of oldest records when the database reaches maximum capacity. Field Type Description Consec Integer Auto-Incrementing Consecutive Number Target Real Target Weight Dribble Real Dribble Weight Preact Real Preact Weight Actual Real...

  • Page 13: Hardware Setup

    Table 7-5. USB Device Port Port Type Description Setup Currently Not Used Currently Not Used Table 7-6. USB Type-A Port Port Type Description Setup 8GB Micro SD Card Images Table 7-7. SD Card Slot © Rice Lake Weighing Systems ● All Rights Reserved...
