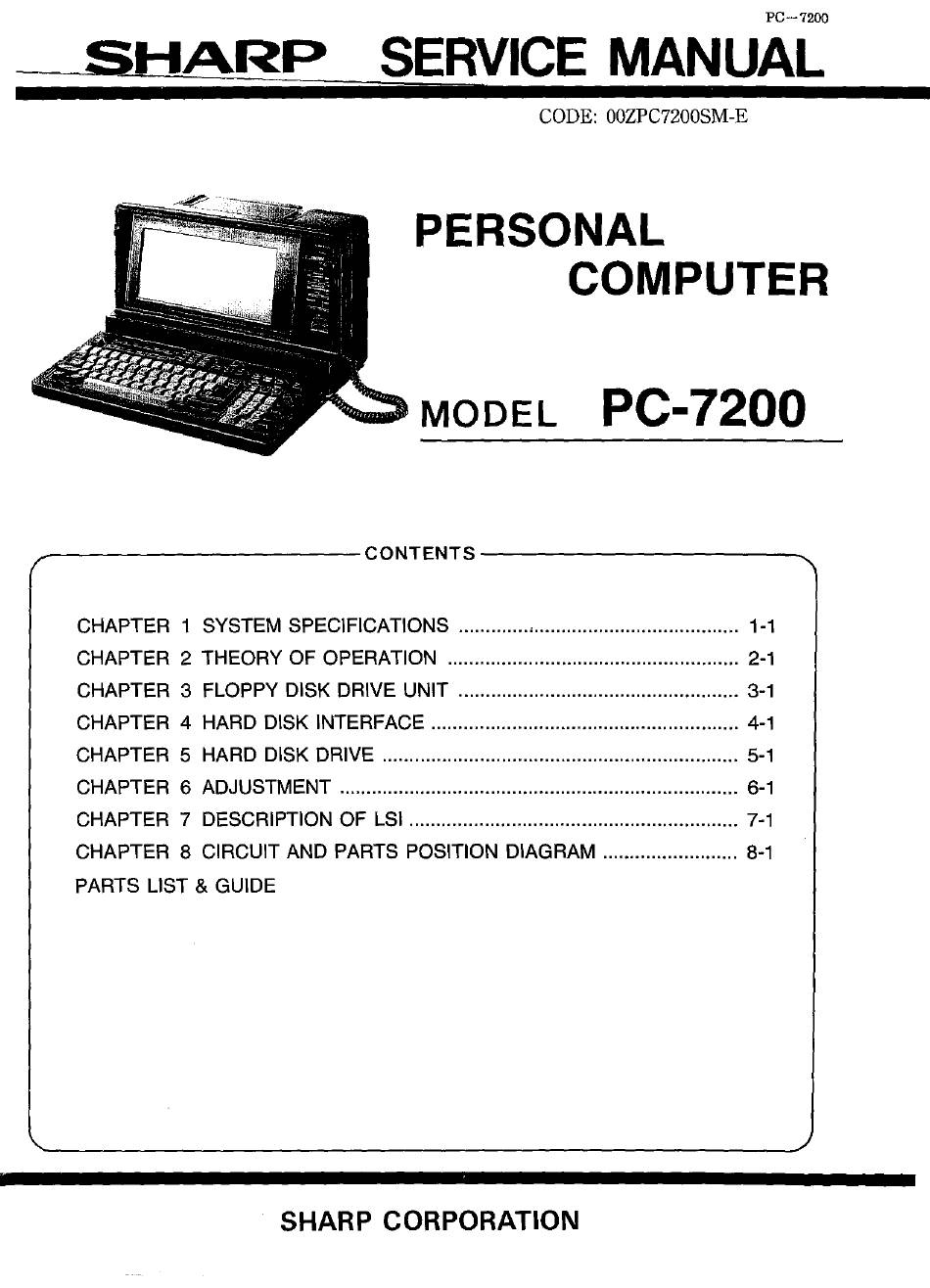

SHARP
PC-7200
SERVICE MANUAL
CODE: OOZPC7200SM-E
PERSONAL
COMPUTER
MODEL
PC-7200
~-------------------CONTENTS--------------------~
CHAPTER 1 SYSTEM SPECIFICATIONS .................................................... 1-1
CHAPTER 2 THEORY OF OPERATION ...................................................... 2-1
CHAPTER 3 FLOPPY DISK DRIVE UNIT .................................................... 3-1
CHAPTER 4 HARD DISK INTERFACE ......................................................... 4-1
CHAPTER 5 HARD DISK DRIVE .................................................................. 5-1
CHAPTER 6 ADJUSTMENT .......................................................................... 6-1
CHAPTER 7 DESCRIPTION OF LSI ............................................................. 7-1
CHAPTER 8 CIRCUIT AND PARTS POSITION DIAGRAM ......................... 8-1
PARTS LIST
&
GUIDE
SHARP CORPORATION
