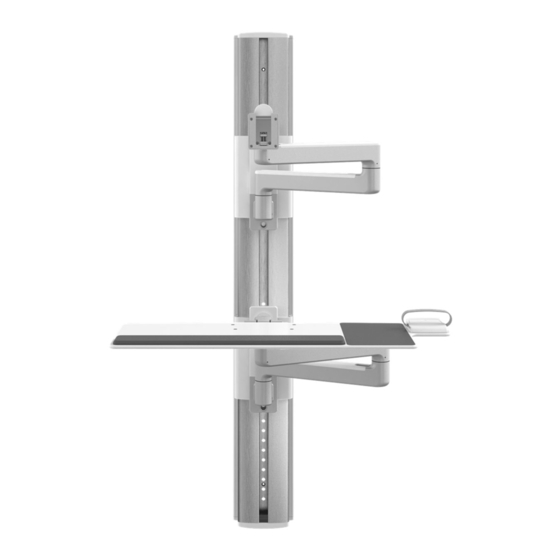

Humanscale V/Flex Installation Instructions

STEP 7: ROUTE CABLES

Route monitor cables starting from Monitor going to Track
a. The M8 includes a cable management system to keep monitor cables organized and
protected. Start by inserting cables into Cable Covers.
b. Route cables inside each arm. Place Arm Covers on so that the grooves interlock.
Slide Arm Cover up until it snaps in place.
Keyboard and Mouse Cables
c. The Keyboard Arm includes a cable management system (underneath the Keyboard
Arm) to keep keyboard cables organized and protected. Start by inserting cables into
the top of the Upper Arm.
d. Route cables inside each arm. Place Arm Covers on so that the grooves interlock.
Slide Arm Cover up until it snaps in place.
Route all cables through Track
e. Remove cable management covers on one side of Track. Insert monitor cables into
the groove of Track. Replace cable management covers.
NOTE: Where monitor cables exit Track should be determined
by the location of your CPU and nearest outlet.

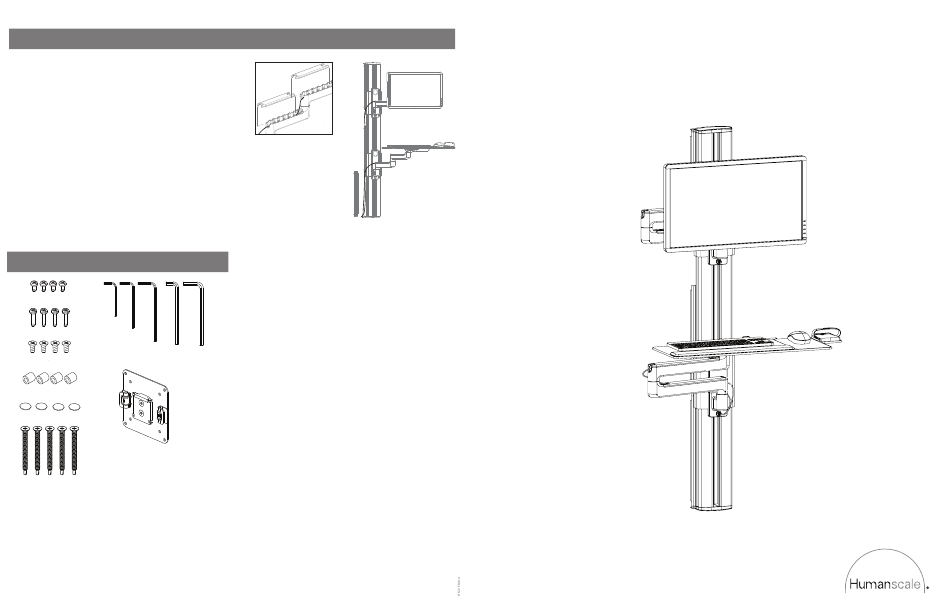

V/FLEX INSTALLATION HARDWARE

(4) Standard VESA Bracket Screws
Hex Key A
(2 mm)
(4) Extended VESA Bracket Screws
Hex Key B
(2.5 mm)
Hex Key C Hex Key D
(3 mm) (4 mm)
(4) Keyboard Tray Screws
(4) Plastic Spacers
(4) 3M Dual Lock Coins
VESA Bracket

ADDITIONAL HARDWARE REQUIRED

(5) Track Mounting Screws
(for mounting on metal stud) Electric drill
www.humanscalehealthcare.com
b. d.
e.
Hex Key E
(5 mm)
V/Flex
Installation Instructions
