WARNING: Do Not Operate Before Reading Manual
KVA Series
OPERATOR'S MANUAL
Models
KVA12
KVA40
KVA160 KVA630
KVA21
KVA63
KVA250
KVA25
KVA100 KVA400
All rights reserved. Product information and specifications subject to change.
Tuthill Vacuum & Blower Systems
KINNEY
Single Stage Rotary Vane Pumps
Copyright © 2018 Tuthill Vacuum & Blower Systems
tuthillvacuumblower.com
®
Manual 1865 Rev B p/n 001865 0000
800.825.6937
Advertisement
Table of Contents
Related Manuals for Tuthill KVA Series
Summary of Contents for Tuthill KVA Series
- Page 1 KVA Series OPERATOR’S MANUAL Models KVA12 KVA40 KVA160 KVA630 KVA21 KVA63 KVA250 KVA25 KVA100 KVA400 Copyright © 2018 Tuthill Vacuum & Blower Systems All rights reserved. Product information and specifications subject to change. Tuthill Vacuum & Blower Systems tuthillvacuumblower.com 800.825.6937...
- Page 2 The employees of Tuthill Vacuum & Blower Systems thank you for your purchase! Tuthill Vacuum & Blower Systems proudly manufactures A company with heart Kinney vacuum pumps and M-D Pneumatics blowers and right from the start. ® vacuum boosters in Springfield, Missouri, USA. We bring 100+ years of engineering experience and solid, hands- on care to help customers keep their processes running.
-
Page 3: Table Of Contents
Table of Contents Introduction .................. 1 Safety .................... 2 Graphic Conventions Used in this Manual ..........2 Safety Instruction Tag ................2 Safety Precautions for Vane Pumps ............2 Installation ..................4 Unpacking ..................... 4 Location ....................4 Power Requirements ................4 Vacuum Connections ................ - Page 4 Table of Contents Overhaul Kit and Accessories............... 8 Maintenance Schedule ................. 8 Specifications ................9 Troubleshooting ................. 10 Exploded Views and Parts Lists ..........13 KVA12 / KVA21 Exploded View Drawing ..........14 KVA12 / KVA21 Parts List ..............15 KVA25 / KVA40 Exploded View Drawing ..........
-
Page 5: Introduction

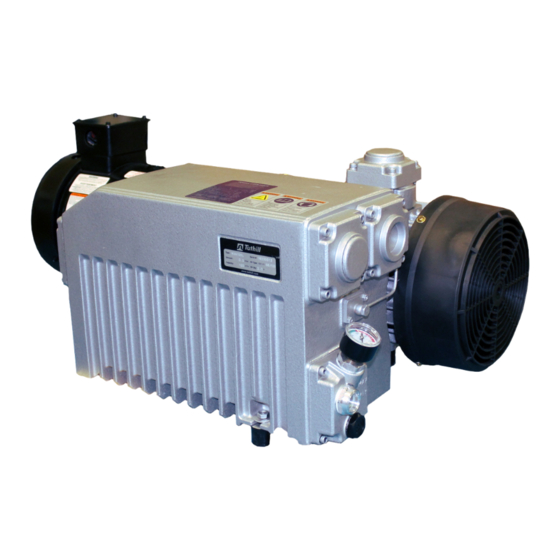

KVA oil lubricated, rotary vane vacuum KINNEY ® pump from Tuthill Vacuum & Blower Systems. Please examine the pump for shipping damage, and if any damage is found, report it immediately to the carrier. If the pump is to be installed at a later date, make sure it is stored in a clean, dry location and rotated regularly. -
Page 6: Safety
SAFETY GRAPHIC CONVENTIONS USED IN OTE: Indicates a procedure, practice, or condition that should be followed in THIS MANUAL order for the equipment to function in the manner intended. The following hazard levels are referenced within this manual: SAFETY INSTRUCTION TAG DANGER CAUTION Indicates a hazardous situation that, if not... - Page 7 Safety • Do not operate the pump with oxygen-enriched • Lift the pump only by the lifting lugs supplied gas (greater than 21% by volume) in the suction with the pump. Never lift equipment attached to line, unless the pump has been prepared with the pump by the pump lifting lugs.
-
Page 8: Installation
Check that these settings are in line to your equipment. with the voltage at your location. If the voltage is different, please contact Tuthill Vacuum & Blower Systems for motor and starter information. LOCATION Correct direction of rotation is marked by an arrow... -
Page 9: Vacuum Connections
Should process gas contain dust or other foreign particles, connect a suitable inline (inlet) filter to Table 3-2 the inlet port. Consult Tuthill Vacuum & Blower Systems for recommendations. PUMP MODEL OIL CAPACITY Design the vacuum piping so that no liquids such KVA12 / KVA21 0.5 qt (0.5 L) -
Page 10: Operation
Do not use the anti-suckback valve as a check valve. Consult Tuthill Vacuum & Blower Systems for proper check valves. GAS BALLAST KVA pumps are equipped with a gas ballast. -
Page 11: Maintenance
MAINTENANCE KVA Series vacuum pumps require very little It is normal for the oil to be foamy or lightly colored maintenance. To ensure optimum performance, in an operating pump. This may be normal aeration perform the following maintenance procedures. of the oil. If the oil appears milky or dark colored, it is contaminated or burned and must be changed. -
Page 12: Oil Spin-On Filter
OVERHAUL KIT AND ACCESSORIES An overhaul kit contains a set of gaskets, O-rings, vanes, bearing, bearing sleeves, shaft seals, and taper pins. Please consult Tuthill Vacuum & Blower Systems’ authorized representative for part numbers. Manual 1865 Rev B p/n 001865 0000... -
Page 13: Specifications
SPECIFICATIONS KVA12 KVA21 KVA25 KVA40 KVA63 KVA100 KVA160 KVA250 KVA400 KVA630 60 HZ 50 HZ NOMINAL DISPLACEMENT 60 HZ 50 HZ Torr 1.50 1.50 0.12 0.12 0.11 0.11 0.11 0.23 0.07 0.08 ULTIMATE PRESSURE mbar 0.16 0.16 0.14 0.14 0.15 0.30 0.09 0.11... -
Page 14: Troubleshooting
TROUBLESHOOTING Although Tuthill Vacuum & Blower Systems blowers are well designed and manufactured, problems may occur due to normal wear and the need for readjustment. The following chart lists symptoms that may occur along with probable causes and remedies. SYMPTOM... - Page 15 Inlet screen clogged Clean screen and check inlet filter element. with debris Replace shaft seal, from overhaul kit, or call Tuthill Shaft seal leak Vacuum & Blower Systems for service and repair. Drain oil with flushing oil. Run pump for 15 minutes and drain.
- Page 16 Repair or replace if needed, or call Tuthill Vacuum & causing a voltage drop. Blower Systems for service and repair. Manual 1865 Rev B p/n 001865 0000...
-
Page 17: Exploded Views And Parts Lists
EXPLODED VIEWS AND PARTS LISTS Coupling Kit For your convenience, Tuthill has prepared a variety of kits to serve all levels of routine and This kit includes (as applicable): the motor- and atypical maintenance of your KVA vane pump. pump-side coupling halves and cooling fan. -
Page 18: Kva12 / Kva21 Exploded View Drawing
Exploded Views and Parts Lists KVA12 / KVA21 EXPLODED VIEW DRAWING Manual 1865 Rev B p/n 001865 0000... -
Page 19: Kva12 / Kva21 Parts List
Exploded Views and Parts Lists KVA12 / KVA21 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Elbow Hydraulic Fitting Cylinder Straight Hydraulic Fitting Rotor Oil Tube (B) Sleeve, Bearing Elbow Hydraulic Fitting Vane Cooling Spiral A-end Plate Check Valve Plate B-end Plate Check Valve Guide Bearing... -
Page 20: Kva25 / Kva40 Exploded View Drawing
Exploded Views and Parts Lists KVA25 / KVA40 EXPLODED VIEW DRAWING Manual 1865 Rev B p/n 001865 0000... -
Page 21: Kva25 / Kva40 Parts List
Exploded Views and Parts Lists KVA25 / KVA40 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Inlet Flange, Lower Housing Cylinder O-Ring, Inlet Part Rotor Inlet Flange, Upper Housing Sleeve, Bearing Inlet Screen Vane Allen Bolt A-End Plate Spring Lock Washer B-End Plate Oil Recirculating Screw Bearing... -
Page 22: Kva63 / Kva100 Exploded View Drawing
Exploded Views and Parts Lists KVA63 / KVA100 EXPLODED VIEW DRAWING Manual 1865 Rev B p/n 001865 0000... -
Page 23: Kva63 / Kva100 Parts List
Exploded Views and Parts Lists KVA63 / KVA100 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Elbow Hydraulic Fitting Cylinder Oil Tube (A) Rotor Oil Tube (B) Sleeve, Bearing A-Oil Tubing (B) (WOVP-200 Only) Vane BSLM Hydraulic Fitting A-End Plate 233S Sealing Ring for 233 B-End Plate... -
Page 24: Kva160 Exploded View Drawing
Exploded Views and Parts Lists KVA160 EXPLODED VIEW DRAWING Manual 1865 Rev B p/n 001865 0000... -
Page 25: Kva160 Parts List
Exploded Views and Parts Lists KVA160 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION 222S.2 Sealing Ring for 222 Cylinder Elbow Hydraulic Fitting Rotor Oil Tube (A) Sleeve, Bearing Oil Tube (B) Vane Oil Tube (A-1) A-End Plate Cooling Spiral Coil B-End Plate Inlet Flange, Lower Housing Bearing... -
Page 26: Kva250 Exploded View Drawing
Exploded Views and Parts Lists KVA250 EXPLODED VIEW DRAWING Manual 1865 Rev B p/n 001865 0000... -
Page 27: Kva250 Parts List
Exploded Views and Parts Lists KVA250 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Elbow Hydraulic Fitting — Cylinder Oil Tube (160: A) (250: A-1) Rotor Oil Tube (160: B) (250: B-1) Sleeve, Bearing Oil Tube (160: A-1) (250: B-2) 18-1 Sleeve, Bearing —... -
Page 28: Kva400 Exploded View Drawing
Exploded Views and Parts Lists KVA400 EXPLODED VIEW DRAWING Manual 1865 Rev B p/n 001865 0000... -
Page 29: Kva400 Parts List
Exploded Views and Parts Lists KVA400 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION 225S Sealing Ring for 225 Cylinder BSLM, Hydraulic Fitting Stud 226S Sealing Ring for 226 Set Screw Oil Tube (A) Stud Oil Tube (B-1) Rotor Oil Tube (B-2) 18-1 Sleeve, Bearing Oil Tube... -
Page 30: Kva630 Exploded View Drawing
Exploded Views and Parts Lists KVA630 EXPLODED VIEW DRAWING Manual 1865 Rev B p/n 001865 0000... -
Page 31: Kva630 Parts List
Exploded Views and Parts Lists KVA630 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION 225S Sealing Ring for 225 Cylinder BSLM, Hydraulic Fitting Stud 226S Sealing Ring for 226 Set Screw Oil Tube (A) Stud Oil Tube (B-1) Rotor Oil Tube (B-2) 18-1 Sleeve, Bearing Oil Tube... -
Page 32: Warranty - Vacuum Products
WARRANTY – VACUUM PRODUCTS Subject to the terms and conditions hereinafter set forth and set forth in General Terms of Sale, Tuthill Vacuum & Blower Systems (the Seller) warrants products and parts of its manufacture, when shipped, and its work (including installation and start-up) when performed, will be of good quality and will be free from defects in material and workmanship. -
Page 33: Operating Data Form / Product Registration
NOTES: IMPORTANT All blowers manufactured by Tuthill Vacuum & Blower Systems are date-coded at time of shipment. In order to assure you of the full benefits of the product warranty, please complete, tear out and return the product registration card, or register online at tuthillvacuumblower.com. - Page 36 4840 West Kearney Street Springfield, Missouri USA 65803-8702 O 417.865.8715 800.825.6937 F 417.865.2950 Manual 1865 Rev B p/n 001865 0000 tuthillvacuumblower.com 1/18 Copyright © 2018 Tuthill Vacuum & Blower Systems All rights reserved. Product information and specifications subject to change.
Need help?
Do you have a question about the KVA Series and is the answer not in the manual?
Questions and answers

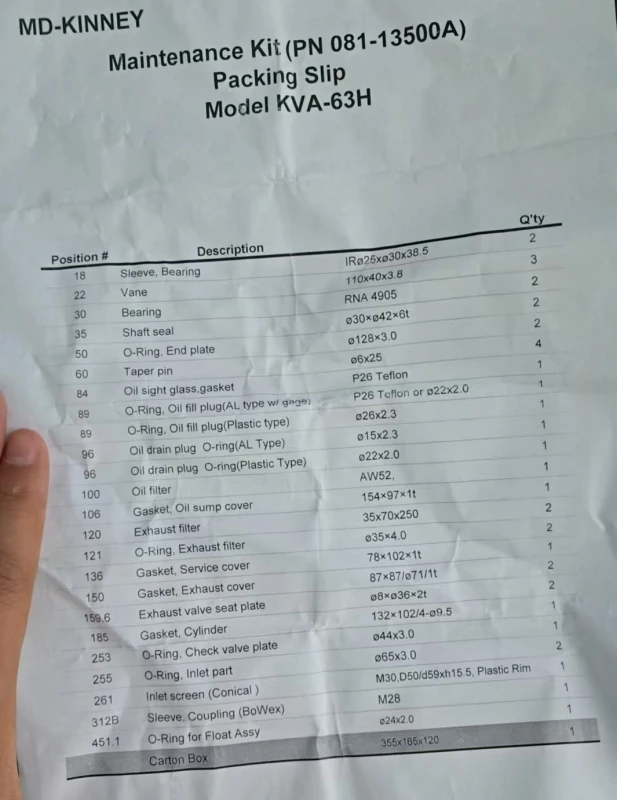

KVA63的维修配件清单 中国有代理商或经销商吗？
The maintenance parts list for the Tuthill KVA63 includes:
- Elbow Hydraulic Fitting (Item 223) – Qty: 1
- Cylinder (Item 1) – Qty: 1
- Oil Tube (A) (Item 230) – Qty: 1
- Oil Tube (B) (Item 231) – Qty: 1
- Rotor (Item 15) – Qty: 1
- Sleeve, Bearing (Item 18) – Qty: 2
- Vane (Item 22) – Qty: 3
- A-End Plate (Item 25) – Qty: 1
- B-End Plate (Item 26) – Qty: 1
- Bearing (Item 30) – Qty: 2
- Shaft Seal (Item 35) – Qty: 2
- Supporting Ring (Item 42) – Qty not listed
- BSLM Hydraulic Fitting (Item 233) – Qty: 1
- Sealing Ring for 233 (Item 233S) – Qty: 2
- Inlet Flange, Lower Housing (Item 250) – Qty: 1
- Check Valve Plate (Item 251) – Qty: 1
There is no information provided about distributors or agents in China.
Answer:
Maintenance parts list for Tuthill KVA63 includes items such as rotor, vane, bearings, shaft seals, oil tubes, and hydraulic fittings. There is no information about distributors or agents in China.
