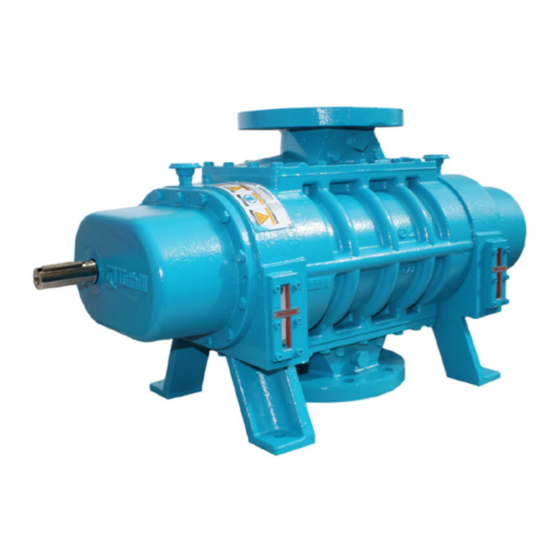

M-d pneumatics series rotary positive displacement blower
Hide thumbs
Table of Contents

Advertisement

Quick Links

WARNING: Do Not Operate Before Reading Manual
PD Plus
OPERATOR'S MANUAL
Models
3202
3210
4012
3204
4006
5507
3206
4009
5511
Lip-Labyrinth (Air Service)
Single Envelope Gastight
Double Envelope Gastight
All rights reserved. Product information and specifications subject to change.
Tuthill Vacuum & Blower Systems
5514
5516
5518
Copyright © 2017 Tuthill Vacuum & Blower Systems
tuthillvacuumblower.com
M-D Pneumatics
™
Rotary Positive Displacement Blower
Manual 2006 Rev B p/n 2006
800.825.6937
