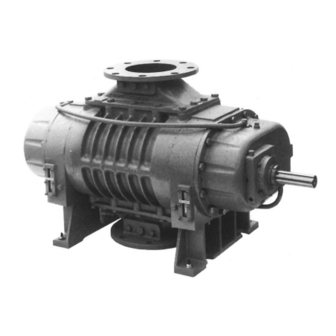

- Page 1 Manual 1857-1 Models: KMBD-240C KMBD-400C KMBD-540C KMBD-720C KMBD-850C KMBD-1200C KMBD-1600C KMBD-2000C KMBD-2700C KINNEY VACUUM BOOSTERS Instruction Manual ISO 9001 CERTIFIED Revision 12/99 QUALITY SYSTEM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..................1 DESCRIPTION ....................1 Flow Direction by Rotation .................. 2 INSTALLATION .................... 3 General ........................3 Safety ........................3 Lubrication ......................4 Water Liquid Cooling Instructions ..............5 Piping Connections ....................5 Water Cooled End Plate Option ................. 6 C-flanged Coupling Installation ................ -
Page 3: Introduction
This manual covers the Installation, Operating, and Maintenance of INTRODUCTION the Mechanical Booster Pumps listed in Table 1. KMBD Models Mechanical Seals Slinger Seal 240C, 400C, 540C, 720C, 850C, 1200C, 1600C, 2000C, 2700C (1) Interconnecting cooling water between drive shaft bearing housing and the two oil reservoirs. -
Page 4: Flow Direction By Rotation
Refer to the illustration below before installing inlet and discharge Flow Direction piping. by Rotation KMBD Approximate Oil Capacity Port Size Max. Approximate Weight lbs. (kg) Model Vertical Horizontal inch (mm) Vertical Horizontal 1 Quart 0.5 Quart (100) (90) (90) 400BP (0.95 Litre) (0.47 Litre) -
Page 5: Installation
If damage has occurred from shipment a claim must be filed with the carrier immediately; preserve the shipping container for inspection by the carrier. Do not return the booster to the factory without first obtaining shipping instructions from Tuthill Vacuum Systems. Remove protective covers and plugs only as connections are made. -
Page 6: Lubrication
Some horizontal flow boosters may KMBD 240C & 400C models are similar have bulls-eye sight gauges. Maintain except the sight gauges are inverted. oil level in center of glass. Figure 1 Lubrication Before starting the booster fill reservoir as instructed below: Lubrication 1. -
Page 7: Water Liquid Cooling Instructions
Kinney KV-100 oil is recommended for use on boosters with typical vacuum applications. Consult Tuthill Vacuum Systems on oils for use where hazardous or chemically active materials may be present. Add vacuum oil to the booster in the quality shown in Specifications on page 2. -
Page 8: Water Cooled End Plate Option
Figure 3 Cooling Water Piping Harness The partly water-cooled slinger seal version has cooling water to the seal adapter housing only. The cooling coils and interconnecting water line are omitted and the interconnecting line leading from the seal adapter housing is led to the drain. The air-cooled configuration requires no cooling water. -
Page 9: C-Flanged Coupling Installation
ambient temperatures can fall below freezing then care must be taken to ensure the water or liquid used for cooling does not freeze and damage the blower end plates. End plates must be drained of liquid during downtime unless a recirculating unit using a glycol mixture has been installed. -
Page 10: Electrical Connections
Wire the motor and other electricals such as solenoid valves and Electrical temperature switch to the proper voltage and amperage as indicated Connections on the nameplate of each component being wired. Turn the booster by hand after wiring is completed to determine that there are no obstructions and if the booster turns freely;... -
Page 11: Maintenance
1) The degree of importance in maintaining the booster in a “ready” condition. 2) The tie lag in parts procurement. 3) Cost. 4) Shelf life (seals and o-rings). Contact Tuthill Vacuum Systems Sales Department for any assistance in selecting spare parts. -
Page 12: Repair Service
Contact the factory for the location nearest you. Units which are still under warranty must be returned to Tuthill Vacuum Systems (TVS) for service. NOTE: Before returning any unit, you must call TVS Service Department (800) 225-3810, for authorization and proper return procedure. -
Page 13: Disassembly- 240C & 400C
1) Disconnect cooling water lines (274 & 181). Do not disturb DISASSEMBLY cover bushings (120) or it will be necessary to retest cooling coils KMBD-240C & for leakage as described in the assembly procedure. Covers KMBD-400C should be re-tested if water is detected in drain oil, (mechanical seal boosters only). - Page 14 11) Turn the unit around and attach a single bar puller to either bore and push rotor from end plate making sure the rotor is vertical in the housing (for support) while removing. Repeat for opposite rotor. Note the location of timing shims (16), oil slinger (20), and spacers (17 &...
-
Page 15: Assembly - 240C & 400C
Be sure they are in place. It is recommended that the gear end rotor shaft bearings be purchased from Tuthill Vacuum Systems, as they are specially ground to locate the rotors with correct end clearance relative to the gear end plate. Do not use standard bearings which have not been flush ground within .001 tolerance. - Page 16 It is suggested that long feeler gauges (12”) be used to check the interlobe timing. Preferably (2) .006, (1) .005, (1) .004, and (1) .003 These gauges will provide all the combinations from .003 to .021, and also .024, which is the total. 1) Remove all nicks, scratches, etc.
- Page 17 6) Lubricate shafts and press the double row ball bearings (9) onto rotor shafts and into end plate bores. CAUTION: These bearings have been flush ground at the factory. The inner race will have a black dot etched on the surface.
- Page 18 14) Mechanical Seal Boosters– Install mating rings same as gear end, No. 5. Slinger Seal Boosters – Install seal slinger same as gear end. Install bearing spacers (123) on each shaft. 15) Lubricate shafts and install roller bearings (10). CAUTION: Inner race of bearing has a flange on one side only. This flange must face outward.
- Page 19 25) Install free end cover (7) following the same procedure used to Complete Booster install the gear cover. Secure with cap screws (26B). Assembly 26) Apply sealer and install both port fittings (38 or 48). 27) Install all necessary cooling water lines. 28) Prior to putting booster into operation, follow Installation and Operation instructions.
-
Page 20: Disassembly - 540C, 720C, 850C, 1600C, 2000C, 2700C
1) Disconnect cooling water lines (274 & 181). Do not disturb the DISASSEMBLY large hex head screw (97). If it is removed, loosened, or water is KMBD-540 detected in drain oil, the coil assembly must be retested as KMBD-720 described in the assembly procedure. KMBD-850 2) Drain oil from both ends of booster and remove port fittings (38 KMBD-1600... -
Page 21: Assembly - 540C, 720C, 850C, 1600C, 2000C, 2700C
10) Remove cap screws (62), locks (61), and bearing lock rings (14). 11) Install two screws temporarily to hold end plate to housing. 12) Remove the free end cover (7) rotor shaft socket screws (26 & 69), washer (25), spacer (57), oil slinger (21) (must be pried off on KMBD-850C, 1200C, 1600C, 2000C, 2700C models), roll or dowel pin (68), socket head screws (30) and oil retainer rings (14 &... - Page 22 It is recommended that the gear end rotor shaft bearings be purchased from Tuthill Vacuum Systems, as they are specially ground to locate the rotors with correct end clearance relative to the gear end plate. Do not use standard bearings which have not been flush ground within .001 tolerance.
- Page 23 rest on top of carbon. Gently press with fingers to insure compression is taking place and ring is not hung up for any reason. Slinger Seal Boosters – Slide slinger (238) over shaft. Also install spacer (129) if two piece. 6) Lubricate shafts and press the double row ball bearings (9) onto rotor shafts and into end plate bores.
- Page 24 16) Install oil retainer rings and screws (14 & 30, spacer (57) (model 540C & 720C only), washer (25), screw (29), oil slinger and dowel (21 & 68), and screw (69). NOTE: Oil slinger should always be mounted on lower rotor for horizontal flow units.
-
Page 25: Troubleshooting
22) Install new mechanical seal (76) into seal housing (91), and Drive Shaft Seal press in lip seal (13). Assembly 23) Install mating ring (76) onto drive shaft. 24) Install assembled seal housing. 25) Install free end cover (7) following the same procedure used to install the gear cover. -
Page 26: Parts List 240C & 400C
PARTS LIST FOR KMBD-240C, 400C Mech. Slinger ITEM PART DESCRIPTION Mech. Slinger ITEM PART DESCRIPTION Seal Seal Seal Seal Rotor Spacer Housing Screw, Cap End Plate Spacer Cover, DE Sight Glass Cover, BE Seal , Mech Gear Assy Retainer Brg, Ball... -
Page 27: Parts List 540C & 720C
PARTS LIST FOR KMBD-540C, 720C ITEM PART DESCRIPTION Mech. Slinger ITEM PART DESCRIPTION Mech. Slinger Seal Seal Seal Seal Rotor Pin, Dowel Housing Screw, Cap End Plate Sight Glass Cover, DE Seal, Mech Cover, BE Retainer Gear Assy Plug, Pipe Brg, Ball Adapter, Seal O-ring, Vit... -
Page 28: Parts List 850C, 1200C, 1600C, 2000C, 2700C
PARTS LIST FOR KMBD-850C, 1200C, 1600C, 2000C, 2700C Mech. Slinger ITEM PART DESCRIPTION Mech. Slinger ITEM PART DESCRIPTION Seal Seal Seal Seal Rotor Screw, Cap Housing Pin, Roll End Plate Screw, Cap Cover, DE Sight Glass Cover, BE Seal, Mech Gear Assy Retainer Brg, Ball... -
Page 29: Metric Conversion Chart
METRIC CONVERSIONS MECHANICAL VACUUM BOOSTER TORQUE CHART Part (N-m) Torque Rotor Shaft Flat Hd Screw (3/8-16) 5/16 Cap Screw 1/4 Cap Screw Retainer Button Hd Screw 10-32 3/8 Cap Screw Timing Gear Shaft Nut (540 & 720) Timing Gear Shaft Nut (850,1200,1600,2000 & 2700) 1/2 Cap Screw Rotor 3/4 Structural Bolt Bearing Ret Cap Screw (3/8-16)
