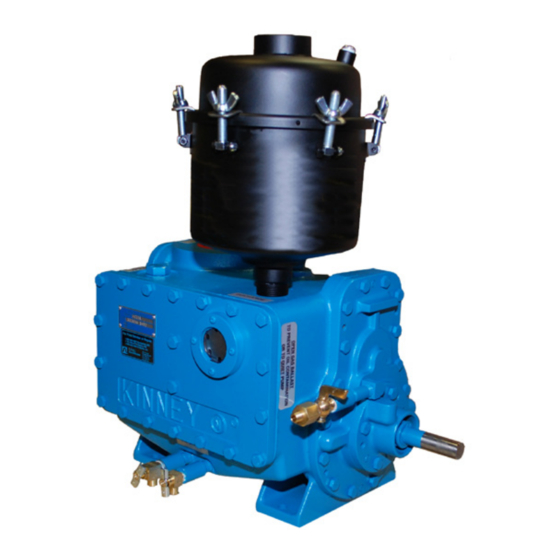

- Page 1 KINNEY ® Two-stage, Rotary Piston Vacuum Pump Manual 1807 0115 ENG WARNING: Do Not Operate Before Reading Manual KC™ SERIES OPERATOR’S MANUAL Models KC15 Tuthill Vacuum & Blower Systems tuthillvacuumblower.com 800.825.6937...
-
Page 2: Safety Precautions And Warnings
WARNING CAUTION DO NOT VALVE OR RESTRICT PUMP DISCHARGE OPENING. USE OIL MIST ELIMINATOR WHEN OPERATING PUMP, ENSURE ADEQUATE VENTILATION WHEN DISCHARGING INDOORS DO NOT OPERATE REFER TO MANUAL SAFETY INSTRUCTIONS. WITHOUT BELT GUARD NOTICE The above safety instruction tags were permanently affixed to your pump prior to shipment. Do not remove, paint over or obscure in any manner. -
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION PAGE SAFETY PRECAUTIONS AND WARNINGS INTRODUCTION OPERATING DATA DESCRIPTION General Pump Components Operating Cycle Sealing and Lubrication Oil Types Specifications Table INSTALLATION Mounting V-Belt Drive Discharge Piping Vacuum Piping Vacuum Gauges Electrical Connections General Filling the Pump with Oil Prestart Checks OPERATION Starting the Pump... -
Page 4: Introduction
INTRODUCTION CONGRATULATIONS on your purchase of a new KINNEY KC™ Two-stage, Rotary Piston Vacuum Pump from Tuthill ® Vacuum & Blower Systems. Please examine the pump for shipping damage, and if any damage is found, report it immediately to the carrier. If the blower is to be installed at a later date make sure it is stored in a clean, dry location and rotated regularly. -
Page 5: Description
KINNEY KC™ SERIES MANUAL 1807-2 ® © 2010, Tuthill Corporation DESCRIPTION GENERAL The KC series of compound high vacuum pumps covered by these instructions consist of two basic pump groups, models: • KC-5 AND KC-8 • KC-15 The pumps within each of the first two groups are identical except for the motor and v-belt drive, which are changed to give different rotational speeds. -
Page 6: Sealing And Lubrication
Other fluids may have to be used for special applications. If varnishing is a problem, high detergent oils may be used. Where low temperature starting is required, other more suitable fluid may be used. Tuthill Vacuum & Blower Systems can recommend fluids to fit most special applications. -
Page 7: Installation
Self-supporting bellows type flexible connectors are recommended and are available from Tuthill Vacuum & Blower Systems. Figure 3. Vacuum Manifolding with Integral Oil Baffles... -
Page 8: Vacuum Gauges
Other types may be too hard and transmit vibration, or too soft and may exert considerable force on the pump and piping when collapsing under atmospheric pressure. Pour a small quantity of oil into the pump suction before connecting the inlet piping to ensure proper lubrication at initial start-up. -
Page 9: Prestart Checks
one-third of the required quantity of oil into the high vacuum stage of the pump. Pour the remaining quantity of oil through the threaded hole from which the oil mist eliminator was removed. Check that the fill plug and gasket are clean and in good condition. -
Page 10: Gas Ballast
GAS BALLAST Gas ballast is an operating mechanism, which is used to prevent the condensation of vapor in a vacuum pump. Vapor present in the gas being pumped can condense during the vacuum pump compression cycle and mix with the vacuum pump oil. -
Page 11: Maintenance
recommended because of the restriction to gas flow. If it is necessary to vent the pump exhaust outside, use ordinary hose of suitable diameter. Do not position the hose so that condensate can collect and cause blockage, such as in a loop or sag in the hose. -
Page 12: Stalling
Change the oil mist eliminator if: 1. Visual inspection shows the oil mist eliminator element to be blocked by foreign matter. 2. Pump back pressure as read at inlet to the oil mist eliminator (or the oil fill plug) reads over 4 to 6 PSIG (275 to 400 mbar g). -
Page 13: Troubleshooting
TROUBLESHOOTING Although KINNEY KC™ rotary piston vacuum pumps are well-designed and manufactured, problems may occur due to ® normal wear and the need for readjustment. The chart below lists symptoms that may occur along with probable causes and remedies. SYMPTOM PROBABLE CAUSE REMEDY Process equipment faulty. -
Page 14: Pump Leaks
To read the pump blank-off pressure: 1. Close off the pump inlet by means of a vacuum valve or short segment of manifolding as shown in Figure 7. 2. Connect a vacuum gauge to the pump side of the valve or manifolding. Position the gauge connection so that it will not become flooded or blocked by splashing pump oil. -
Page 15: Leak Checking Techniques
LEAK CHECKING TECHNIQUES If a leak detector is not available, use the following methods to locate leaks: 1. Cover suspected leaks with a low vapor pressure sealing compound such as Apiezon Q, Duct Seal or Plasticine®. 2. Do this while pumping on the equipment and monitoring the pressure. A sudden decrease in pressure indicates that a leak has been covered. -
Page 16: Shaft Seal
6. Check the guide rods; these should be smooth and not worn in ridges, damaged, or worn in any way that would allow the block to bind as it slides up and down. Check the valve seat in the cylinder; it should be smooth and flush with surrounding area. -
Page 17: Disassembly
DISASSEMBLY These instructions are for complete disassembly. However, the pump should be disassembled only to the extent necessary to repair it. Reference is made to the open head and closed head ends of the cylinder. The open head is the end through which the shaft extends. -
Page 18: Reassembly
Tuthill Vacuum & Blower Systems recommends a general cleaning solvent with flash point exceeding 140° F (60° C), such as solvent-140. Avoid leaving the excessive solvent on the pump parts. As the pump is reassembled, coat the cylinder and internal moving parts lightly with AX Vacuum Oil to facilitate assembly and to ensure that all parts are lubricated when the pump is first started. -
Page 19: Replacement Parts
11. Assemble the discharge valve, valve block, two valve springs, and the two guide rods on the cylinder, replacing them in the same position as they were removed. 12. Replace the cylinder cover and gasket and tighten the securing cap screws. 13. -
Page 20: Parts Lists & Exploded Views
NOTES:... - Page 21 NOTES:...
-
Page 22: Kc-5/Kc-8
EXPLODED VIEW OF KINNEY MODELS KC-5 & KC-8 ® KC-5 KC-8 Pump RPM 1022 Motor HP (kW) 0.33 (0.25) 0.50 (0.37) Oil Capacity, qts. (liters) 0.8 (0.76) Forced Drain w/ open suction, qts. (liters) 0.85 (0.80) Use Loctite 515 vacuum pump sealant for assembly. For best performance, use only AX vacuum pump oil. - Page 23 PARTS LIST FOR KINNEY MODELS KC-5 & KC-8 ® ITEM # DESCRIPTION CYLINDER HEAD, OPEN END HEAD, CLOSED END HOUSING, SHAFT SEAL CAP, CLOSED END COVER, CYLINDER CAM, OPEN END (HEAVY) CAM, CLOSED END PISTON SLIDE PIN SHAFT DISCHARGE VALVE KIT BEARING &...
-
Page 24: Kc-8C
EXPLODED VIEW OF MODEL KC-8C VACUUM PUMP Free Air Displacement , CFM (L/sec) 8 (3.78) Pump Rotative Speed, RPM 1022 Ultimate Pressure, Torr (mbar a) .005 (.007) Motor HP (kW) 0.75 (0.56) Oil Capacity, qts. (liters) 0.8 (0.76) Use Loctite 515 vacuum pump sealant for assembly. For best performance, use only AX vacuum pump oil. -
Page 25: Kc-8C
PARTS LIST FOR KINNEY® MODEL KC-8C BRAKE FLUID REFRIGERATION/ ITEM # DESCRIPTION SERVICE MINERAL OIL CYLINDER HEAD, OPEN END HEAD, CLOSED END HOUSING, SHAFT SEAL FLANGE, SHAFT SEAL SEAT O-RING CAP SCREW, HEX HEAD CAP, CLOSED END COVER, CYLINDER CAM, OPEN END (HEAVY) CAM, CLOSED END PISTON SLIDE PIN... -
Page 26: Kc-15D
EXPLODED VIEW OF MODEL KC-15D VACUUM PUMP Free Air Displacement , CFM (L/sec) 15 (7.08) Pump Rotative Speed, RPM Ultimate Pressure, Torr (mbar a) .005 (.007) Motor HP (kW) 1 (0.75) Oil Capacity, qts. (liters) 3.0 (2.84) After normal oil drain, start pump to force out residual oil. Then, refill both stages with quantities shown above. Use Loctite 515 vacuum pump sealant for assembly. -
Page 27: Kc-15D
PARTS LIST FOR KINNEY® MODEL KC-15D BRAKE FLUID REFRIGERATION/ ITEM # DESCRIPTION SERVICE QTY MINERAL OIL QTY CYLINDER HEAD, OPEN END HEAD, CLOSED END HOUSING, SHAFT SEAL CAP, CLOSED END COVER, CYLINDER CAM, OPEN END (HEAVY) CAM, CLOSED END PISTON SLIDE PIN SHAFT DISCHARGE VALVE KIT... -
Page 28: Kc-15L
EXPLODED VIEW OF MODEL KC-15L VACUUM PUMP Free Air Displacement , CFM (L/sec) 15 (7.08) Pump Rotative Speed, RPM Ultimate Pressure, Torr (mbar a) .005 (.007) Motor HP (kW) 1 (0.75) Oil Capacity, qts. (liters) 3.0 (2.84) After normal oil drain, start pump to force out residual oil. Then, refill both stages with quantities shown above. Use Loctite 515 vacuum pump sealant for assembly. -
Page 29: Kc-15L
PARTS LIST FOR KINNEY® MODEL KC-15L BRAKE FLUID REFRIGERATION/ ITEM # DESCRIPTION SERVICE QTY MINERAL OIL QTY CYLINDER HEAD, OPEN END HEAD, CLOSED END HOUSING, SHAFT SEAL CAP, CLOSED END COVER, CYLINDER CAM, OPEN END (HEAVY) CAM, CLOSED END PISTON SLIDE PIN SHAFT DISCHARGE VALVE KIT... - Page 30 WARRANTY – VACUUM PRODUCTS Subject to the terms and conditions hereinafter set forth and set forth in General Terms of Sale, Tuthill Vacuum & Blower Systems (the Seller) warrants products and parts of its manufacture, when shipped, and its work (including installation and start-up) when performed, will be of good quality and will be free from defects in material and workmanship.
- Page 31 NOTES: IMPORTANT All blowers manufactured by Tuthill Vacuum & Blower Systems are date coded at time of shipment. In order to assure you of the full benefits of the product warranty, please complete, tear out and return the product registration card, or register online at tuthillvacuumblower.com.
- Page 32 For Service & Repair, Technical Support, or Product Sales contact: VACUUM & BLOWER SYSTEMS Tuthill Vacuum & Blower Systems TUTHILL CORPORATION 4840 West Kearney Street Springfield, Missouri USA 65803-8702 O 417.865.8715 800.825.6937 F 417.865.2950 tuthillvacuumblower.com Manual 1807 0115 ENG...
