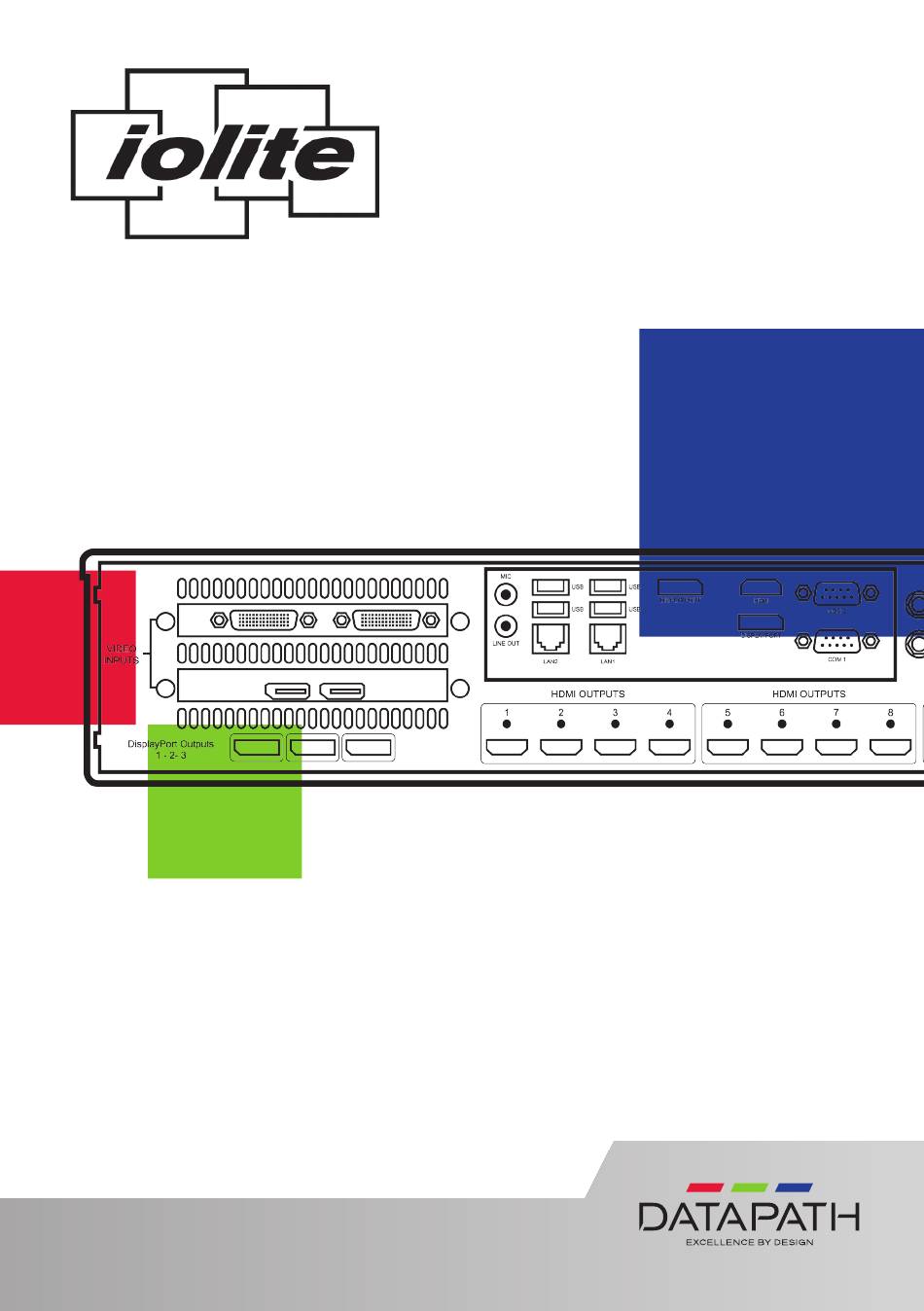

iolite 12i
Quick Start Guide
Thank you for purchasing the Datapath iolite 12i wall controller. The
aim of this document is to quickly guide you through the process of
initial setup. For detailed instructions consult the system User Guide
which can be found on the Documentation Media.
www.datapath.co.uk | sales@datapath.co.uk | +44 (0) 1332 294441
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Datapath iolite 12i
Summary of Contents for Datapath iolite 12i
- Page 1 12i Quick Start Guide Thank you for purchasing the Datapath iolite 12i wall controller. The aim of this document is to quickly guide you through the process of initial setup. For detailed instructions consult the system User Guide which can be found on the Documentation Media.
-
Page 2: Step 1 Keyboard And Mouse
Each Datapath iolite 12i is custom built to order therefore the components, number and type of inputs will differ from system to system. Each iolite 12i is shipped with a printed diagram outlining the specific types of input(s) and where they are located on the rear panel of the system. -
Page 3: Step 2 Connect To A Network (Optional)
STEP 2 CONNECT TO A NETWORK (OPTIONAL) If the iolite 12i is to be used over a network, connect the iolite 12i to a network point (cables not supplied) using one of the LAN connectors on the rear panel. STEP 3 CONNECT VIDEO INPUT SOURCES As each iolite 12i is custom built, the number and type of video inputs will differ from system to system. -
Page 4: Step 5 Power Up The System
DisplayPort 1 or HDMI 1 output connector on the rear of the iolite 12i. DisplayPort 1 HDMI 1 STEP 5 POWER UP THE SYSTEM Connect the power cable into the rear of the iolite 12i (1) then plug into a mains supply. Page 4... - Page 5 Press the on/off button (2) to power up the iolite 12i. There will be a short delay followed by the sound of the internal fan. The fan noise will subside when the system has fully booted. STEP 6 WINDOWS 10 SETUP...
- Page 6 It is recommended that you carefully read the instructions on each page of the wizard. To commence your wall configuration, click on “Start Wizard” . Select the type of displays being used on your wall: • Displays With Bezels – Monitors, TVs and DLP Cubes. •...
- Page 7 What Type of Displays do you Have? Use the “Manufacturer” and “Model” dropdown lists to select the displays you are using for your wall. If the wall consists of different displays, select each one in turn to configure the type of display. The DDCT has an extensive database of displays, however if your display is not contained in the list, you can input the details manually by selecting “Create Custom Display”.
- Page 8 At this stage of the set up you can choose to create another independent display group from the same system, this would be considered if one machine will be used to drive a number of separate video walls. See User Guide for more details. If another display group is not required, click on “Finish”...
- Page 9 Connect each display to the corresponding output connector on the rear of the iolite 12i. If your iolite 12i is connected to a printer, you can print a copy of the wiring diagram using “Print a Wiring Diagram”.
- Page 10 STEP 8 WALLCONTROL 10 Before opening the WallControl 10 Client interface you may need to start the WallControl 10 Server should it not start automatically. The Server icon is displayed in the System Tray. Server icon If the Server fails to start automatically, start the Server by clicking on it in the “All Programs”...
- Page 11 Click on the display wall representation to open the display wall tab (2). Display Wall Sources Display Wall Representation When opened, the display wall tab shows a live representation of the physical wall and the sources available to display on it. To place a source on the video wall, simply click on the required source in the Sources Tab and drag it onto a preferred position on the display wall representation.
- Page 12 The WallControl 10 - Security Administration Client allows Administrators to assign specific users to roles on a wall by wall basis. For example, a user can be assigned a role allowing unrestricted access on one wall but assigned a role on another wall which only allows the opening of pre-determined layouts.
- Page 13 Whilst every effort is made to ensure that the information contained in this Quick Start Guide is correct, Datapath Limited make no representations or warranties with respect to the contents thereof, and do not accept liability for any errors or omis- sions.
- Page 14 NOTES: Page 14...
- Page 15 Page 14...
- Page 16 Datapath France +33 (1)3013 8934 sales-fr@datapath.co.uk Datapath Germany +49 1529 009 0026 sales-de@datapath.co.uk Datapath China +86 187 2111 9063 sales-cn@datapath.co.uk Datapath Japan +81 (0)80 3475 7420 sales-jp@datapath.co.uk Product iolite 12i Quick Start Guide Classification Released Version Number 2.0.0 Page 15...
