Multi Display Controller
QUICK START GUIDE

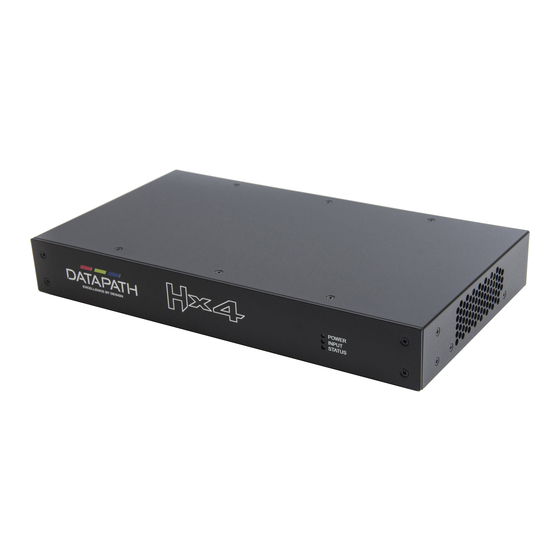

Thank you for purchasing the Datapath Hx4 multi display
controller. The aim of this document is to quickly guide you through
the process of initial setup. The User Guide can be downloaded from:
www.datapath.co.uk
www.datapath.co.uk | sales@datapath.co.uk | +44 (0) 1332 294441

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HX4 and is the answer not in the manual?

Questions and answers

Related Manuals for Datapath HX4

Summary of Contents for Datapath HX4

  • Page 1 Multi Display Controller QUICK START GUIDE Thank you for purchasing the Datapath Hx4 multi display controller. The aim of this document is to quickly guide you through the process of initial setup. The User Guide can be downloaded from: www.datapath.co.uk...
  • Page 2 6 x Rack mount screws If any of the items are missing, please contact Datapath for further instructions. The Hx4 is not supplied with input and output cables therefore please ensure you have the relevant cables to hand to complete your project.

  • Page 3: Step 3 Connect Outputs

    Connect the monitor cables to the monitor output connectors on the rear of the Hx4, you can connect up to 4 displays to a single Hx4 unit. Ensure the cables are inserted correctly, it is recommended that locking connectors are used.

  • Page 4: Step 5 Connecting To A Pc

    Connect Mains cable Switch On When the power is switched on the Hx4 will boot and the LEDs on the front panel will flash for up to 15 seconds. Should the LED’s continue to flash see the trouble- shooting section.
  • Page 5 STEP 6 CONFIGURE VIA A NETWORK The Hx4 has a single ethernet port to allow users to add the device to their network. Ethernet Port Connect the Hx4 to a network using the LAN connector then open Wall Designer and create your display layout.

  • Page 6: Step 7 Wall Designer

    STEP 7 WALL DESIGNER Start | All Programs | Wall Designer | When Wall Designer is opened, the following dialogue is displayed: Operation Modes: Select monitors, inputs and configure devices Quick Tour Dialogue Virtual Canvas Toolbar It is highly recommended that when using Wall Designer for the first time, all users take the Quick Start Tour.

  • Page 7: Step 8 Operation Modes

    Select the monitor sources to be devices by clicking on from the list and the manufacturer from displayed on your Auto-configure Hx4. Status Panel is the drop down list on monitors. Click on Once you are satisfied populated with a...

  • Page 8: Step 9 Multiple Devices

    Where more than four outputs are required, (the example below shows eight) the Auto Config Hx4 function will determine the most logical way to connect all devices. To daisy chain a second Hx4, use HDMI Distribution Amplifier as shown below.

  • Page 9: Troubleshooting

    IP CONTROL PANEL The Hx4 has a control panel that can be accessed via an IP connection, simply type in the IP address of the Hx4 into an Internet browser and a control panel for that particu- lar Hx4 is displayed. The control panel allows you to change properties and settings, manually define cropping regions or open the Wall Designer application.

  • Page 10: Copyright Statement

    Whilst every effort is made to ensure that the information contained in this Quick Start Guide is correct, Datapath Limited make no representations or warranties with respect to the contents thereof, and do not accept liability for any errors or omissions.
  • Page 11 (2) this device must accept any interference received, including interference that may cause undesired operation. EU – Class A Declaration of Conformity Datapath Ltd declares that this Hx4 Display Controller complies with the essential requirements and other relevant provisions of Directives 2014/30/EU, 2014/35/EU and 2011/65/EU.
  • Page 12 Datapath France +33 (1)3013 8934 sales-fr@datapath.co.uk Datapath Germany +49 1529 009 0026 sales-de@datapath.co.uk Datapath China +86 187 2111 9063 sales-cn@datapath.co.uk Datapath Japan +81 (0)80 3475 7420 sales-jp@datapath.co.uk Product Hx4 Display Controller Quick Start Guide Classification Released Version Number 2.0.0...
