4500 Task Chair
4550 Task Chair
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.
If you have trouble understanding these instructions contact your dealer or Winco customer support, (800) 237-3377
Winco assumes no responsibility for damage or injury caused by improper assembly,
1.
READ AND FOLLOW ALL DIRECTIONS.
2.
NEVER stand on chair or INJURY MAY OCCUR.
3.
KEEP HANDS CLEAR of moving parts when adjusting movable parts on chair or INJURY MAY OCCUR.
4.
DO NOT use chair for transporting user in or with ANY type of vehicle or trailer. Winco chairs have not been tested
or approved for use by an occupant in any type of vehicle or trailer.
5.
NEVER leave an infant or child unattended on chair or INJURY MAY OCCUR.
6.
DO NOT allow children to play on or with the chair or INJURY MAY OCCUR.
7.
Periodically, recheck tightness of all nuts, bolts and screws.
8.
USE ONLY WINCO AUTHORIZED REPLACEMENT PARTS.
9.
NEVER EXCEED the recommended weight capacity of 250 lbs. (113 kg)
10. SAVE THESE INSTRUCTIONS for future reference and training.
Tools needed:
•
Phillips-head screwdriver
•
Scissors or box cutter
•
Cardboard shipping container (can be used under chair during assembly to protect upholstery)
•
Powered tools not recommended
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE PROCEEDING WITH ASSEMBLY
1. After checking your product for any shipping damage, chair parts needs to be layed out on cardboard or
protective surface. Remove all packing material and hardware that was secured for shipping.
Assembly

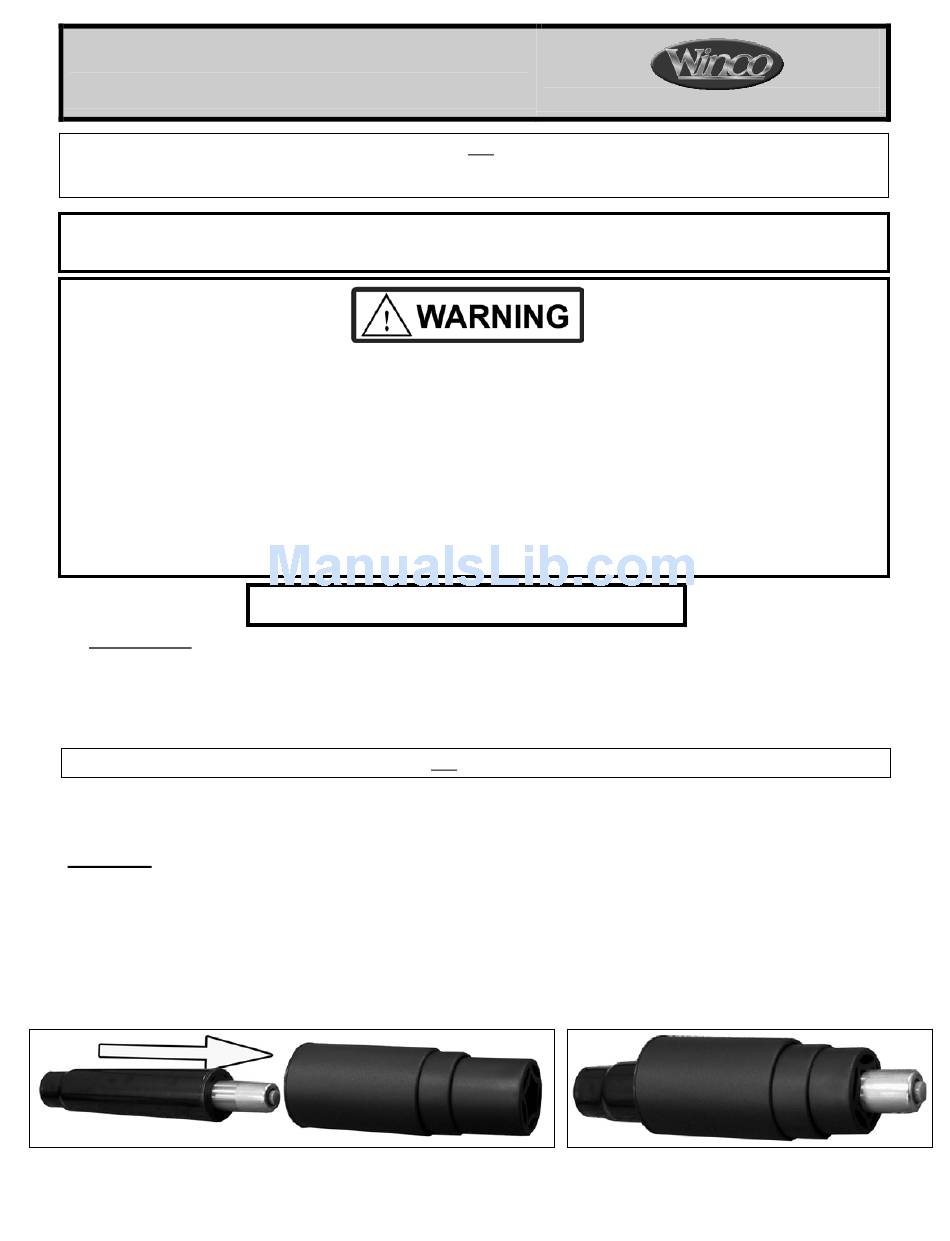

2. Place the Upholstered Seat on a clean, flat surface cushion side down.
3. Use a Phillips-head screwdriver to check that all screws attaching seat hardware are tight and were not
loosened during shipping.
4. Push the chrome stem of the Gas Cylinder into the plastic Cylinder Cover until approx 1-1/2" of chrome
stem protrudes through end of smallest section of Cylinder Cover.
FIG.1
006225
w/ Adj. Armrests
before attempting to use this product; otherwise injury may occur.
installation, use, or maintenance of these products.
4500-4550 Weight Capacity = 250 lbs. (113 kg.)
CUSTOMER INSTRUCTIONS
FIG.2
Rev G Date 04-08-15
Page 1 of 5
DBM
