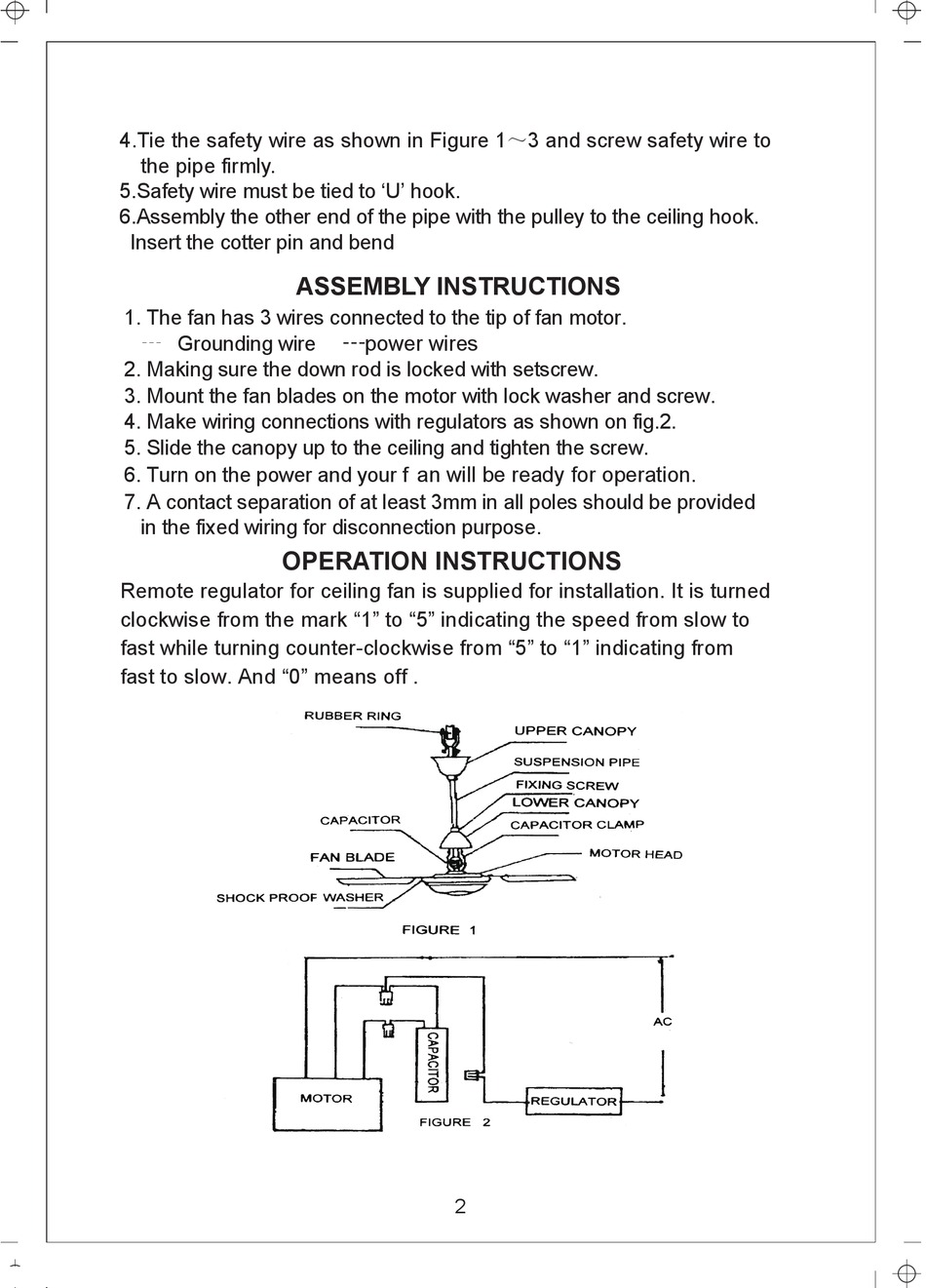

4.Tie the safety wire as shown in Figure 1~3 and screw safety wire to
the pipe firmly.
5.Safety wire must be tied to 'U' hook.
6.Assembly the other end of the pipe with the pulley to the ceiling hook.
Insert the cotter pin and bend
1. The fan has 3 wires connected to the tip of fan motor.
┄ Grounding wire
2. Making sure the down rod is locked with setscrew.
3. Mount the fan blades on the motor with lock washer and screw.
4. Make wiring connections with regulators as shown on fig.2.
5. Slide the canopy up to the ceiling and tighten the screw.
6. Turn on the power and your f an will be ready for operation.
7. A contact separation of at least 3mm in all poles should be provided
in the fixed wiring for disconnection purpose.

OPERATION INSTRUCTIONS

Remote regulator for ceiling fan is supplied for installation. It is turned
clockwise from the mark "1" to "5" indicating the speed from slow to
fast while turning counter-clockwise from "5" to "1" indicating from
fast to slow. And "0" means off .

ASSEMBLY INSTRUCTIONS

┄power wires
2
