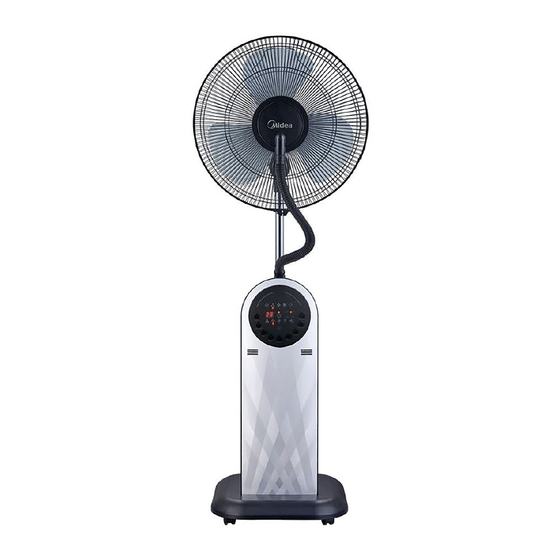

- Page 1 OWNER’S MANUAL 16" MIST FAN MODEL: FS40-13QRA READ AND SAVE THESE INSTRUCTIONS Attention: Pictures in the IM are for reference only.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Caution Read Rules for Safe Operation and Instructions Carefully. WARNING 1. If the supply cord is damaged, it must be replaced by manufac- turer or its service agent or a similarly qualified person in order to avoid a hazard. 2. -
Page 3: Rules For Safe Operation
RULES FOR SAFE OPERATION 1. Never insert fingers, pencils, or any other object through the grill when fan is running. 2. Disconnect fan when moving from one location to another. 3. Be sure fan is on a stable surface when operating to avoid overturning. -
Page 4: Installation Method
PART FIGURE Description Description Spray cap Motor assy Corrugated hose Tightening knob Front guard Host assy Screw (ST3*7.5) Base assy Net clamp Caster (Universal wheel) Blade nut Screw (M5*20) Blade Water tank assy Guard nut Spring clamp Rear guard Drain plug Note: All the pictures in this manual are for explanation purpose only. - Page 5 INSTALLATION METHOD Fig.2 2. Mounting the casters Take out the base and casters from the package, as is shown in Figure 2, and press the casters into the base mounting hole. Fig.3 3. Mounting the base in the host As is shown in Figure 3, put 3 screws (M5 * 20) through the base, and fix the base host in the nuts embedded in the host bottom.
- Page 6 INSTRUCTIONS FOR USE Instructions on Key Functions After power-on, the buzzer will "beep", and the power indicator lights up. Control Panel Remote Control Panel ON/OFF Fan power switch: When the key is pressed, the wind type is in normal mode, low-level running is performed and room temperature is shown, and after the button is pressed again, the fan power supply is disconnected.
- Page 7 INSTRUCTIONS FOR USE Instructions on humidification function • Remove the water tank from the host, and unscrew the water tank cap count- er-clockwise. • Fill the water tank with cold water, tighten the water tank cap and check for leakage. •...
- Page 8 PRECAUTIONS • Before use, please check that the machine has been assembled completely and fixed motor components have been mounted and fastened; before this, do not connect the power supply. • Before turning on the power, check whether the used voltage is the same as the voltage indicated on the machine.
-
Page 9: Maintenance Instruction
MAINTENANCE INSTRUCTION The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed. 1. Before cleaning and assembling, fan must be unplugged. 2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust.
