MODEL CHART
Example IEF -H N -CND -LCD IEF-HN-CND-LCD
Series IEF
Accuracy H
S
Process
N
Connection B
Electrical CND
Housing PG
Connector 10
Options
ACCESSORIES
Model Description
A-IEF-KIT Setup kit (includes setup display, thickness gage and measuring
tape)
A-IEF-DSP Setup display
A-IEF-CBL-50 Plenum rated cable 50 ft (15.2 m)
A-IEF-VLV-BR 1-1/4˝ full port isolation valve brass
A-IEF-VLV-SS 1-1/4˝ full port isolation valve 316SS
A-IEF-INGD Installation alignment kit
A-IEF-PA AC wall adapter
INCLUDED WITH THE FLOWMETER
Carefully unpack the shipping container of your new Series IEF Insertion
Electromagnetic Flow Transmitter and remove the following items:
• (1) Series IEF Insertion Electromagnetic Flow Transmitter
• (1) A-IEF-INGD Installation Alignment Kit:
(1) Alignment Scale
(2) Alignment Rods
(2) Thumbscrews
• (1) 3 mm Allen Wrench (not shown)
RULER
(2 PLACES)
BODY
Alignment scale (2)
RECOMMENDED TOOLS
• (2) 12˝ (300 mm) adjustable wrenches
• (1) 12˝ (300 mm) pipe wrench
SETUP
Selecting Installation Location
1. Although the unit may be installed in any orientation, the ideal mounting position
is on the side of the pipe (2 o'clock or 10 o'clock position) as this generally
minimizes possible air or sediment interference with the Series IEF.
Note: When installing a unit with an integral display select an installation
location that allows for clear viewing of the display and proper earth ground.
Insert the IEF in a pipe via a threaded Tee, Saddle, or welded integrally
reinforced branch connection outlet fitting.
If a Hot-Tap option is required, use a 1-1/4˝ valve kit with proper mounting
hardware available in Model A-IEF-VLV-BR or A-IEF-VLV-SS. A 1˝ (25.4 mm)
hole in the pipe is required for proper installation.
Insertion electromagnetic flow transmitter
High accuracy; 1% of reading
Standard accuracy; 1% FS
1˝ NPT
1˝ BSPT
1/2˝ female NPT
PG 16 gland
PG 16 gland with (2) 10´ (3 m) plenum
rated cables
LCD Integral LCD
COM BACnet or Modbus communication
®
protocol (display selectable)
NIST Multiple point NIST traceable calibration
certificate
FC Factory calibration certificate for 0.5% of
reading at single point
CC Custom configured for specific installation
THUMBSCREW
Thumbscrew (2)
ROD
Rod (2)

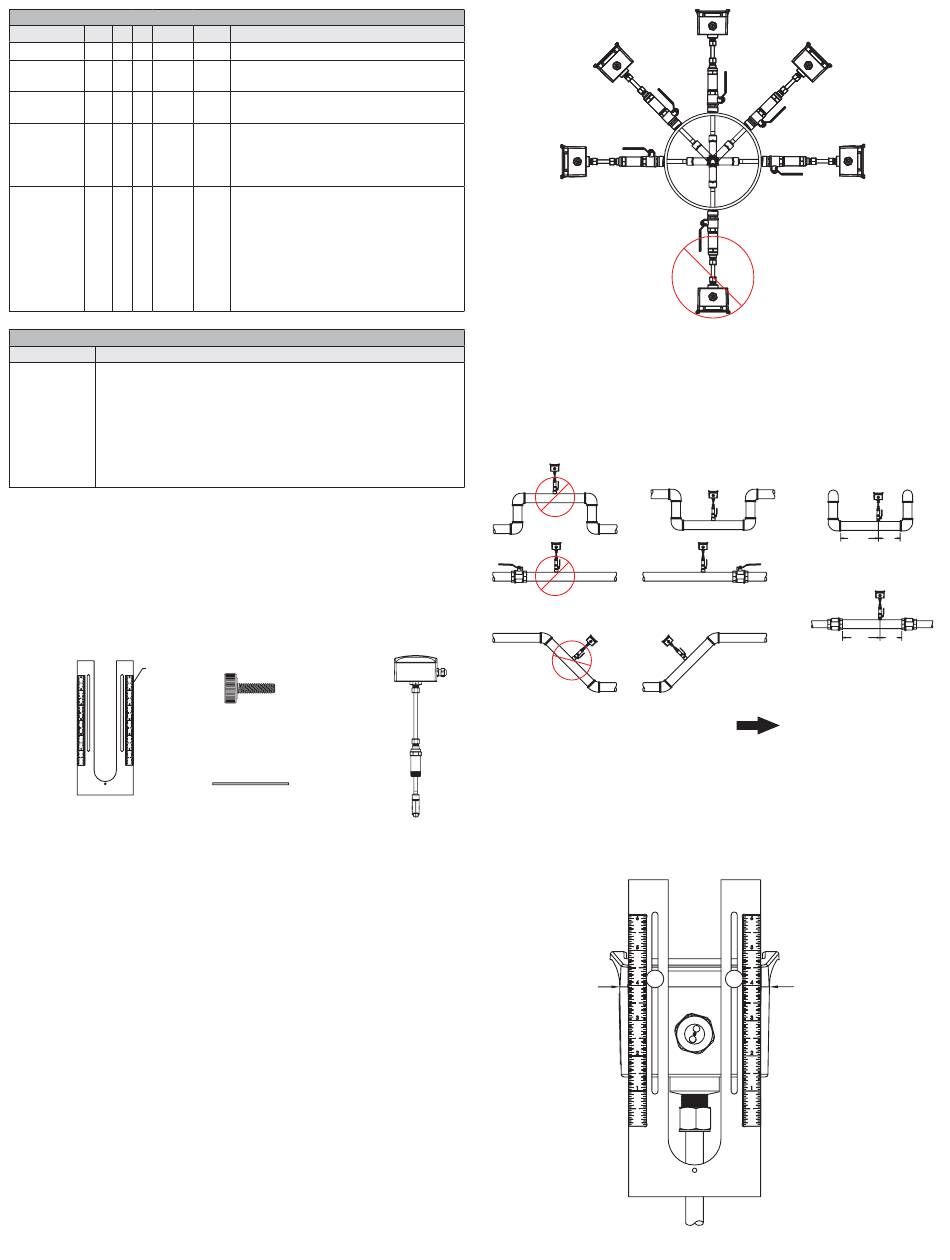

Figure 1
2. Select a location that will minimize flow distortion with adequate upstream and
downstream pipe diameters as displayed. Ideal installation will have a minimum
of 10 pipe diameters upstream relative to the instrument and a minimum distance
of 5 pipe diameters downstream.
INSTALLATION
1. To prepare the meter for installation, mount the provided alignment scale to the
side of the meter with the two provided thumbscrews. The thumbscrews are to be
inserted through the alignment scale slots and into the holes in the side of the lid
Series IEF
as shown in Figure 4, finger tighten only. Be sure to orient the alignment scale as
shown in figure below. Actual scale setting determined in next step.
Figure 2
FLOW DIRECTION
Figure 3
USE LID TO
ENCLOSURE
GAP AS
INDICATOR LINE
Figure 4
5x
20x
20x 5x
